>>>>>型號:560CMU05 串行接口前板 以太網接口的IP地址

【功能描述】

560CMU05 該模塊有一個跳線X1，用于強制以太網接口的IP地址設置為默認值。

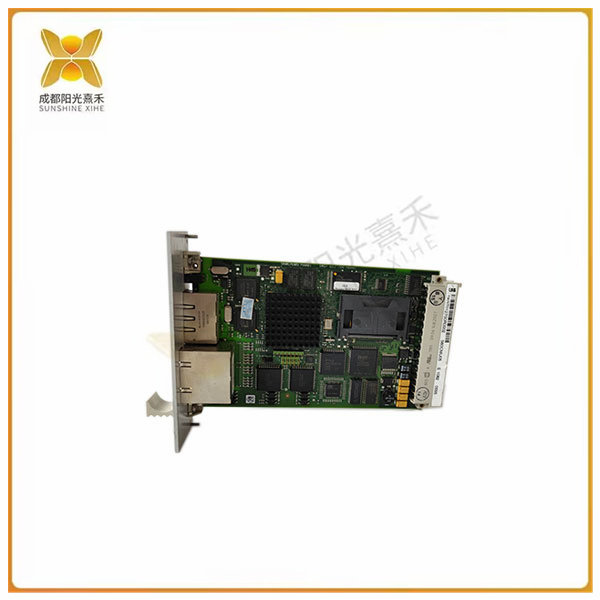

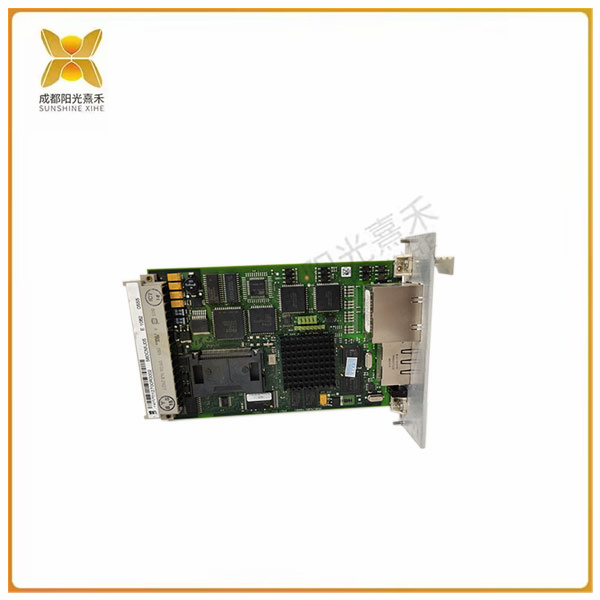

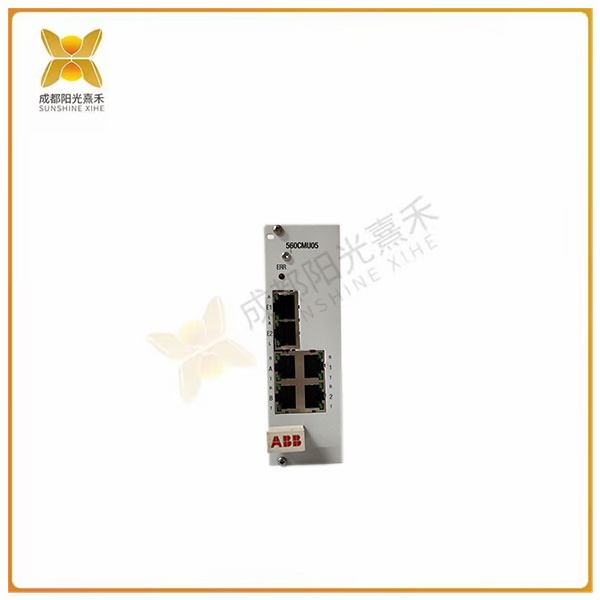

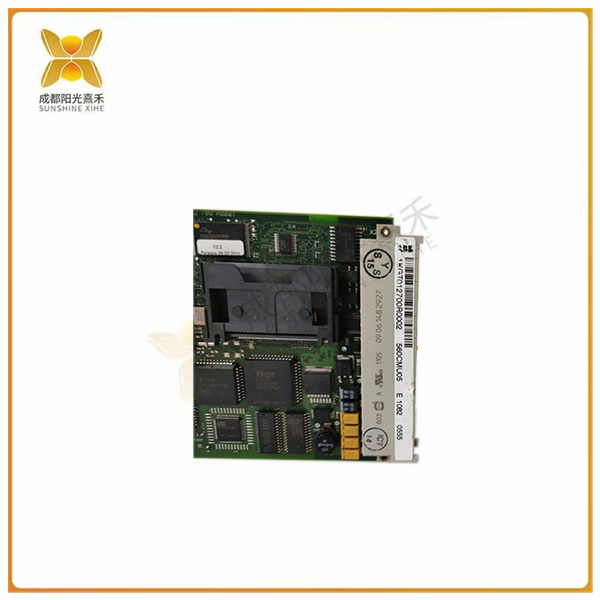

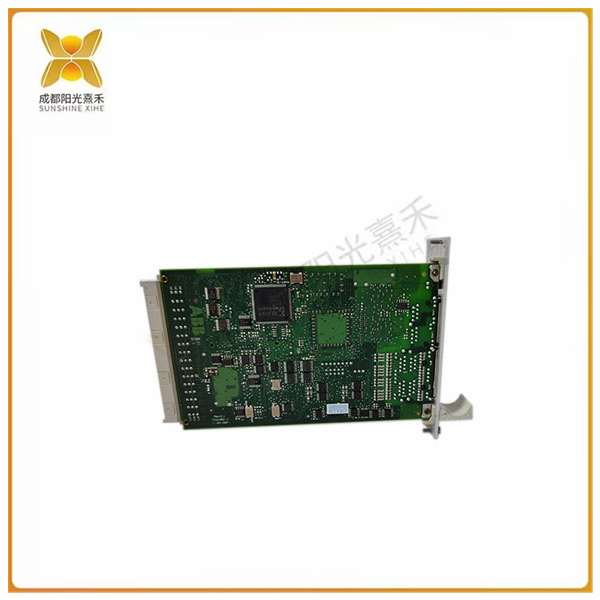

ABB 560CMU05  通信單元

全球商業別名:560CMU05 R0002產品ID:1KGT012700R0002 ABB型號名稱:-目錄描述:用于RTU560的通信單元(CMU)，4個串行端口，2個以太網端口詳細描述:RTU560的中央模塊，帶32位CPU – 4x串行通信接口(RS-232或RS-485)，用于本地/遠程通信- 2x以太網接口(10/100BaseT)協議許可證。 功能和緊湊型閃存不包括在內類別零件和服務電網自動化和通信產品遠程終端單元只要可用附加信息ABB類型名稱:-原產國:德國(DE)海關稅則號:85176200全球商業別名:560CMU05 R0002毛重:0.29 kg發票描述:用于RTU560的通信單元(CMU)，4個串行端口， 2個以太網端口定制:無最低訂購量:1件訂購倍數:1件包裝級別1單位:0紙箱部件類型:新產品名稱:560CMU05 R0002產品凈高度:5.8 cm產品凈長度:14 cm產品凈重量:0.21 kg產品凈寬度:20.3 cm產品類型:僅未定義報價:無替換產品ID(舊):1KGT012700R0001替換產品ID(新):1KGT036300R0002銷售單位

如果重新啟動后跳線設置為1-2，560CMU05 以太網接口E1將使用IP地址192.168.0.1（子網掩碼255.255.255.0，網關192.168.0.20）。

連接到RTU560串行外圍總線（SPB）和

RTU560系統總線是根據DIN 41612通過48極DIN-F插座連接器完成的。

通信接口

在所有接口上，可以使用不同的協議類型?？赡艿?/p>

限制可以在文件中找到：RTU500系列接口和協議（1KGT 150 853）。

 >>>>>型號:560CMU05 串行接口前板 以太網接口的IP地址

【英文介紹】

560CMU05 This module has a jumper X1 that forces the IP address of the Ethernet interface to be set to the default value.

ABB 560CMU05 communication unit

Global business alias :560CMU05 R0002 Product ID:1KGT012700R0002 ABB Model Name :- Catalog Description: Communication Unit (CMU) for RTU560, 4 serial ports, 2 Ethernet ports Details: Central module for RTU560, 2 Ethernet ports With 32-bit CPU - 4x serial communication interface (RS-232 or RS-485) for local/remote communication - 2x Ethernet Interface (10/100BaseT) protocol license. Features and Compact Flash Memory not included Category Parts and Services Power Grid Automation and Communication Products Remote Terminal Units as long as Additional information is available ABB Type Name :- Country of Origin: Germany (DE) Customs Tariff Number :85176200 Global Business Alias :560CMU05 R0002 Gross Weight :0.29 kg Invoice description: Communication unit (CMU) for RTU560, 4 serial ports, Two Ethernet ports Customization: None Minimum order quantity :1 piece Order multiple :1 piece package level 1 unit :0 Carton component type: New product name :560CMU05 R0002 Net height: 5.8cm Net length: 14cm Net weight: 0.21kg Net width :20.3 cm Product type: Only undefined Offer: None Replacement product ID(old):1KGT012700R0001 Replacement product ID(new):1KGT036300R0002 Sales unit

If the jumper is set to 1-2,560 after the reboot, the Ethernet E1 of CMU05 uses the IP address 192.168.0.1 (subnet mask 255.255.255.0, gateway 192.168.0.20).

Connect to the RTU560 Serial Peripheral Bus (SPB) and

The RTU560 system bus is completed according to DIN 41612 via a 48-pole DIN-F socket connector.

Communication interface

On all interfaces, different protocol types can be used. possible

The limitations can be found in the file: RTU500 series interfaces and protocols (1KGT 150 853).
