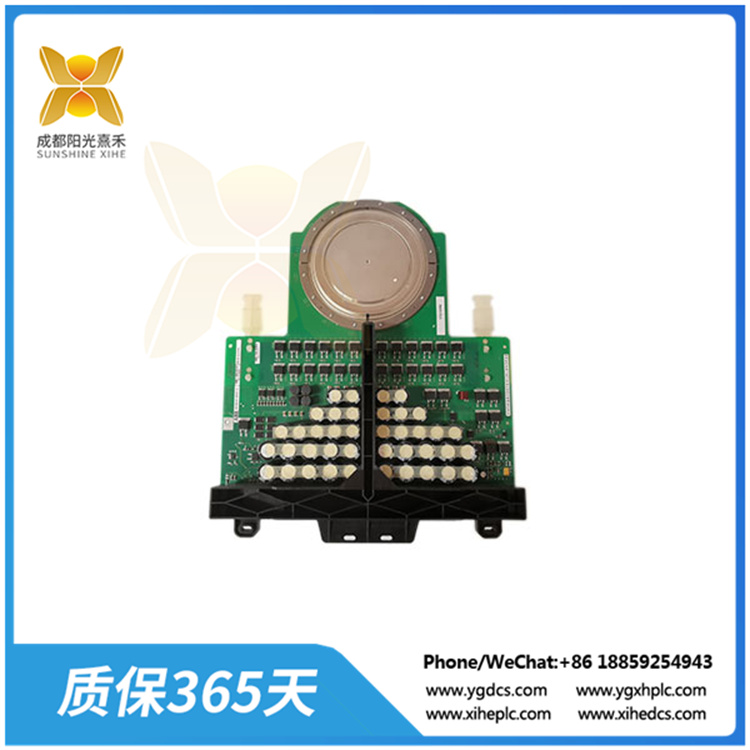

>>>>型號:5SHX2645L0002/3HB012961R0001 閘管開關模塊

【功能描述】

5SHX2645L0002/3HB012961R0001是一款晶閘管開關模塊

其詳細參數和功能如下：

適用電網：適用于415/440V、50Hz的低壓電網。

組件選擇：使用50kVAr的單個或多個組件，包括25kVAr和10kVAr的選項。

電容器單元兼容性：適用于帶或不帶失諧電抗器的電容器單元。

切換特性：在零差分電壓下實現高速切換。

冷卻方式：具有帶強制冷卻選項的自冷機組。

監測功能：能夠監測電源電壓、輸入觸發器和熱故障。

電源需求：TSM不需要外部電源，但可選的冷卻風扇需要230VAC、50Hz的外部電源運行。

報警擴展：使用30VDC、1A或30VDC無電勢觸點的可選報警擴展單元。

連接方式：通過帶安全蓋的銅母線進行牢固連接，并采用尺寸合適的銅質柔性電纜。

觸發方式：來自功率因數控制器或其他的12 VDC-24 VDC觸發信號裝置應連接在“T+和T-”點，用于觸發模塊開啟。同時，可以觸發多個晶閘管開關模塊，以實現更大的kvar步進容量。

此外，該模塊還具備嚙齒動物進入保護、符合極端氣候條件、符合ROHS、無渦流電纜加熱等特性。并且，其IP防護等級為IP20，維護需求較少，具有最低的TCO。

該模塊直接安裝在低壓配電板/面板上，并需要150mm的通風間隙。

>>>>>型號:5SHX2645L0002/3HB012961R0001 閘管開關模塊

【英文介紹】

5 shx2645l0002/3 hb012961r0001 is a thyristor switch module

Its detailed parameters and functions are as follows:

Applicable power grid: Suitable for 415/440V, 50Hz low-voltage power grid.

Component selection: Use single or multiple components of 50kVAr, including options for 25kVAr and 10kVAr.

Capacitor unit compatibility: Suitable for capacitor units with or without a detuned reactor.

Switching characteristics: High-speed switching under zero differential voltage.

Cooling method: self-cooling unit with forced cooling option.

Monitoring function: Ability to monitor power supply voltages, input triggers and thermal failures.

Power requirements: The TSM does not require an external power supply, but the optional cooling fan requires an external power supply of 230VAC, 50Hz to operate.

Alarm expansion: Optional alarm expansion units with 30VDC, 1A or 30VDC non-potential contacts.

Connection method: The copper bus with safety cover is firmly connected, and the appropriate size of the copper flexible cable is used.

Trigger mode: The 12 VC-24 VDC trigger signal device from the power factor controller or other should be connected to the "T+ and T-" points to trigger the module to

open. At the same time, multiple thyristor switching modules can be triggered to achieve greater kvar stepping capacity.

In addition, the module offers rodent entry protection, extreme weather conditions, ROHS compliance, vortex free cable heating and other features. Moreover, its IP

protection level is IP20, with less maintenance requirements and the lowest TCO. The module is mounted directly on the low-voltage switchboard/panel and requires a 150mm ventilation gap.
