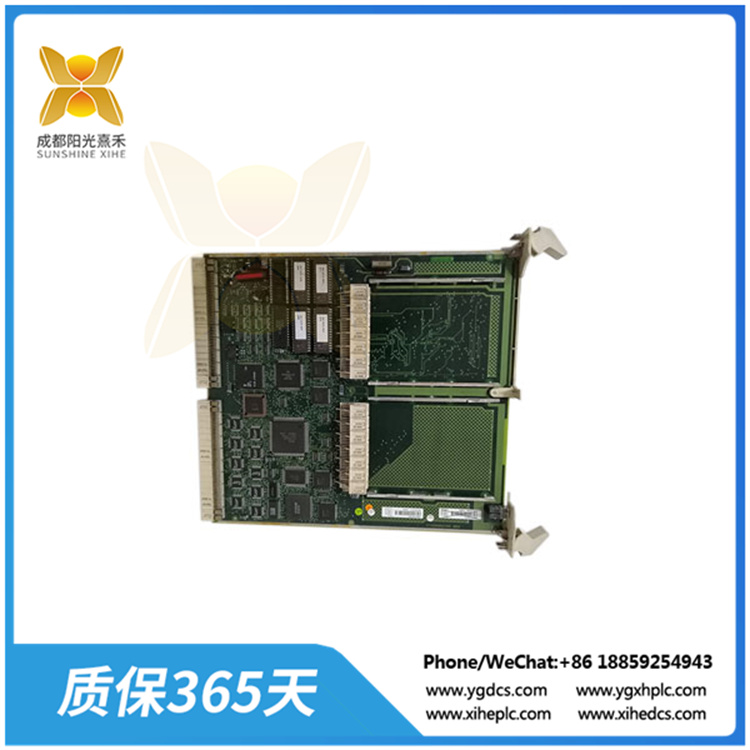

>>>>型號:SC520 3BSE003816R1 控制系統 模擬量輸出功能塊
【功能描述】
SC520 3BSE003816R1是一款集成化的控制系統，可廣泛應用于各種工業自動化控制領域，如電力工業、化工工業、自動化生產線、機器人控制以及環境監測等。
SC520 3BSE003816R1該產品具有一些關鍵的技術參數和特性。其輸入和輸出電壓均為24V DC，最大功率為100W，工作溫度范圍廣泛，從-40℃至70℃。在通信方面，它支持RS485和Ethernet等多種通訊接口。
從物理規格來看，其尺寸為100mm x 100mm x 50mm，重量為500g，外殼采用鋁合金材質，防護等級為IP65。
在功能方面，SC520 3BSE003816R1包括模擬量輸入功能塊和模擬量輸出功能塊，同時含有PV-SP的PID功能塊，實現過程變量和設定值之差的比例-積分-微分運算。此外，該模塊還包含站功能塊，實現人機交流的
功能，將人的設定值送給控制回路，并控制控制回路的接入條件和手/自動切換的條件。
總的來說，SC520 3BSE003816R1是一款功能強大、性能穩定的自動化控制系統模塊，適用于多種工業自動化和控制應用場景。
>>>>型號:SC520 3BSE003816R1 控制系統 模擬量輸出功能塊
【英文介紹】
SC520 3BSE003816R1 is an integrated control system that can be widely used in various industrial automation control fields, such as power industry, chemical industry, automated production line,
robot control and environmental monitoring.
SC520 3BSE003816R1 This product has some key technical parameters and characteristics. Its input and output voltages are 24V DC, the maximum power is 100W, and the operating temperature
range is wide, from -40 ° C to 70 ° C. In terms of communication, it supports multiple communication interfaces such as RS485 and Ethernet. From the physical specifications, its size is 100mm x
100mm x 50mm, the weight is 500g, the shell is made of aluminum alloy material, and the protection level is IP65.
In terms of function, SC520 3BSE003816R1 includes analog input function block and analog output function block, and contains PV-SP PID function block to realize the proportional integral-differential
operation of the difference between process variables and set values. In addition, the module also contains a station function block, which realizes the function of man-machine communication, sends
the set value of the human to the control loop, and controls the access conditions of the control loop and the conditions of hand/automatic switching.
Overall, the SC520 3BSE003816R1 is a powerful and stable automation control system module for a variety of industrial automation and control applications.
