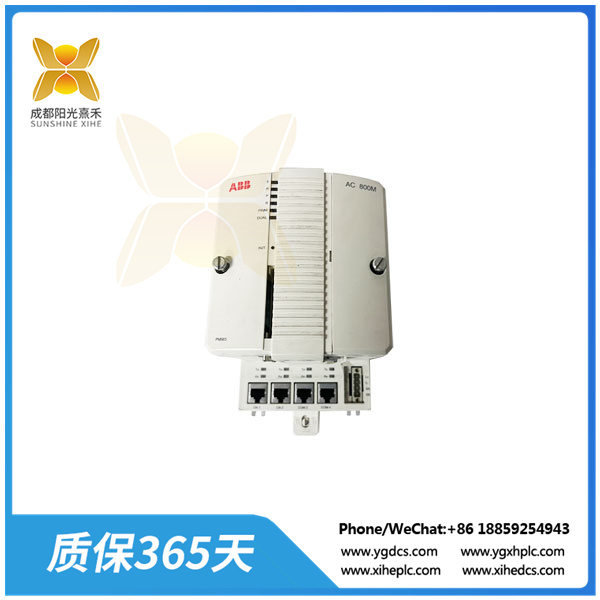

PM510V08 3BSE00B373R1  |  接觸器  |  PM510V08 3BSE00B373R1

      型號：PM510V08 3BSE00B373R1

　　類別：接觸器

　　質保：365天

　　貨期：3-5天/周

　　產品凈厚度/長度：114.3 毫米

　　產品凈高：45 毫米

　　產品凈寬：130.5 毫米

　　產品凈重：0.4 千克

　　定義與工作原理：

　　PM510V08 3BSE00B373R1 接觸器利用電磁、氣動或液動原理，通過控制電路來實現主電路的通斷。

　　當接觸器線圈通電后，產生的磁場會吸引動鐵芯，帶動交流接觸器點動作，實現常開觸點的閉合和常閉觸點的斷開。當線圈斷電時，觸點會恢復原始狀態。

　　分類：

　　PM510V08 3BSE00B373R1 按驅動觸點系統動力來源的不同，可分為電磁式接觸器、氣動式接觸器和液動式接觸器。

　　按滅弧介質的性質，可分為空氣式接觸器、油浸式接觸器和真空接觸器等。

　　根據控制線圈的電壓不同，可分為直流接觸器和交流接觸器。

　　按操作結構，可分為電磁式、液壓式和氣動式等。

　　按動作方式，可分為直動式和轉動式。

　　主要特點：

　　斷電流能力強、動作迅速、操作安全。

　　能頻繁操作和遠距離控制，但不能切斷短路電流，需與熔斷器配合使用。

　　控制對象主要為電動機，也可控制其他電力負載，如電焊機、電爐等。

　　Model: PM510V08 3BSE00B373R1

　　Category: contactors

　　Warranty: 365 days

　　Delivery time: 3-5 days/week

　　Net product thickness/length: 114.3 mm

　　Product height: 45 mm

　　Product width: 130.5 mm

　　Net weight: 0.4kg

　　Definition and working principle:

　　The PM510V08 3BSE00B373R1 contactor uses electromagnetic, pneumatic or hydraulic principle to realize the on-off of the main circuit through the control circuit.

　　When the contactor coil is energized, the magnetic field generated will attract the iron core and drive the AC contactor point action to achieve the closure of normally open contacts and the closure of normally closed contacts. When the coil is powered off, the contact will return to its original state.

　　Categories:

　　PM510V08 3BSE00B373R1 can be divided into electromagnetic contactors, pneumatic contactors and hydraulic contactors according to the different power sources of the drive contact system.

　　According to the nature of the arc extinguishing medium, it can be divided into air contactor, oil immersed contactor and vacuum contactor.

　　According to the voltage of the control coil, it can be divided into DC contactors and AC contactors.

　　According to the operation structure, it can be divided into electromagnetic type, hydraulic type and pneumatic type.

　　According to the mode of action, it can be divided into direct acting and rotating.

　　Main features:

　　Strong current breaking ability, quick action, safe operation.

　　It can be operated frequently and controlled remotely, but it cannot cut off the short circuit current and needs to be used with the fuse.

　　The main control object is the motor, but also can control other electric loads, such as welding machines, electric furnaces, etc.
