3BHE027632R0101   | I/O模塊  |   3HNA023093-001  |   3HAC025562-001/06

　　型號：3BHE027632R0101

　　類別：I/O模塊

　　成色：全新/非全新

　　貨期：現貨

　　質保：一年

　　產品描述

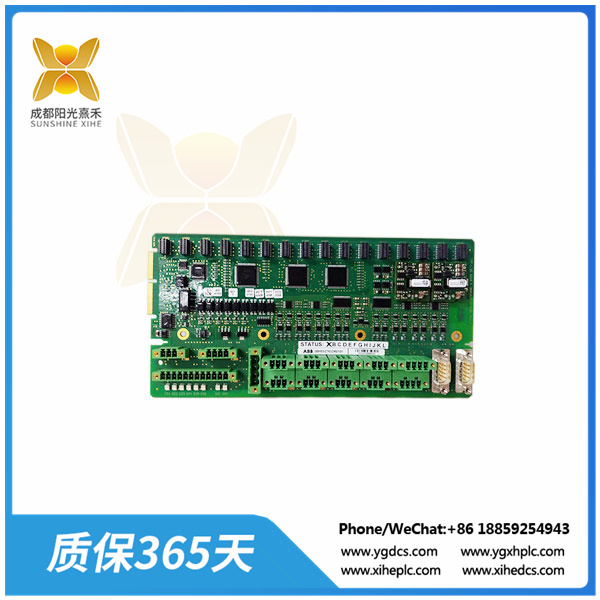

　　3BHE027632R0101 ABBI/O模塊作為ABB機器人控制器與1/0設備之間的橋梁，3BHE027632R0101 ABB I/O模塊負責傳輸和接收控制信號

　　實現機器人與外部設備的交互。

　　特征

　　高速數據傳輸

　　多個輸入和輸出通道

　　與ABB系統的兼容性

　　易于安裝和配置

　　3BHE027632R0101 ABB I/0樘塊是一種多功能、高性能的模塊，可與不同的自動化系統無縫集成。它在傳感器、執行器和控制設備之間提供

　　可靠的數據交換，提高了工業過程的整體效率和牛產力

　　(1)PLC輸入模塊與主電氣設備的連接

　　圖中松下PLC為直流點輸入，即這樣輸入點共用一個共同端子COM,COM端帶DC24V電源，編寫程序時要注意使用的外部設備是常閉觸點還是常開

　　觸點。

　　輸入端電氣原理圖中的停止按鈕SB0使用串在控制線上的常閉觸點進行關斷控制。啟動按鈕SB1，觸點常開。設計中的兩個梯形圖實現了相同的控制

　　功能，但停止信號X0使用不同的觸點類型，因此連接端點的外部停止按鈕觸點類型不同。

　　I/0分配s0-x0、s1-x1，輸出K0-Y0。當外部使用長閉合觸點時，不操作按鈕，輸出Y0正常連接，在PLC控制系統中，外部開關無論啟動或停止

　　般選擇常開型。

　　(2)接近開關與PLC輸入模塊之間的連接在PLC控制系統設計中的布線工作比例很小，但它是編程設計的基礎。為了保證接線工作正確，需要對PLC的

　　輸入輸出電路有一個清晰的認識。

　　Model: 3BHE027632R0101

　　Category: I/O module

　　Finish: New/not new

　　Delivery time: from stock

　　Warranty: One year

　　Product description

　　The 3BHE027632R0101 ABBI/O module acts as a bridge between the ABB robot controller and the 1/0 device, and the 3BHE027632R0101 ABBI/O module is responsible for transmitting and receiving control signals

　　Realize the interaction between the robot and external devices.

　　trait

　　High speed data transmission

　　Multiple input and output channels

　　Compatibility with ABB systems

　　Easy to install and configure

　　The 3BHE027632R0101 ABB I/0 block is a versatile, high-performance module that seamlessly integrates with different automation systems. It is provided between sensors, actuators and control devices

　　Reliable data exchange improves the overall efficiency of industrial processes and cattle productivity

　　(1) Connection between PLC input module and main electrical equipment

　　The Panasonic PLC in the figure is a DC point input, that is, the input point shares a common terminal COM,COM end with DC24V power supply, when writing the program, pay attention to the use of external equipment is normally closed contact or normally open

　　The contact.

　　The stop button SB0 in the input electrical schematic uses normally closed contacts strung along the control line for shutdown control. Start button SB1, contact normally open. The two trapezoids in the design achieve the same control

　　Function, but the stop signal X0 uses a different contact type, so the external stop button contact type of the connecting endpoint is different.

　　I/0 allocates s0-x0, s1-x1, and outputs K0-Y0. When the long closed contact is used externally, the button is not operated, and the output Y0 is connected normally. In the PLC control system, the external switch is started or stopped

　　Normally open type is generally selected.

　　(2) The connection between the proximity switch and the PLC input module has a small wiring work proportion in the design of the PLC control system, but it is the basis of programming design. In order to ensure that the wiring works correctly, it is necessary to check the PLC

　　Have a clear understanding of the input and output circuits.
