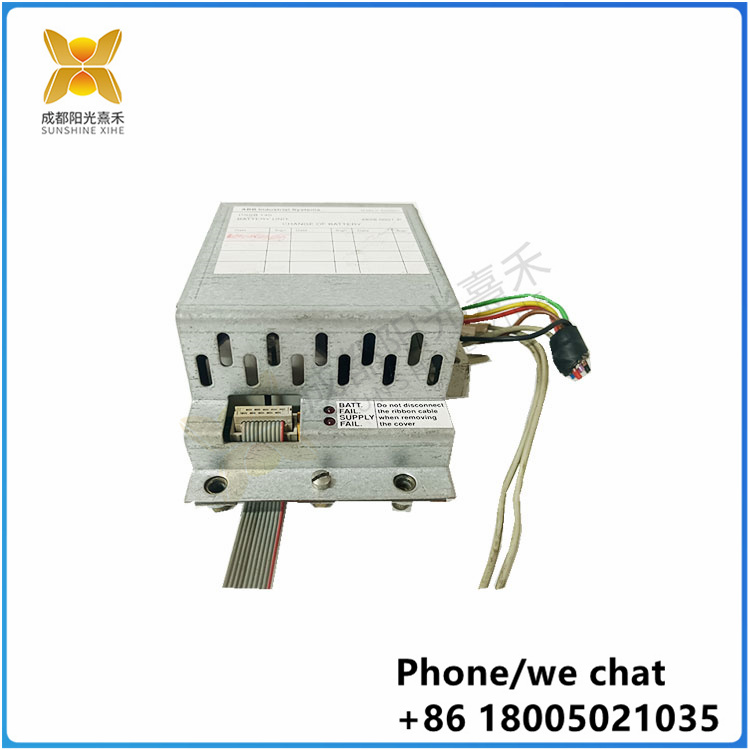

DSSB-01C | IC200GBI001 | 控制單元，|
DSSB-01C 是 ABB 公司生產的一款控制單元，具體信息如下：
產品編號：68300746
產品描述：DSSB-01C PC 板件套裝
技術信息：主控制板用于 DSU 單元
用途：作為工業自動化系統中的控制器，用于精確控制和監控工業過程
輸入電壓：24V DC
輸出電壓：0 ~ 10V DC
控制范圍：0 ~ 100%
通信接口：Modbus RTU
工作溫度：-10℃ ~ +60℃
外形尺寸：100mm × 80mm × 30mm
重量：200g
安裝方式：DIN 導軌安裝
外殼等級：IP20
此外，DSSB-01C 控制單元的電流輸出的出廠設置為 4-20 mA，并且信號可以配置為“主動”或“被動”模式 。
對于無防爆裝置或在 2 區/2 區操作的設備，外部電源供應取決于信號配置模式。
對于在 1 區/1 區操作的設備，電流輸出不能重新配置，并且必須在訂購時指定所需的配置
The DSSB-01C is a control unit produced by ABB. The details are as follows:
Product number: 68300746
Product Description: DSSB-01C PC board set
Technical information: The main control board is used for the DSU unit
Use: As a controller in industrial automation systems, it is used to accurately control and monitor industrial processes
Input voltage: 24V DC
Output voltage: 0 ~ 10V DC
Control range: 0 ~ 100%
Communication interface: Modbus RTU
Operating temperature: -10℃ ~ +60℃
Dimensions: 100mm × 80mm × 30mm
Weight: 200g
Mounting method: DIN rail mounting
Housing grade: IP20
In addition, the current output of the DSSB-01C control unit is factory set to 4-20 mA, and the signal can be configured in either "active" or "passive" mode. For devices that are not explosion-proof or operate in zone 2 /2, the external power supply depends on the signal configuration mode. For devices operating in Zone 1 / Zone 1, the current output cannot be reconfigured and the desired configuration must be specified at the time of ordering
