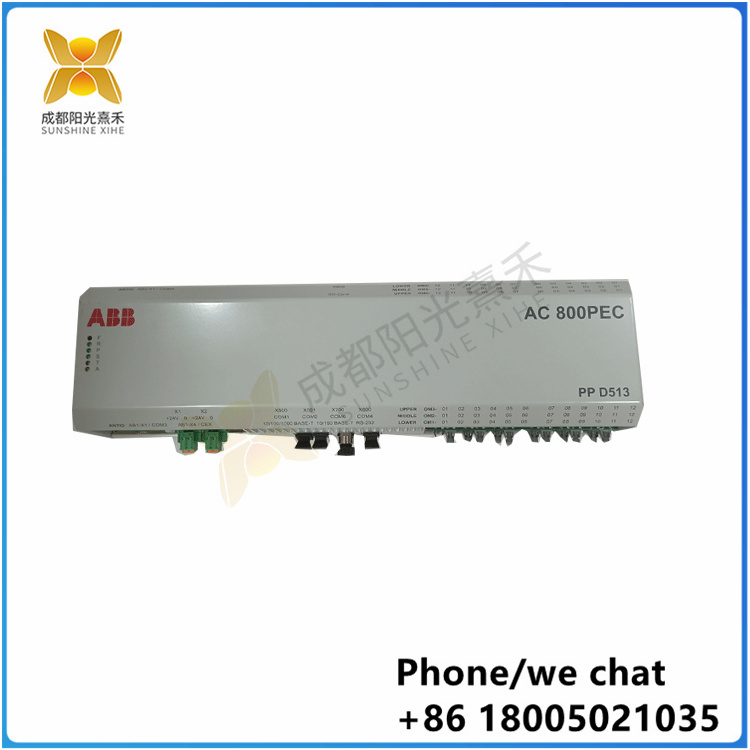

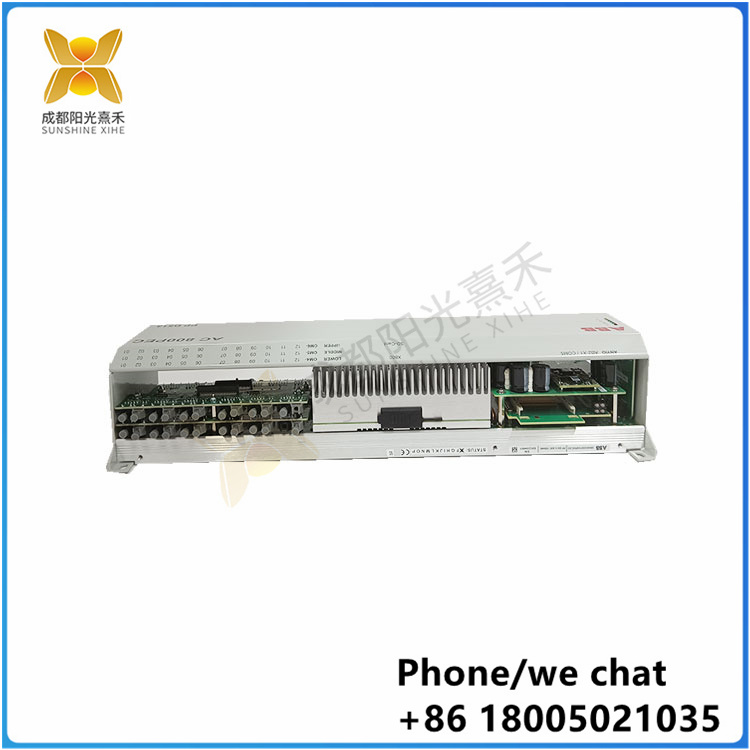

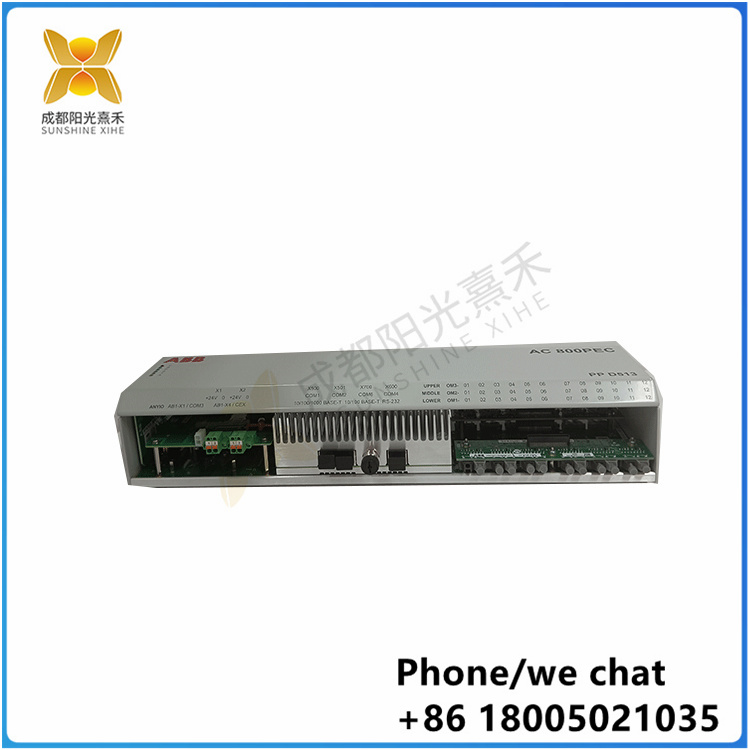

PPD513   3BHE039724R1060 |DS200TCPDG1BEC|單元控制器|

型號與應用：PPD513A-23-111615 是 AC 800PEC 單元控制器的一個型號，適用于各種工業自動化和控制應用 。

AC 800PEC 控制系統：這是一個模塊化的控制器，適用于過程控制，具有多種 I/O 模塊，可以滿足所有功率電子控制要求 。

通信能力：AC 800PEC 控制器支持多種通信協議和接口，包括 Ethernet TCP/IP、Fieldbus (AnyBus-S)、RS-232/RS-422 等 。

存儲與處理：控制器擁有固態 16 MB Flash 存儲器，用于存儲程序和數據，并配備 64 MB SDRAM 緩存，以運行活動程序 。

PPW 和 PPD 電壓互感器：PPD513 可能與 PPW 和 PPD 類型的電壓互感器一起使用，這些互感器設計用于輕便的計量負載，具有緊湊的尺寸和良好的機械、熱和電氣特性 。

硬件配置：AC 800PEC 控制器包含處理器、光學接口、現場總線和與上級控制的接口。它采用 750 MHz RISC 處理器，具有 64 位 IEEE 浮點單元 (FPU)，優化了非?？焖倏刂浦芷诘膽?yīng)用 。

附加接口和模塊：AC 800PEC 系統還包括多種附加接口和模塊，如 PEBB 接口板、測量接口 PECMI、S800 I/O 模塊等，用于直接 IGBT 轉換器控制、電流和電壓測量、慢速過程信號交換等

編程和開發環境：AC 800PEC 支持多種編程和開發環境，包括 Automation Builder、Panel Builder、FPGA Framework 以及 MATLAB/Simulink，適用于不同的應用開發和控制算法 。

通信協議支持：控制器支持多種通信協議，包括 MMS、Modbus TCP Slave、IEC61850、ABB Fast Fiber Optic Link、Drivebus (DDCS) 等，還可以通過 ABB CEX 模塊和 Anybus 模塊擴展更多協議支持

Model and Application: PPD513A-23-111615 is a model of AC 800PEC unit controller for a variety of industrial automation and control applications.

AC800PEC Control System: This is a modular controller for process control with a variety of I/O modules that can meet all power electronic control requirements.

Communication capability: The AC 800PEC controller supports a variety of communication protocols and interfaces, including Ethernet TCP/IP, Fieldbus (AnyBus-S), RS-232/RS-422, etc.

Storage and Processing: The controller has solid-state 16 MB Flash memory for storing programs and data, and is equipped with 64 MB SDRAM cache for running active programs.

PPW and PPD voltage Transformers: PPD513 may be used with PPW and PPD type voltage transformers, which are designed for lightweight metering loads with compact dimensions and good mechanical, thermal and electrical characteristics.

Hardware configuration: The AC800PEC controller contains a processor, optical interface, fieldbus, and interface to the superior control. It uses a 750 MHz RISC processor with a 64-bit IEEE floating point unit (FPU), optimized for applications with very fast control cycles.

Additional interfaces and modules: The AC 800PEC system also includes a variety of additional interfaces and modules, such as PEBB interface board, measuring interface PECMI, S800 I/O module, etc., for direct IGBT converter control, current and voltage measurement, slow process signal exchange, etc

Programming and development environment: AC 800PEC supports a variety of programming and development environments, including Automation Builder, Panel Builder, FPGA Framework, and MATLAB/Simulink, for different application development and control algorithms.

Communication protocol support: The controller supports a variety of communication protocols, including MMS, Modbus TCP Slave, IEC61850, ABB Fast Fiber Optic Link, Drivebus (DDCS), etc. Additional protocol support can also be extended through ABB CEX modules and Anybus modules
