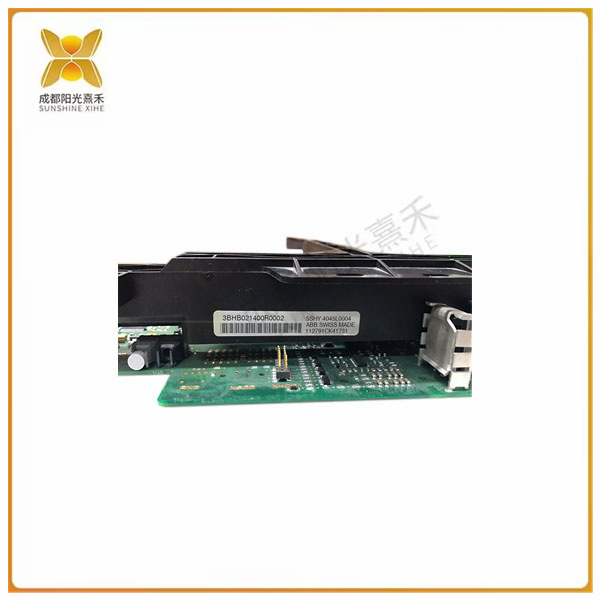

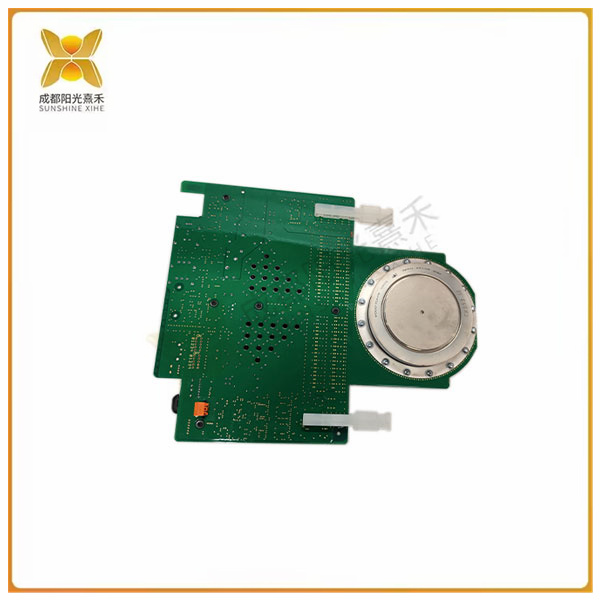

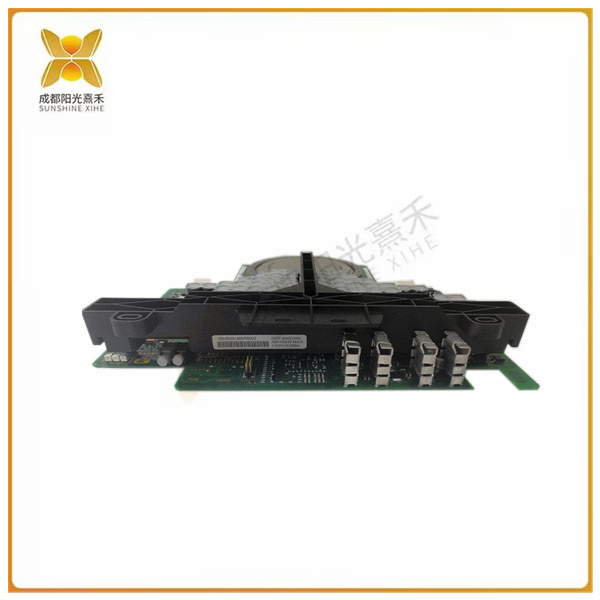

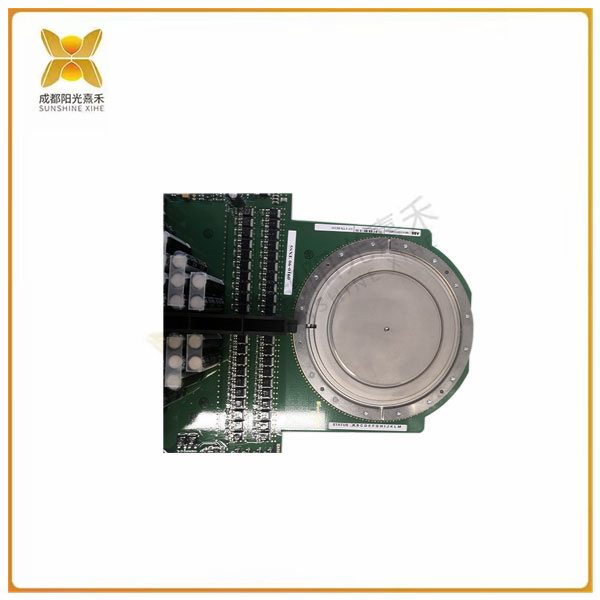

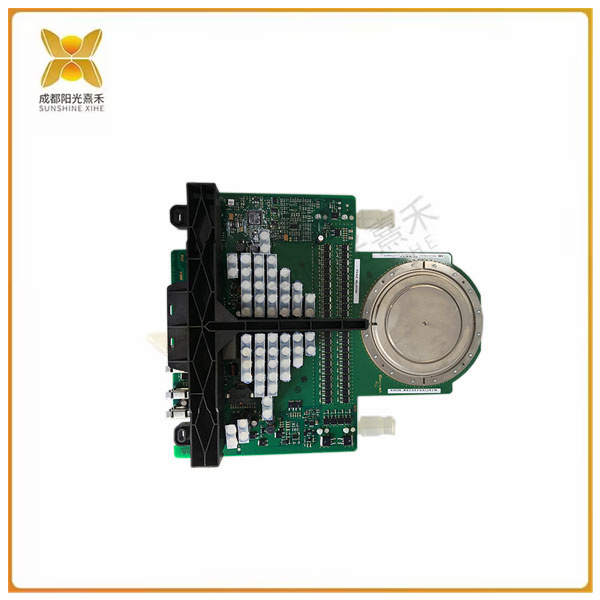

>>>>>型號:5SHY4045L0004 非對稱晶閘管IGCT 穩壓二極管

【功能描述】

一般信息

產品編號：5SHY35L4520型

ABB型號名稱：4500V 4000A

目錄說明：非對稱晶閘管IGCT

其他信息

ABB型號名稱：4500V 4000A

原產國：瑞士 （CH）

海關稅則號：8541300000

框架尺寸：Spare_Parts

毛體積：3.114立方米

毛重：2.9 千克

發票說明：非對稱晶閘管IGCT

1、穩壓二極管的穩壓原理：穩壓二極管的特點就是擊穿后，其兩端的電壓基本保持不變。這樣，當把穩壓管接入電路以后，若由于電源電壓發生波動，或其它原因造成電路中各點電壓變動時，負載兩端的電壓將基本保持不變。

2、故障特點：穩壓二極管的故障主要表開路、短路和穩壓值不穩定。在這3種故障中，前一種故障表現出電源電壓升高；后2種故障表現為電源電壓變低到零伏或輸出不穩定。

>>>>>型號:5SHY4045L0004 非對稱晶閘管IGCT 穩壓二極管

【英文介紹】

General information

Product number: 5SHY35L4520

ABB model name: 4500V 4000A

Catalog Description: Asymmetric thyristor IGCT

Other information

ABB model name: 4500V 4000A

Country of Origin: Switzerland (CH)

Customs Code: 8541300000

Frame size: Spare_Parts

Gross volume: 3.114 cubic meters

Gross weight: 2.9 kg

Invoice description: Asymmetric thyristor IGCT

1, the voltage regulation principle of the voltage regulator diode: the characteristic of the voltage regulator diode is that after breakdown, the voltage at both ends remains basically unchanged. In this way, when the regulator is connected to the circuit, if the power supply voltage fluctuates, or the voltage changes at each point in the circuit for other reasons, the voltage at both ends of the load will remain basically unchanged.

2, fault characteristics: the main failure of the voltage regulator diode is open circuit, short circuit and unstable voltage regulator value. Among these three faults, the former one shows that the power supply voltage increases; The latter two failures are manifested as the supply voltage becomes low to zero volts or the output is unstable.
