>>>>>型號:3500/22M 數據接口模塊 I/O模塊繼電器
【功能描述】
特征
10.5 瓦功耗
USB-B 前面板
10Base-T 或 100Base-TX 以太網，自動感應
100Base-FX 光纖以太網
機架重置按鈕
報警前和報警后數據
LED指示燈
I/O模塊繼電器

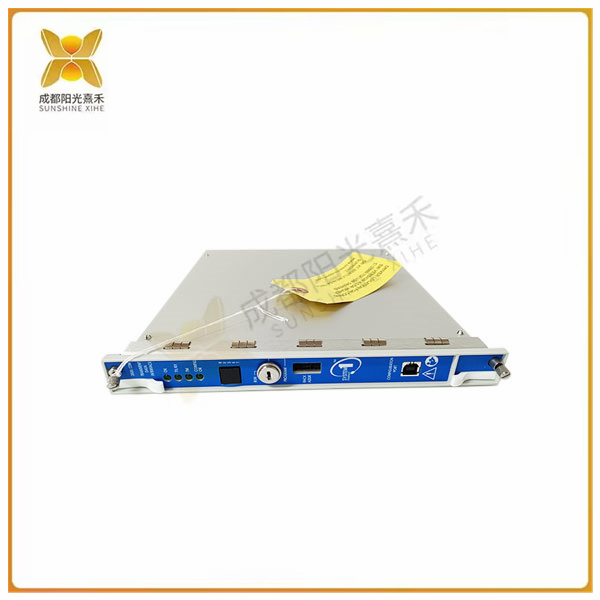

本特利內華達 3500/22M 數據接口模塊是 3500 監控系統與兼容系統之間的接口 軟件（系統 1* 狀態監測和診斷軟件以及 3500 系統配置軟件）。這 TDI 將 3500/20 機架接口模塊 （RIM） 的功能與通信的數據采集功能相結合 TDXnet 等處理器。
TDI 位于 3500 機架電源附近的插槽中。它與 M 系列顯示器（3500/40M、 3500/42M等）持續收集穩態和瞬態動態（波形）數據，并將這些數據傳遞到 與主機軟件的以太網鏈路。有關詳細信息，請參閱本文檔末尾的“兼容性”部分 信息。
靜態數據捕獲功能是 TDI 的標準配置。但是，使用可選的通道啟用磁盤將允許 TDI 也用于捕獲動態和高分辨率瞬態數據。TDI 包含通信處理器 在 3500 機架內運行。
盡管 TDI 提供了整個機架通用的某些功能，但它不是關鍵監控路徑和 對整個監控系統的正常、正常運行沒有影響，對機械進行自動保護。每 3500 機架需要一個 TDI 或 RIM，它們始終占用插槽 1（靠近電源）。
>>>>>型號:3500/22M 數據接口模塊 I/O模塊繼電器
【英文介紹】
trait
10.5W power consumption
USB-B front panel
10Base-T or 100Base-TX Ethernet, automatic sensing
100Base-FX Fiber Ethernet
Rack reset button
Pre - and post-alarm data
LED indicator
I/O module relay
The Bentley Nevada 3500/22M Data Interface Module is the interface software between the 3500 monitoring system and compatible systems (System 1* condition monitoring and diagnostic software and 3500 system configuration software). This TDI combines the capabilities of 3500/20 Rack Interface Module (RIM) with the data acquisition capabilities of communication processors such as TDXnet.
The TDI is located in a slot near the power supply in the rack 3500. It continuously collects steady-state and transient dynamic (waveform) data with M-series displays (3500/40M, 3500/42M, etc.) and passes this data to the Ethernet link with the host software. For more information, see the "Compatibility" section at the end of this document.
Static data capture is standard in TDI. However, enabling the disk with an optional channel will allow TDI to also be used to capture dynamic and high-resolution transient data. The TDI contains a communication processor running in 3500 racks.
Although TDI provides certain functions common to the entire rack, it is not a critical monitoring path and has no impact on the normal and normal operation of the entire monitoring system, which automatically protects the machinery. One TDI or RIM is required for every 3500 racks, and they always occupy slot 1 (near the power supply).
