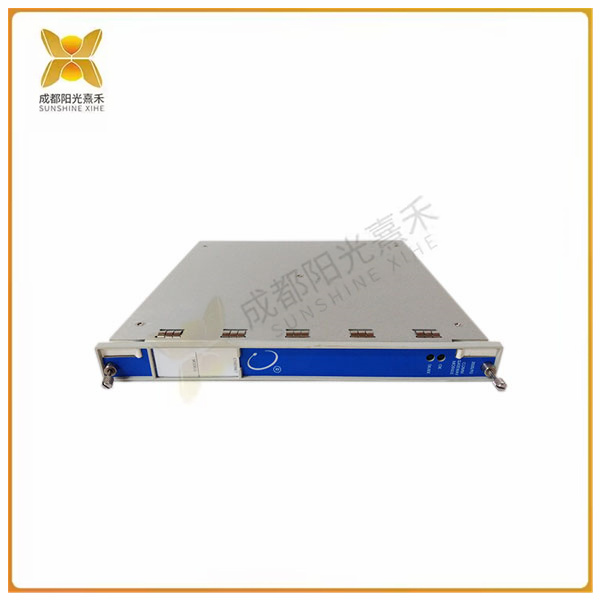

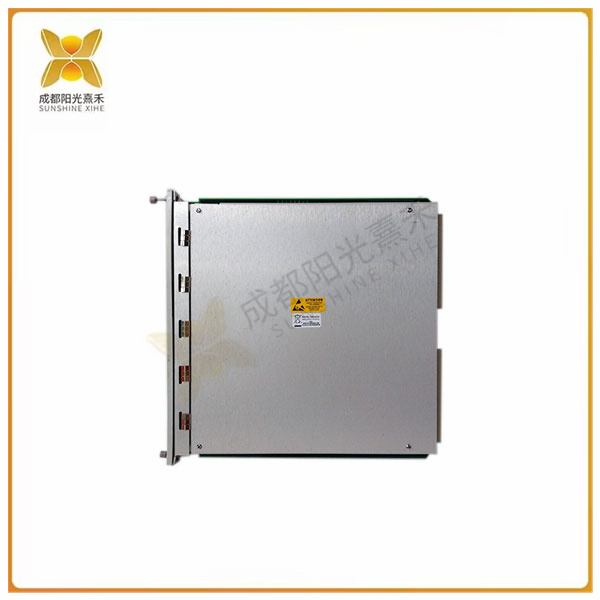

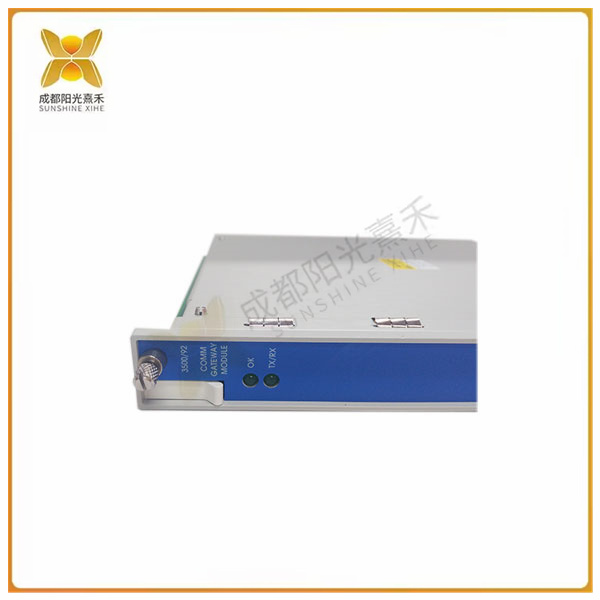

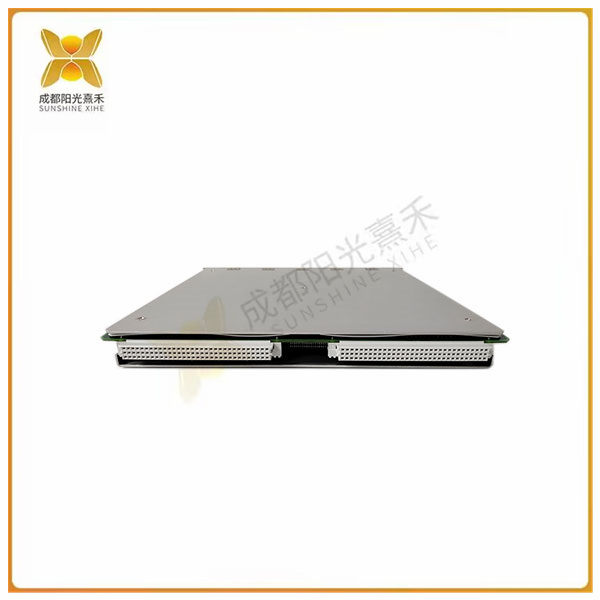

>>>>>型號:3500/92 通信網關模塊 集成過程控制

【功能描述】

描述

3500/92通信網關模塊提供了廣泛的

所有機架監控值和狀態的通信能力

集成過程控制和其他自動化系統使用兩者

以太網TCP/IP和串行(RS232/RS422/RS485)通信能力。它

也允許以太網通信與3500機架配置軟件

和數據采集軟件。

支持的協議包括:

Modicon?Modbus?協議(通過串行通信)

?Modbus/TCP協議(用于TCP/IP的串行Modbus的變體)

以太網通信)

?專有的Bently Nevada協議(用于與3500機架通信)

配置和數據采集軟件包)

3500/92的以太網連接是10BASE-T星的RJ45連接

配置以太網網絡。

3500/92支持通信接口、通信協議、

和其他功能從原來的3500/90除了主

value Modbus寄存器。3500/92現在有一個可配置的Modbus寄存器

控件所處理的相同功能

primary value Modbus寄存器。

>>>>>型號:3500/92 通信網關模塊 集成過程控制

【英文介紹】

Description

The 3500/92 Communication Gateway module offers a wide range of

The ability for all racks to monitor values and status communication

Integrated process control and other automation systems use both

Ethernet TCP/IP and serial (RS232/RS422/RS485) communication capabilities. it

Also allows Ethernet communication with 3500 rack configuration software

And data acquisition software.

Supported protocols include:

Modicon?Modbus? protocol (via serial communication)

?Modbus/TCP protocol (variant of serial Modbus for TCP/IP)

Ethernet communication)

? Proprietary Bently Nevada protocol (for communication with 3500 racks)

Configuration and Data acquisition packages)

The 3500/92 Ethernet connection is the RJ45 connection for the 10BASE-T star

Configure an Ethernet network.

3500/92 Support communication interface, communication protocol,

And other features from the original 3500/90 in addition to Master

value Modbus register. 3500/92 now has a configurable Modbus register

Control handles the same functionality

primary value Modbus register.
