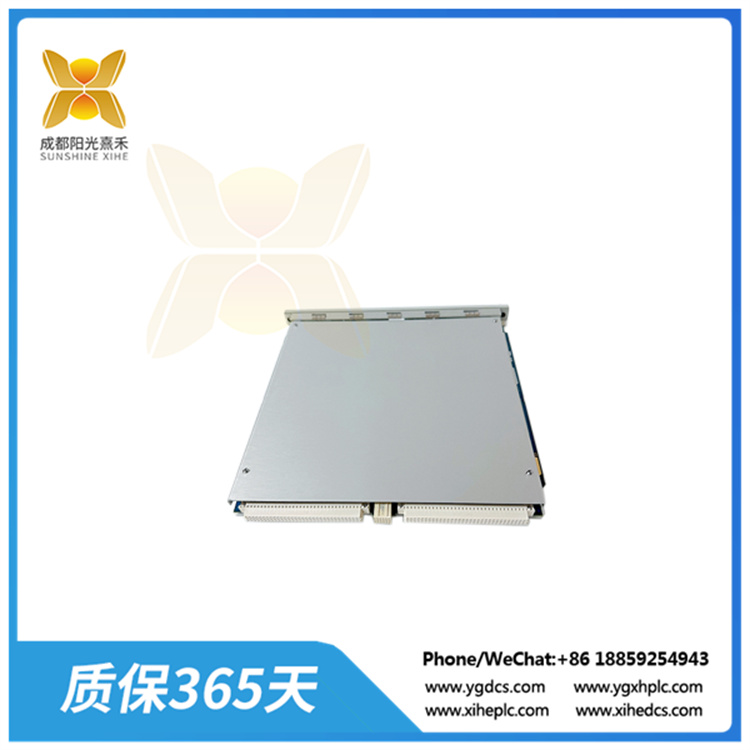

>>>型號:288055-01 瞬態數據接口（TDI）模塊 用于工業自動化和控制系統

【功能描述】

288055-01 瞬態數據接口（TDI）模塊是一款高性能的數據采集和監控設備，專為與3500監控系統配合使用而設計。該模塊結合了3500/20框架接口模塊（RIM）的功能，并具有通信數據收集功能，如TDXnet等處理器所具備的功能。

在3500機架中，TDI位于與電源相鄰的插槽中，主要用于持續收集穩態和瞬態動態（波形）數據，并通過以太網鏈路將這些數據傳輸?shù)街鳈C(jī)軟件。這種能力使得TDI成為設備狀態監控和故障診斷的關鍵工具。此外，TDI不僅具備傳統的

靜態數據收集功能，還可以使用可選的通道啟用磁盤來記錄動態、高分辨率的瞬態數據，從而提供更詳細和深入的設備運行信息。

該模塊的特點還包括高精度的振動監測功能，可以實時監測設備的振動情況，包括振動速度、加速度和位移等參數。通過采集和分析這些振動數據，模塊能夠識別和診斷機械故障，如軸承磨損、不平衡、松動等問題，并及時發出警報

或觸發維護操作。此外，其高可靠性和穩定性確保了工業環境中的長期運行，有效監測和保護關鍵設備的運行狀態。

在配置方面，該模塊提供了多種選項以滿足不同應用需求，如輸入通道數、采樣率和報警設置等。同時，它支持與其他監控系統或控制系統進行數據交互和集成，從而實現了更全面的設備狀態監控和管理。

總的來說，288055-01 瞬態數據接口（TDI）模塊是一款功能強大、性能穩定的設備狀態監測工具，廣泛應用于各種工業領域，為設備的安全運行和高效生產提供了有力保障。

>>>>型號:288055-01 瞬態數據接口（TDI）模塊 用于工業自動化和控制系統

【英文介紹】

The 288055-01 Transient Data Interface (TDI) module is a high-performance data acquisition and monitoring device designed for use with 3500 monitoring systems. The module combines the functionality of a 3500/20

Framework Interface Module (RIM) with communication data collection capabilities such as those found in processors such as TDXnet.

In 3500 racks, the TDI is located in a slot adjacent to the power supply and is primarily used to continuously collect steady-state and transient dynamic (waveform) data and transfer this data to the host software over an

 Ethernet link. This capability makes TDI a critical tool for device condition monitoring and fault diagnosis. In addition, TDI not only has traditional static data collection capabilities, but also enables the use of optional

 channel enabled disks to record dynamic, high-resolution transient data, providing more detailed and in-depth information about device operation.

The module also features a high-precision vibration monitoring function, which can monitor the vibration of the equipment in real time, including vibration speed, acceleration and displacement parameters. By collecting

 and analyzing these vibration data, the module is able to identify and diagnose mechanical failures, such as bearing wear, unbalance, loosening and other issues, and issue timely alarms or trigger maintenance operations.

In addition, its high reliability and stability ensure long-term operation in industrial environments, effectively monitoring and protecting the operating status of critical equipment.

In terms of configuration, the module provides a variety of options to meet different application requirements, such as the number of input channels, sampling rate and alarm Settings. At the same time, it supports data

interaction and integration with other monitoring systems or control systems, thus achieving a more comprehensive monitoring and management of equipment status.

Overall, the 288055-01 Transient Data Interface (TDI) module is a powerful and stable equipment condition monitoring tool, which is widely used in various industrial fields, and provides a strong guarantee for the safe

operation and efficient production of equipment.
