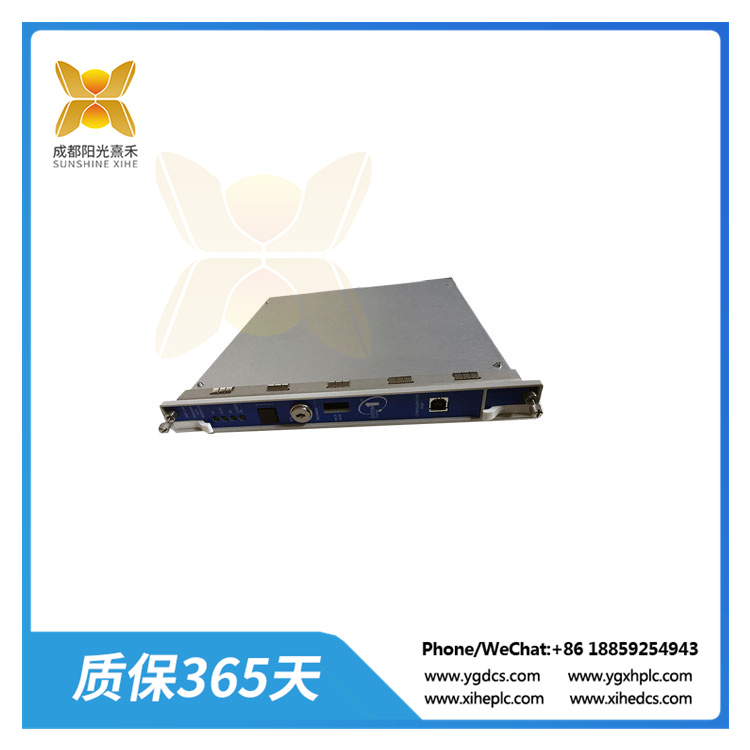

>>>型號:3500/22-01-01-00 瞬態數據接口模塊（TDI） 用于工業自動化和控制系統

【功能描述】

3500/22-01-01-00 3500/22是一款瞬態數據接口模塊（TDI），主要用于3500監測系統與兼容軟件之間的接口。這款模塊在振動監測和機械健康監測系統中發揮著關鍵作用，特別是在工業環境中。

3500/22-01-01-00該模塊具有10.5瓦的功耗，并配備了USB-B前面板，方便用戶進行連接和操作。在通信方面，它支持10Base-T或100Base-TX以太網（自適應）以及100Base-FX光纖以太網，為

用戶提供了靈活的網絡連接選擇。此外，該模塊還配備了機架復位按鈕，方便用戶在必要時進行快速復位操作。

在數據記錄方面，3500/22-01-01-00模塊具有報警前和報警后數據記錄功能，能夠捕獲設備在異常狀態前后的關鍵數據，為故障分析和診斷提供重要依據。同時，LED指示燈能夠直觀地顯示模塊的

工作狀態和故障信息，幫助用戶快速定位問題。

作為一款瞬態數據接口模塊，3500/22-01-01-00還具備捕獲和存儲瞬時發生事件的能力。這對于分析機械系統的瞬態行為非常有用，特別是在需要了解設備在極端或異常條件下的性能時。

通過與3500監測系統的連接，該模塊可以實時提供機械運行狀態數據，使操作人員能夠及時了解設備的運行狀況，并在必要時采取相應措施。這種實時監控功能對于確保設備的穩定運行和防止?jié)撛诠收暇哂兄匾饬x。

綜上所述，3500/22-01-01-00 3500/22瞬態數據接口模塊是一款功能強大、性能穩定的接口設備，適用于各種工業環境中的振動監測和機械健康監測系統。通過其高效的數據傳輸和記錄功能，用戶能夠更好地了解

設備的運行狀態和性能表現，從而確保生產過程的連續性和穩定性。

>>>>型號:   3500/22-01-01-00 瞬態數據接口模塊（TDI） 用于工業自動化和控制系統

【英文介紹】

3500/22-01-01-00 3500/22 is a transient Data interface module (TDI) designed for the interface between 3500 monitoring systems and compatible software. This module plays a key role in vibration monitoring and

mechanical health monitoring systems, especially in industrial environments.

3500/22-01-01-00 The module has a power consumption of 10.5 watts and is equipped with a USB-B front panel for easy connection and operation. In terms of communication, it supports 10Base-T or 100Base-TX

Ethernet (adaptive) as well as 100Base-FX fiber Ethernet, providing users with flexible network connection options. In addition, the module is equipped with a rack reset button for quick reset operations if necessary.

In terms of data recording, the 3500/22-01-01-00 module has the function of pre-alarm and post-alarm data recording, which can capture the key data of the equipment before and after the abnormal state, providing

an important basis for fault analysis and diagnosis. At the same time, the LED indicator can visually display the working status and fault information of the module to help users quickly locate problems.

As a transient data interface module, 3500/22-01-01-00 also has the ability to capture and store events that occur instantaneously. This is useful for analyzing the transient behavior of mechanical systems, especially

when it is necessary to understand the performance of equipment under extreme or abnormal conditions.

Through the connection with the 3500 monitoring system, the module can provide real-time mechanical operating status data, so that operators can timely understand the operating status of the equipment, and take

appropriate measures when necessary. This real-time monitoring function is important to ensure the stable operation of the equipment and prevent potential failures.

To sum up, the 3500/22-01-01-00 3500/22 transient Data interface module is a powerful and stable interface device suitable for vibration monitoring and mechanical health monitoring systems in various industrial

environments. Through its efficient data transmission and recording function, users can better understand the operating status and performance of the equipment, thus ensuring the continuity and stability of the production process.
