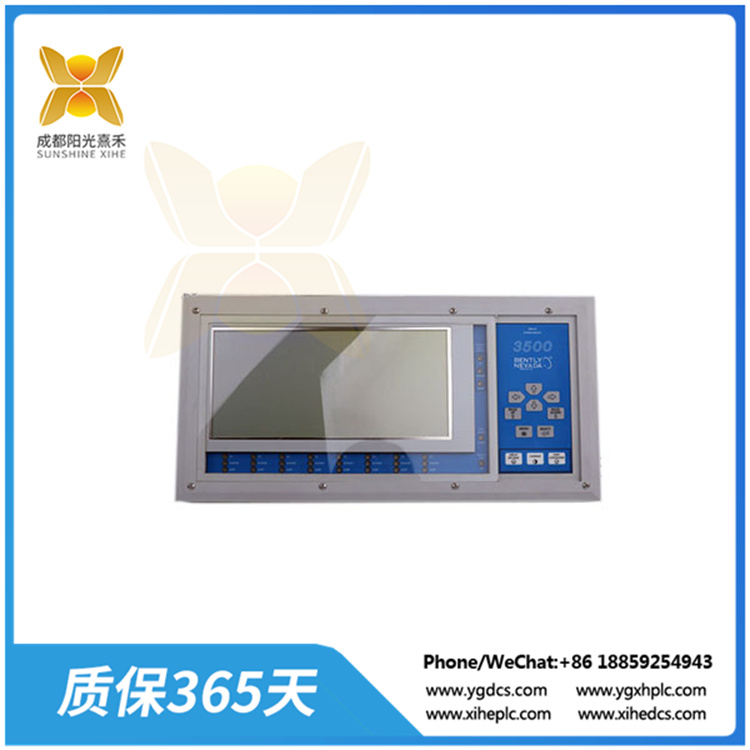

>>>型號:3500/93 135799-01 高性能顯示接口模塊 用于工業自動化和控制系統

【功能描述】

3500/93 135799-01 顯示接口模塊是一款高性能顯示接口模塊，專為3500機械保護系統而設計。該模塊主要用于提供本地或遠程的視覺指示，以便實時查看3500機架中存儲的所有機械保護系統信息。

3500/93 135799-01這款顯示接口模塊符合美國石油學會標準670，確保了其在石油和其他工業應用中的高可靠性和穩定性。通過該模塊，用戶可以方便地訪問和監視所有通道、監視器、繼電器模塊、鍵相模塊或轉速計模塊的數據，

這些數據都被系統地列在系統事件列表中，便于用戶進行分析和診斷。

3500機架配置軟件被用于設置3500/93系統顯示，使得用戶可以根據實際需求定制顯示界面和參數設置。每個3500機架最多可以支持兩臺顯示器，每臺顯示器需要一個空閑插槽來插入與其對應的DIM（Display Interface Module）。

這樣的設計使得顯示接口模塊在機架中的布局更加靈活和方便。

在連接方面，DIM和顯示器之間的電纜連接可以通過3500機架的正面或機架背面的I/O模塊完成，即使在顯示器不是正面安裝的情況下也是如此。這種設計使得安裝和維護變得更加便捷。此外，對于需要電纜長度超過100英尺的應用，

建議使用外部電源和電纜適配器，以確保信號的穩定傳輸。

總的來說，3500/93 135799-01顯示接口模塊是一款功能強大、易于使用的設備，能夠?yàn)橛脩籼峁┣逦?、?shí)時的機械保護系統信息，有助于提高設備的運行效率和可靠性。無論是在石油、化工、電力還是其他工業領域，它都是一個值得考慮的優質選擇。

>>>>型號:3500/93 135799-01 高性能顯示接口模塊 用于工業自動化和控制系統

【英文介紹】

The 3500/93 135799-01 Display Interface module is a high-performance display interface module designed for the 3500 mechanical protection system. The module is mainly used to provide local or remote visual indication

 to view all mechanical protection system information stored in 3500 racks in real time.

3500/93 135799-01 This display interface module complies with API Standard 670, ensuring high reliability and stability in petroleum and other industrial applications. Through this module, the user can easily access and monitor

 the data of all channels, monitors, relay modules, key phase modules or tachometer modules, which are systematically listed in the system event list for easy analysis and diagnosis.

The 3500 rack configuration software is used to configure the 3500/93 system display, allowing users to customize the display interface and parameter Settings according to actual requirements. Each 3500 rack can support up to

two displays, each of which requires a free slot to insert its corresponding DIM (Display Interface Module). This design makes the layout of the display interface module in the rack more flexible and convenient.

In terms of connectivity, the cable connection between the DIM and the display can be done via an I/O module on the front or back of the 3500 rack, even when the display is not front-mounted. This design makes installation and

maintenance easier. In addition, for applications requiring cable lengths greater than 100 feet, an external power supply and cable adapter are recommended to ensure stable transmission of the signal.

Overall, the 3500/93 135799-01 Display interface module is a powerful, easy-to-use device that provides users with clear, real-time information about the mechanical protection system, helping to improve the efficiency and reliability

of the operation of the device. Whether it is in petroleum, chemical, power or other industrial fields, it is a quality option worth considering.
