5X00502G01 | 繼電器模塊 | 5X00226G01 | 5X00481G04

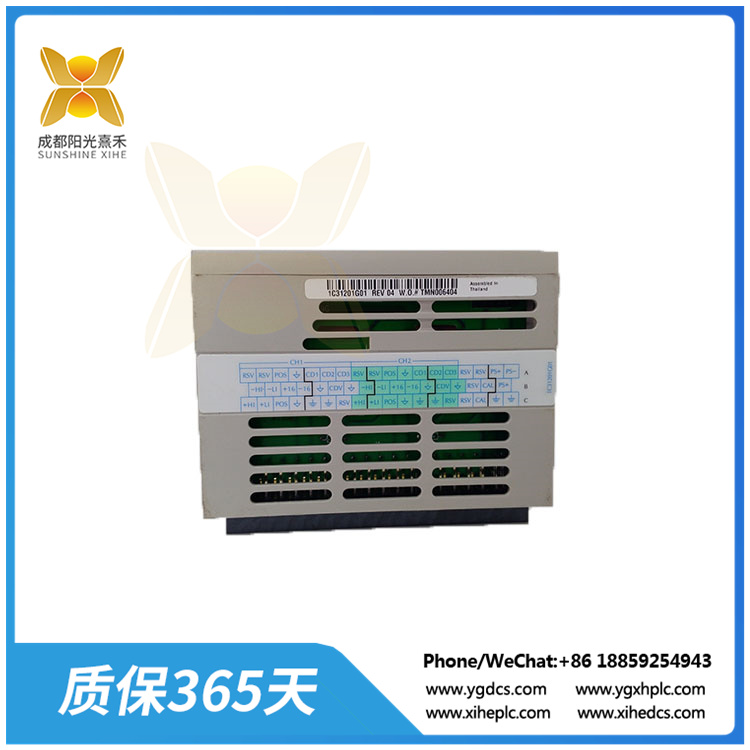

　　型號：5X00502G01

　　類別： 繼電器模塊

　　貨期：3-5天/周

　　發貨方式：順豐/聯邦

　　付款方式：電匯/西聯

　　成色：全新/二手

　　質保：一年

　　5X00502G01 繼電器模塊是一種用于控制高功率電路的裝置，主要由電磁線圈和一組可控開關組成。通過控制線圈的通斷，實現對外部電路的開關控制。這種模塊在需要隔離低功率信號與高功率負載之間的應用中非常常見，如家庭自動化、工業自動化、汽車電子等領域。

　　5X00502G01 繼電器模塊的工作原理基于電磁感應。當線圈中流過足夠的電流時，會產生一個磁場，使得觸點發生吸引或釋放動作。繼電器模塊通常由觸點、線圈、固定鐵芯和外殼等部分組成。其中，觸點分為常開(NO)和常閉(NC)兩種類型。在繼電器未通電時，常開觸點處于閉合狀態，常閉觸點處于打開狀態;當電磁線圈通電時，常開觸點打開，常閉觸點閉合。

　　5X00502G01 繼電器模塊的主要作用之一是提供電氣隔離，使控制信號與被控制電路之間得以隔離，避免不同電路之間的電流相互影響。在電力系統中，繼電器模塊常用于電流保護和過載保護。此外，它還常用于電機控制，實現電機的正轉、反轉、制動等控制功能，并廣泛應用于電動機、風扇、水泵等設備中。

　　在選型繼電器模塊時，需要考慮線圈電壓、觸點容量和觸點數量等因素。線圈電壓應與電源匹配，觸點容量應滿足負載需求，觸點數量則根據被控對象的路數和狀態來確定。

　　5X00502G01 | Relay module | 5X00226G01 | 5X00481G04

　　Model: 5X00502G01

　　Category: Relay module

　　Delivery time: 3-5 days/week

　　Delivery method: SF Express/Federal

　　Payment method: Wire transfer/Western Union

　　Finish: Brand new/used

　　Warranty: One year

　　The 5X00502G01 relay module is a device used to control a high-power circuit, consisting mainly of an electromagnetic coil and a set of controllable switches. By controlling the turn-on and turn-off of the coil, the switch control of the external circuit is realized. This kind of module is very common in applications that need to isolate low-power signals from high-power loads, such as home automation, industrial automation, automotive electronics, etc.

　　The operating principle of the 5X00502G01 relay module is based on electromagnetic induction. When enough current flows through the coil, a magnetic field is generated, causing the contact to attract or release action. The relay module usually consists of a contact, a coil, a fixed iron core and a housing. Among them, the contact is divided into normally open (NO) and normally closed (NC) two types. When the relay is not powered on, the normally open contact is in the closed state, and the normally closed contact is in the open state. When the electromagnetic coil is energized, the normally open contact is opened, and the normally closed contact is closed.

　　One of the main functions of the 5X00502G01 relay module is to provide electrical isolation, so that the control signal can be isolated from the controlled circuit to avoid the current interaction between different circuits. In power systems, relay modules are often used for current protection and overload protection. In addition, it is also commonly used in motor control, to achieve the motor forward, reverse, braking and other control functions, and is widely used in motors, fans, pumps and other equipment.

　　When selecting a relay module, factors such as coil voltage, contact capacity and number of contacts need to be considered. The coil voltage should match the power supply, the contact capacity should meet the load demand, and the number of contacts is determined according to the number and state of the controlled object.
