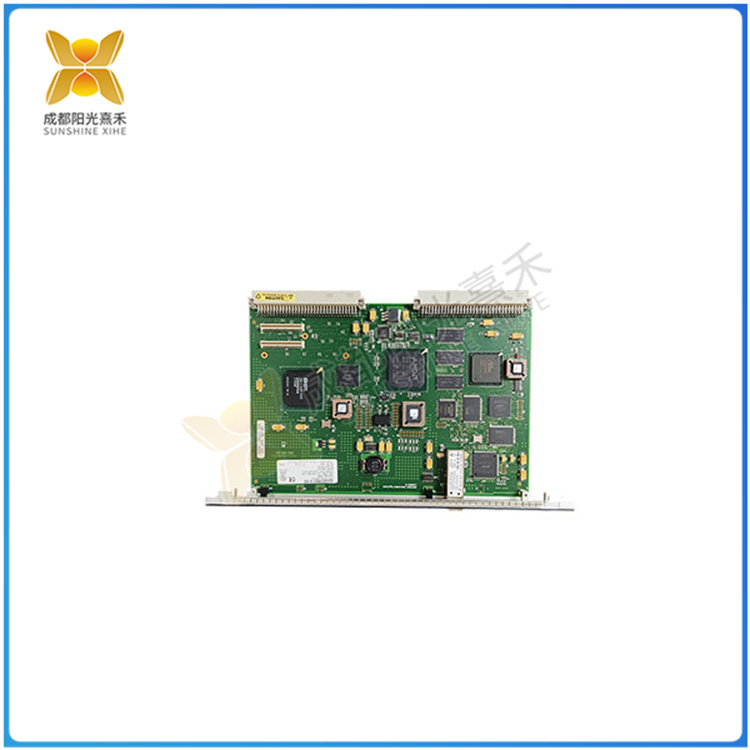

>>>>>型號:IC698CMX016-ED 通信模塊

【功能描述】

IC698CMX016-ED是一款用于PACSystems RX7i可編程控制器的通信模塊。

該模塊是RX7i系列中的Control Memory Xchange模塊，也被稱為控制內存交換模塊。它的主要功能是使用反射內存技術，通過光纖網絡在PLC（可編程邏輯控制器）

和兼容設備之間提供確定性的數據共享。

該模塊具有16MB的反射內存，并具備奇偶校驗功能，確保數據的完整性和準確性。它設計有一個專為LC型連接器使用的光纖端口，支持高達2.12 Gbaud的數據傳輸速率。

此外，該模塊支持菊花鏈連接方式，通過FO電纜可以連接最多256個節點，形成一個可靠的通信網絡。每個節點的接收器都連接到發射器，確保任何狀態更改都能迅速、

無延遲地傳達到所有其他節點。

IC698CMX016-ED的數據傳輸速率在每秒6.2兆字節到每秒3.2兆字節之間，具體取決于冗余信息的密度。模塊的訪問時間在400納秒到200納秒之間變化，表現出優異的性能。

這款模塊廣泛應用于各種產業自動化領域，如制造、電力、化工、制藥等，以滿足對高可靠性、高速數據傳輸?shù)男枨?。它能夠輕松集成到GE的自動化體系中，

為控制系統提供穩定的數據交換支持。

IC698CMX016-ED是一款功能強大、性能卓越的控制內存交換模塊，適用于PACSystems RX7i可編程控制器，為工業自動化控制系統提供可靠、高速的數據通信支持。

>>>>>型號:IC698CMX016-ED 通信模塊

【英文介紹】

IC698CMX016-ED is a communication module for PACSystems RX7i programmable controllers.

This module is the Control Memory Xchange module in the RX7i series, also known as the Control Memory Switch module. Its main function is to provide deterministic data sharing between

 PLCS (Programmable logic controllers) and compatible devices via a fiber optic network using reflected memory technology.

The module has 16MB of reflected memory and parity check to ensure data integrity and accuracy. It has a fiber optic port designed for LC connectors and supports data transfer rates up to

 2.12 Gbaud. In addition, the module supports a Daisy chain connection, which allows up to 256 nodes to be connected via FO cables, forming a reliable communication network. Each node's

receiver is connected to the transmitter, ensuring that any state changes are communicated to all other nodes quickly and without delay.

The IC698CMX016-ED's data transfer rates range from 6.2 megabytes per second to 3.2 megabytes per second, depending on the density of redundant information. The module's access time

 varies between 400 and 200 nanoseconds, showing excellent performance.

This module is widely used in various industrial automation fields, such as manufacturing, power, chemical, pharmaceutical, etc., to meet the demand for high reliability and high-speed data

 transmission. It can be easily integrated into GE's automation system to provide stable data exchange support for control systems.

IC698CMX016-ED is a powerful, high-performance control memory switch module for PACSystems RX7i programmable controllers to provide reliable, high-speed data communication support

 for industrial automation control systems.
