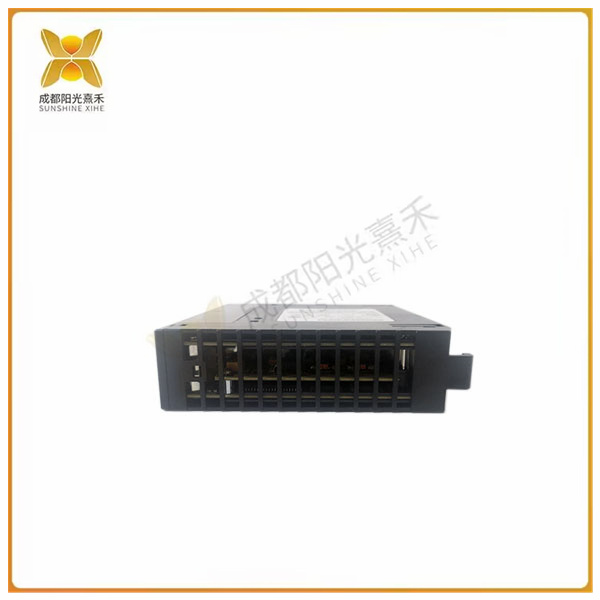

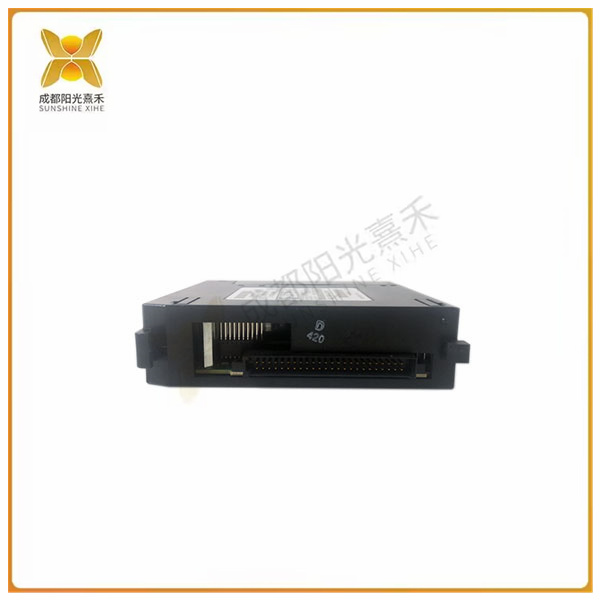

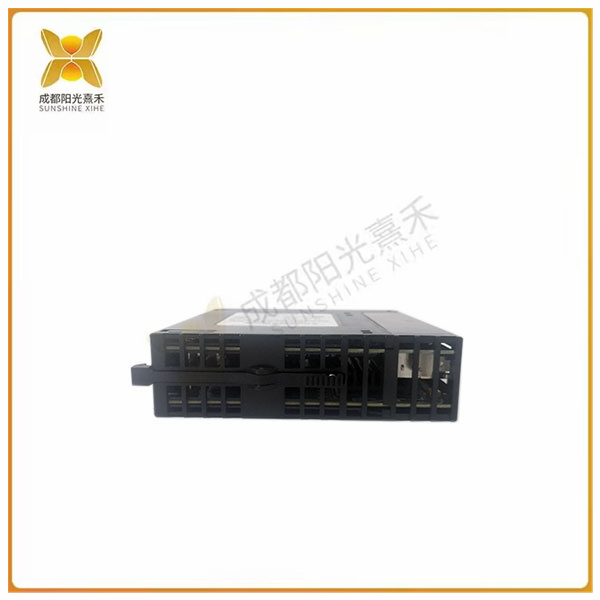

>>>>>型號:IC693CPU372 以太網通信接口 用于實現以太網通信

【功能描述】

IC693CPU372是TCP I/P以太網通信接口。該模塊主要用于實現以太網通信，并支持Modbus TCP服務器/客戶端和工業以太網等系統協議。該模塊可用于使用以太網全局?jǐn)?shù)據（EGD）、SRTP和SRTP客戶端定期執行數據交換。

該IC693CPU372支持完整的PLC編程和配置服務。它帶有共享相同IP地址的雙以太網端口，可用作內部以太網交換機，允許菊花鏈連接以實現網絡和設備級環網（DLR）拓?fù)?。每個端口都支持網絡自動感應，無需將模塊分配給現有網絡的速度。

該IC693CPU372配備了時鐘速度為133 MHz的專用處理器。對于配置，內置的Web服務器允許遠程連接配置站，該站可用于將簡單的配置引入模塊以及模塊監控。對于可編程邏輯控制器（PLC）功能的編程，IC693CPU372使用Proficy Machine Edition軟件包的PLC Logic Developer的Machine版本進行配置。

IC693CPU372支持它支持2048個離散輸入、2048個離散輸出、128-32,640個模擬輸入字和128-32640個模擬輸出字（最大），總用戶內存為240 KB。此內置內存為隨機存取存儲器（RAM）類型，由電池備份?？蛇x的非易失性存儲器可以添加或閃存，以提供不需要電池能量來保留存儲器內容的存儲器。

IC693CPU372模塊由GE Fanuc設計和制造。該工業通信模塊用于通過TCP/IP協議運行的工業以太網網絡進行通信。該裝置與90-30系列或VersaMax系列提供的GE PLC設備兼容，或與PACSystems中的PLC設備兼容。IC693CPU372模塊具有用于以太網通信的集成接口，可與安裝了所有必要軟件工具的主機一起使用。以太網接口支持多達3個不同的90-30系列模塊，可提供額外的功能。90-30系列可編程邏輯控制器的背板可以使用組合模塊來提高整個系統的性能。

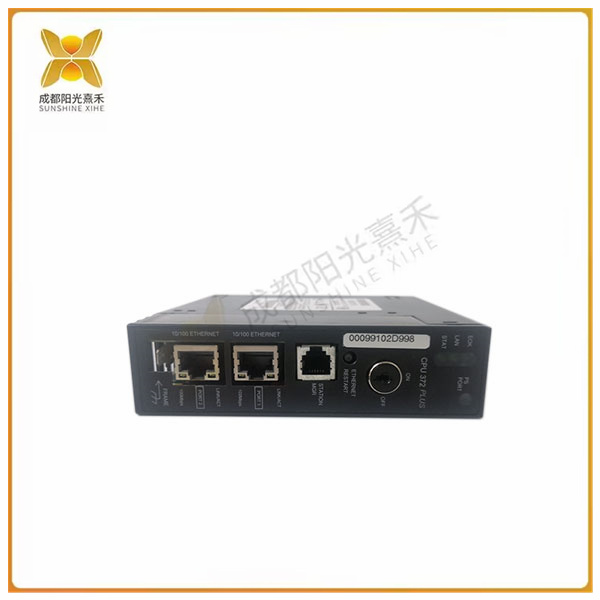

IC693CPU372通信模塊具有2048個輸入/輸出點，并提供240 KB的存儲容量。與該系列中的大多數類似組件一樣，該模塊具有80386EX型處理器，旨在用于32位系統。該裝置支持通過100BaseTX、IEEE 802.3和10BaseT網絡等流行網絡進行通信。為此，該裝置包括2個具有自動感應功能的屏蔽以太網端口。該裝置有一對以太網連接器、一個Station Manager功能連接器、LED狀態指示燈、一個主開關和一個重啟按鈕。IC693CPU372模塊支持浮點數學運算、雙工模式、簡單的配置和編程以及SRTP服務器選項。IC693CPU372模塊的處理器工作在133兆赫茲，它支持RAM或閃存進行存儲。該裝置使用備用電池運行，在7.4伏直流電下需要5瓦。

 >>>>>型號:IC693CPU372 以太網通信接口 用于實現以太網通信

 >>>>>型號:IC693CPU372 以太網通信接口 用于實現以太網通信

【英文介紹】

IC693CPU372 is a TCP I/P Ethernet communication interface. The module is mainly used to implement Ethernet communication and supports system protocols such as Modbus TCP server/client and industrial Ethernet. The module can be used to perform regular data exchange using Ethernet Global Data (EGD), SRTP, and SRTP clients.

The IC693CPU372 supports full PLC programming and configuration services. It comes with dual Ethernet ports that share the same IP address and can be used as an internal Ethernet switch, allowing daisy-chain connectivity for network and device-level ring network (DLR) topologies. Each port supports network automatic sensing, eliminating the need to assign modules to existing network speeds.

The IC693CPU372 comes with a dedicated processor with a clock speed of 133 MHz. For configuration, the built-in Web server allows remote connection to the configuration station, which can be used to introduce simple configuration into the module as well as module monitoring. For programming programmable Logic controller (PLC) functions, the IC693CPU372 is configured using the Machine version of PLC Logic Developer in the Proficy Machine Edition package.

IC693CPU372 Support It supports 2048 discrete inputs, 2048 discrete outputs, 128-32,640 analog input words, and 128-32,640 analog output words (Max.) for a total user memory of 240 KB. This internal memory is of the random access memory (RAM) type and is backed up by the battery. Optional non-volatile memory can be added or flash to provide memory that does not require battery power to retain the contents of the memory.

The IC693CPU372 module is designed and manufactured by GE Fanuc. The industrial communication module is used to communicate over an industrial Ethernet network running over the TCP/IP protocol. The unit is compatible with GE PLC equipment provided in the 90-30 series or VersaMax series, or with PLC equipment in PACSystems. The IC693CPU372 module has an integrated interface for Ethernet communication and can be used with hosts that have all the necessary software tools installed. The Ethernet interface supports up to 3 different 90-30 series modules to provide additional functionality. The backplane of the 90-30 series programmable logic controllers can use combination modules to improve the performance of the entire system.

The IC693CPU372 communication module has 2048 input/output points and provides 240 KB of storage capacity. Like most similar components in the series, the module has a type 80386EX processor and is intended for use in 32-bit systems. The device supports communication over popular networks such as 100BaseTX, IEEE 802.3, and 10BaseT networks. For this purpose, the device includes two shielded Ethernet ports with automatic sensing functions. The unit has a pair of Ethernet connectors, a Station Manager functional connector, LED status indicators, a master switch, and a restart button. The IC693CPU372 module supports floating point math, duplex mode, simple configuration and programming, and SRTP server options. The processor of the IC693CPU372 module operates at 133 MHZ, and it supports RAM or flash memory for storage. The unit runs on a backup battery and requires 5 watts at 7.4 volts direct current.
