>>>>型號:IC698CPE010 中央處理器（CPU）模塊

【功能描述】

IC698CPE010是RX7i系列的一個中央處理器（CPU）模塊，具有強大的處理能力，能夠?qū)崟r控制工業機械和材料過程。

IC698CPE010這款CPU模塊安裝在機架上的VME64連接背板上，通過背板與其他設備和模塊進行通信。

IC698CPE010該模塊配備了能夠執行浮點計算的300MHz Celeron微處理器，并提供了豐富的功能和接口，如三個嵌入式串行端口（包括RS-485、RS-232和RS-232以太網站點管理器端口），用于與其他設備進行通信。

此外，該模塊還支持高速EGD數據交換和TCP/IP啟用通信，具有兩個以太網端口。

在編程方面，IC698CPE010支持多種編程語言，如C、梯形圖、結構化文本和功能塊圖，這使得用戶可以根據自己的需求選擇最適合的編程語言來配置和控制該模塊。同時，該模塊通過用戶編程值和參數執行實時應用程序

處理、機器控制和系統處理功能。

在存儲容量方面，IC698CPE010提供10兆字節鋰電池支持的RAM存儲器和10兆字節非易失性用戶存儲器，用于應用程序和數據存儲。它最多可以支持512個程序塊（每個塊128千比特），并且它有一個包括離散數據和模擬

數據的參考表。

IC698CPE010中央處理器模塊廣泛應用于各種工業自動化系統，如生產線控制、工藝流程控制等，以及構建控制和監測系統，如環境監測、能源管理、樓宇自動化等。此外，它還可以用于監控和控制化學過程，確保生產的

精確性和一致性，以及用于監測和控制水處理過程，確保水質符合標準。

總的來說，IC698CPE010是一款功能強大、性能卓越的中央處理器模塊，適用于多種工業自動化和監控應用場景，能夠幫助用戶實現實時控制、優化和監測，提高生產效率和質量。

>>>>>型號:IC698CPE010 中央處理器（CPU）模塊

【英文介紹】

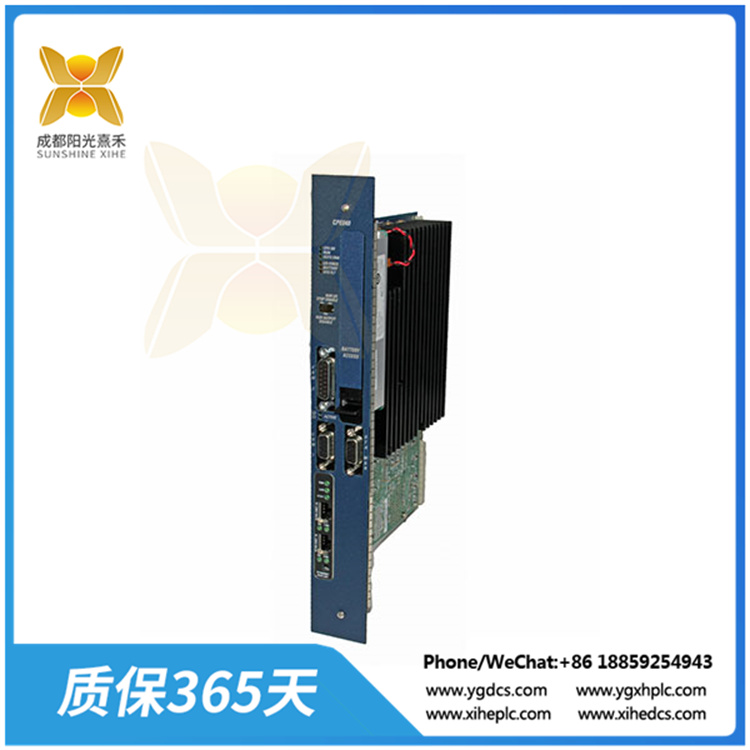

The IC698CPE010 is a central processing unit (CPU) module of the RX7i family with powerful processing power to control industrial machinery and material processes in real time.

IC698CPE010 The CPU module is installed on the VME64 connection backplane in the rack, and communicates with other devices and modules through the backplane.

IC698CPE010 The module is equipped with a 300MHz Celeron microprocessor capable of performing floating-point calculations and offers a wealth of features and interfaces such as three embedded

serial ports (including RS-485, RS-232, and RS-232 Ethernet site manager ports) for communication with other devices. In addition, the module supports high-speed EGD data exchange and TCP/IP

enabled communication, with two Ethernet ports.

In terms of programming, IC698CPE010 supports a variety of programming languages, such as C, ladder diagram, structured text and function block diagram, which allows users to choose the most

suitable programming language to configure and control the module according to their needs. At the same time, the module performs real-time application processing, machine control, and system

processing functions through user programmed values and parameters.

In terms of storage capacity, the IC698CPE010 offers RAM memory supported by 10 megabytes of lithium batteries and 10 megabytes of non-volatile user memory for applications and data storage.

 It can support up to 512 blocks (128 kilobits each), and it has a reference table that includes both discrete and simulated data.

IC698CPE010 CPU module is widely used in various industrial automation systems, such as production line control, process control, etc., as well as building control and monitoring systems, such as

environmental monitoring, energy management, building automation, etc. In addition, it can be used to monitor and control chemical processes to ensure accuracy and consistency in production, as well

as to monitor and control water treatment processes to ensure water quality meets standards.

Overall, the IC698CPE010 is a powerful, high-performance CPU module for a variety of industrial automation and monitoring applications, enabling users to achieve real-time control, optimization and

monitoring to improve production efficiency and quality.
