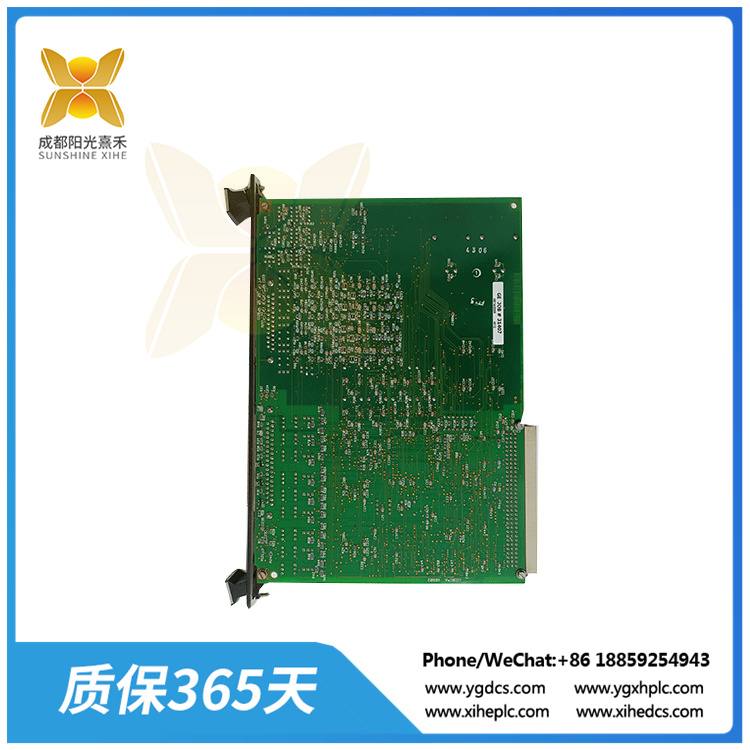

>>>>型號:DS200FCGDH1B 門控分配和狀態卡

【功能描述】

DS200FCGDH1B是一款門控分配和狀態卡。

這款卡主要用于6脈沖相位控制的非反轉橋的接口系統，充當著接口板的角色。當它被安裝到驅動系統中時，可以對相控不可逆橋系統提供接口。

DS200FCGDH1B的主要功能包括接收來自DSPC（數字信號處理卡）的信息，對這些信息進行解密，并將解碼后的信號從驅動器的VME背板反饋回來。此外，它還能接收來自每個橋腿的復用單元狀態信號，

并對這些信號進行解碼和去分配。同時，它還能接收橋路反饋信號，對這些信號進行縮放，然后將電壓、頻率和電流狀態數據傳送回DSPC板。

DS200FCGDH1B的設計還考慮到了系統的穩定性和可維護性。它配備了一個附加的前面板，具有兩個夾子組件，用于在模塊插入驅動器后將其固定到位。同時，它還具備一個IMOK LED狀態指示燈，用于為

用戶提供基本的系統狀態信息。

這款模塊在工業自動化和控制領域具有廣泛的應用，包括石油和天然氣、電力工業、化工、水處理、制藥和制造業等領域。其高可靠性和性能使其成為許多不同應用場景中的理想選擇。

>>>>>型號:DS200FCGDH1B 門控分配和狀態卡

【英文介紹】

The DS200FCGDH1B is a gated allocation and status card.

This card is mainly used for 6-pulse phase control of the non-reversing bridge interface system, acting as an interface board. When it is installed in the drive system, it can provide an

 interface to the phased irreversible bridge system.

The main functions of the DS200FCGDH1B include receiving information from the DSPC (Digital Signal Processing Card), decrypting this information, and feeding the decoded signal

back from the VME backplane of the drive. In addition, it can receive multiplexed unit state signals from each bridge leg and decode and de-assign these signals. At the same time, it

can also receive bridge feedback signals, scale these signals, and then transmit voltage, frequency and current status data back to the DSPC board.

The DS200FCGDH1B is also designed with system stability and maintainability in mind. It comes with an additional front panel with two clip assemblies for holding the module in place

after it has been inserted into the drive. At the same time, it also has an IMOK LED status indicator to provide users with basic system status information.

The module has a wide range of applications in industrial automation and control, including oil and gas, power industry, chemicals, water treatment, pharmaceuticals and manufacturing.

 Its high reliability and performance make it ideal for many different application scenarios.
