>>>>>型號:IS200VSVOH1B 伺服控制 以太網通信功能

【功能描述】

IS200VSVOH1B伺服控制具有以太網通信功能。

以太網通信功能是一種常見的通信方式，用于連接計算機、交換機、路由器等設備，實現數據的傳輸和共享。在IS200VSVOH1B伺服控制中，以太網通信功能允許設備之間進行高速、穩定的數據傳輸，實現遠程監控、故障診斷、參數調整等功能。

需要注意的是，具體的應用和功能可能會因?qū)嶋H設計和應用需求而有所不同。因此，在使用IS200VSVOH1B伺服控制時，建議參考相關的技術文檔和數據手冊，以了解其詳細的功能和應用范圍。

IS200VSVOH1B是通用電氣為Mark VI制造的電路板組件。Mark VI由GE發布，作為其長期運行且廣受歡迎的Speedtronic燃氣輪機/蒸汽輪機管理系列的一部分，該系列始于1960年代，當時該公司發布了Mark I系統。直到2000年代，隨著Mark VI和Mark VIe的推出，這一系列渦輪機控制一直持續發展。Mark VI包括以太網通信功能、基于PC的操作界面以及專為渦輪機控制而設計的集成硬件和軟件。

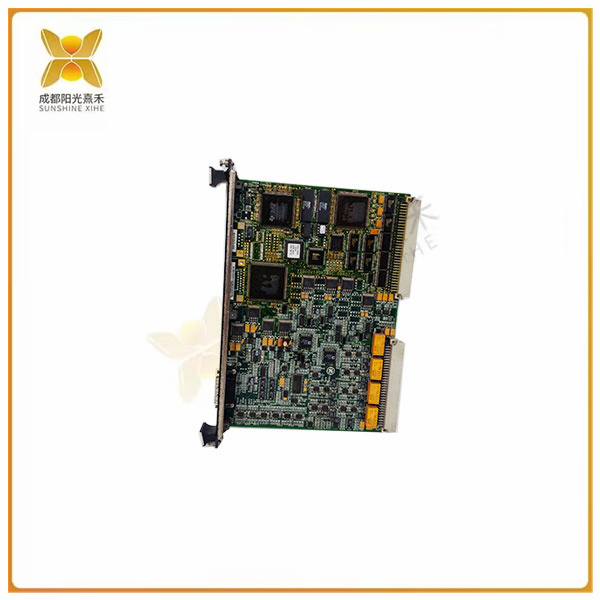

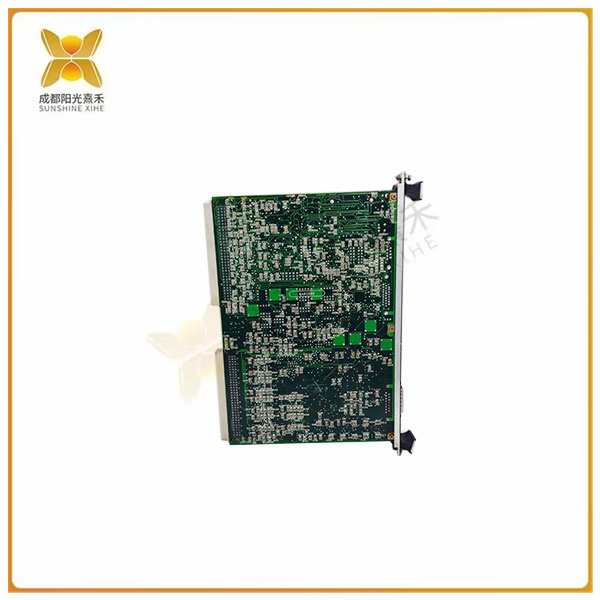

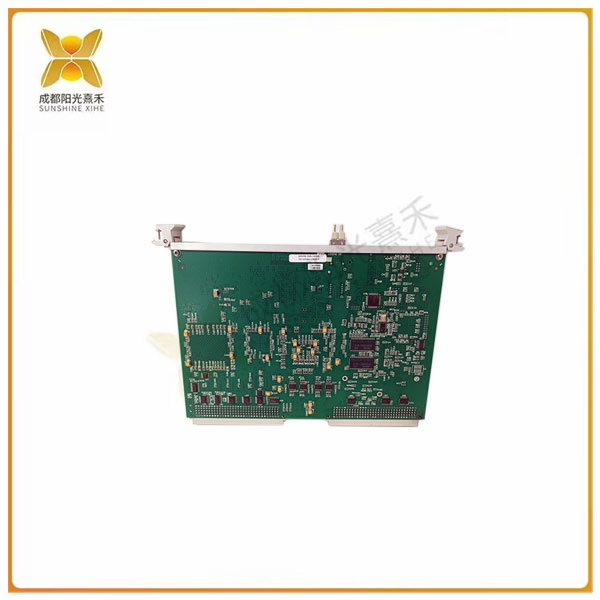

該IS200VSVOH1B用作伺服控制板。該板通過控制四個電液伺服閥來驅動燃料/蒸汽閥。該板還提供脈沖速率流量輸入、LVDT激勵和LVDT位置反饋。該IS200VSVOH1B可用于三重冗余系統，也可用于單工系統。

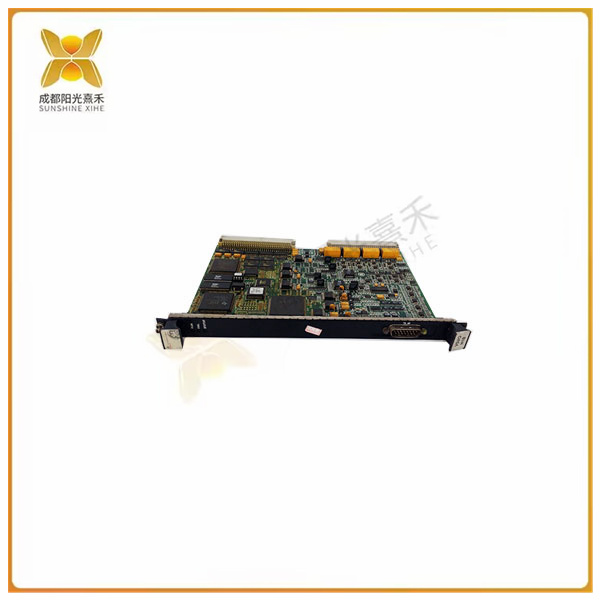

IS200VSVOH1B有一個連接到PCB的單插槽前面板。該面板包括一個電纜連接器（J5）以及用于狀態信息的LED指示燈。前面板中的三個LED包括一個RUN燈（綠色）、一個FAIL燈（紅色）和一個STATUS燈。STATUS指示燈通常未通電。但是，如果存在警報條件，則此LED將通電并顯示為穩定的橙色。

該IS200VSVOH1B有六個連接器，包括兩個背板（P1/P2）和四個帶導電走線的連接器（P3至P6）。該板包括四個繼電器（K1到K4）。這些組件中的每一個在其頂面上都有一個打印的圖表。該板裝有電阻器、電容器和TP測試點。它還具有電感磁珠（L1-L10）。該板有70多個集成電路。

 >>>>>型號:IS200VSVOH1B 伺服控制 以太網通信功能

【英文介紹】

IS200VSVOH1B servo control has Ethernet communication function.

Ethernet communication function is a common communication mode, which is used to connect computers, switches, routers and other devices to realize data transmission and sharing. In the IS200VSVOH1B servo control, the Ethernet communication function allows high-speed and stable data transmission between devices to achieve remote monitoring, fault diagnosis, parameter adjustment and other functions.

It is important to note that specific applications and features may vary depending on actual design and application requirements. Therefore, when using IS200VSVOH1B servo control, it is recommended to refer to the relevant technical documents and data manuals to understand its detailed functions and application scope.

The IS200VSVOH1B is a board component manufactured by General Electric for the Mark VI. The Mark VI was released by GE as part of its long-running and popular Speedtronic gas turbine/steam turbine management series, which began in the 1960s when the company released the Mark I system. This range of turbine controls continued to evolve until the 2000s with the introduction of Mark VI and Mark VIe. The Mark VI includes Ethernet communication capabilities, a PC-based operating interface, and integrated hardware and software designed specifically for turbine control.

The IS200VSVOH1B is used as a servo control board. The board drives the fuel/steam valve by controlling four electro-hydraulic servo valves. The board also provides pulse rate flow input, LVDT excitation, and LVDT position feedback. The IS200VSVOH1B can be used in triple-redundant systems, as well as simplex systems.

The IS200VSVOH1B has a single slot front panel connected to the PCB. The panel includes a cable connector (J5) and LED indicators for status information. The three leds in the front panel include a RUN light (green), a FAIL light (red), and a STATUS light. The STATUS indicator is usually not powered on. However, if an alarm condition is present, this LED will be powered on and display as a stable orange color.

The IS200VSVOH1B has six connectors, including two backplanes (P1/P2) and four connectors with conductive wires (P3 to P6). The board includes four relays (K1 to K4). Each of these components has a printed chart on its top surface. The board is equipped with a resistor, capacitor and TP test point. It also has an inductive magnetic bead (L1-L10). The board has more than 70 integrated circuits.
