【功能描述】

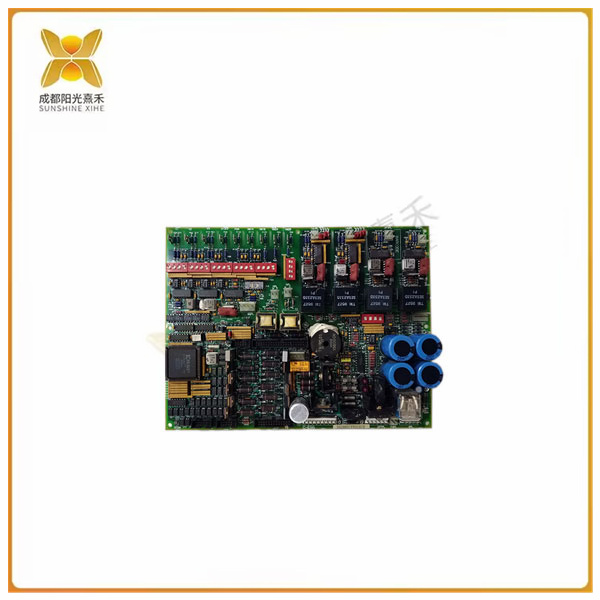

DS200DCFBG1B是通用電氣為Mark V板系列制造的電源板。AC2000、CB2000、DC2000、FC2000、ME2000和EX2000系列機器可以將主板安裝在驅動器中。安裝后，此卡可以為驅動器提供控制級電源和機柜風扇電源。額定電壓在38至115 VAC之間，可通過控制電源變壓器直接提供給電路板。電路板的頻率取決于輸入電壓，但范圍為0至500 kHz。

該板具有許多電路，用于為電路板和已安裝的驅動器供電。DS200DCFBG1B由電機勵磁電源、驅動器、AC/DC監控和控制級電源電路組成。板上的12個跳線和7個DIP開關為用戶提供了可配置的系統選項。保險絲開關診斷使用電路板上的兩個LED和一個霓虹燈指示燈進行。三個保護保險絲可防止電源中斷?？梢允褂秒娐钒迳霞傻奈鍌€(gè)測試點來監控電壓。

應遵循制造商提供的DS200DCFBG1B和已安裝驅動器的安裝和存儲參數。這些將防止對兩個單元造成任何意外或可預防的損壞。有關接線和安裝電路板的完整指南，請參閱設備的手冊和數據表。最初，該板和Mark V系列的技術支持由制造商通用電氣提供。

 >>>>>型號:DS200DCFBG1BGB 電源板 主板安裝在驅動器中

【英文介紹】

The DS200DCFBG1B is a power supply board manufactured by General Electric for the Mark V board series. AC2000, CB2000, DC2000, FC2000, ME2000 and EX2000 series machines can have the motherboard installed in the drive. When installed, the card provides control level power to the drive and cabinet fan power. The rated voltage is between 38 and 115 VAC and can be supplied directly to the board via a control power transformer. The frequency of the board depends on the input voltage, but ranges from 0 to 500 kHz.

The board has a number of circuits that are used to power the circuit board and the installed drivers. DS200DCFBG1B is composed of motor excitation power supply, driver, AC/DC monitoring and control level power supply circuit. The 12 jumpers and 7 DIP switches on the board provide users with configurable system options. Fuse switch diagnosis is performed using two leds and a neon indicator on the circuit board. Three protective fuses prevent power outages. The voltage can be monitored using five test points integrated on the board.

Installation and storage parameters for DS200DCFBG1B and installed drives provided by the manufacturer should be followed. These will prevent any accidental or preventable damage to both units. For complete guidance on wiring and mounting boards, refer to your device's manual and data sheet. Initially, technical support for the board and the Mark V series was provided by manufacturer General Electric.
