>>>>>型號:IS220PSVOH1B 伺服控制包 處理兩個伺服閥位置環
【功能描述】
IS220PSVOH1B用作伺服控制包。該組件由GE為其Mark VI或Mark VIe系統制造。這兩種系統都用于控制蒸汽輪機和燃?xì)廨啓C(jī)系統。

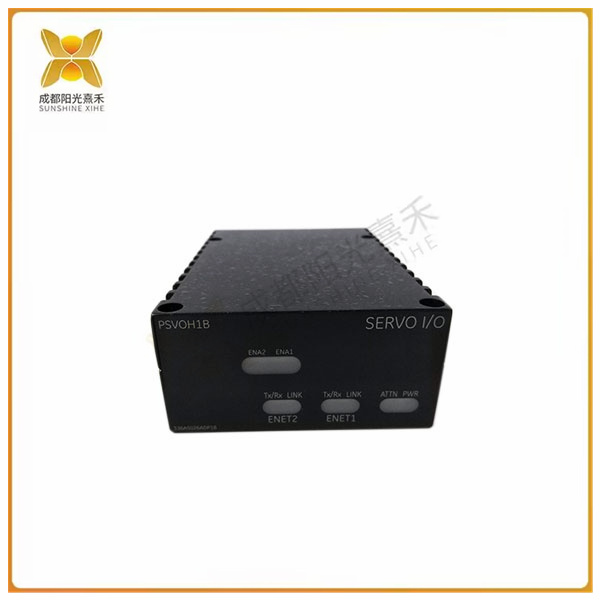

該IS220PSVOH1B在一個或兩個I/O以太網網絡和TSVO伺服端子板之間提供電氣接口。該IS220PSVOH1B使用WSVO伺服驅動器模塊來處理兩個伺服閥位置環。PSVO有一個帶有多個LED指示燈的前面板。其中包括四個指示兩個以太網網絡（ENet1/Enet2）狀態的LED，以及一個電源和收件人LED，以及另外兩個標記為ENA1/2的LED。正面還有一個紅外端口，此包裝中沒有使用。
安裝后，將使用Control System Toolbox應用程序配置該IS220PSVOH1B。該套件包括一個帶有輸入電源連接器的處理器板、本地電源和一個用于溫度監控的內部傳感器。該板還具有板載閃存和RAM。該板連接到采集板。
更換IS220PSVOH1B時可以自動重新配置。此選項可通過ToolboxST應用程序通過組件編輯器啟用/禁用。組件編輯器還允許操作員根據需要手動重新配置模塊。更換端子板時，必須手動重新配置I/O包。
伺服性能可以通過手動模式、位置斜坡或步進電流來撫摸執行器來驗證。趨勢記錄器將顯示執行器行程中的任何異常。有關該板的此部分和其他部分、其安裝和操作以及可能的兼容性問題的更多信息，可以通過制造商用戶指南和手冊找到。
>>>>>型號:IS220PSVOH1B 伺服控制包 處理兩個伺服閥位置環
【英文介紹】
IS220PSVOH1B is used as a servo control package. The component is manufactured by GE for its Mark VI or Mark VIe systems. Both systems are used to control steam turbine and gas turbine systems.
The IS220PSVOH1B provides an electrical interface between one or two I/O Ethernet networks and the TSVO servo terminal board. The IS220PSVOH1B uses the WSVO servo driver module to handle two servo valve position rings. The PSVO has a front panel with multiple LED indicators. These include four leds indicating the status of two Ethernet networks (ENet1/Enet2), as well as a power and recipient LED, and two more leds labeled ENA1/2. There is also an infrared port on the front that is not used in this package.
After installation, the IS220PSVOH1B is configured using the Control System Toolbox application. The kit includes a processor board with input power connectors, a local power supply, and an internal sensor for temperature monitoring. The board also has on-board flash memory and RAM. The board is connected to the acquisition board.
The IS220PSVOH1B can be automatically reconfigured when the IS220PSVoH1B is replaced. This option can be enabled/disabled through the component editor through the ToolboxST application. The component editor also allows the operator to manually reconfigure the module as needed. When replacing a terminal board, you must manually reconfigure the I/O packet.
Servo performance can be verified by stroking the actuator with manual mode, position ramp, or step current. The trend recorder will show any anomalies in the actuator travel. More information about this and other parts of the board, its installation and operation, and possible compatibility issues can be found in the manufacturer's user Guide and manual.
