>>>>>型號:IS220UCSAH1A 處理器/控制器 用于連接通信

【功能描述】

IS220UCSAH1A是通用電氣為Mark VI系統創建的處理器/控制器。Mark VI平臺設計用于管理燃?xì)廨啓C(jī)或蒸汽輪機，由GE作為Speedtronic系列的一部分發布。它具有HMI（人機界面）和專為運行重型渦輪機而設計的軟件，例如CIMPLICITY圖形界面。

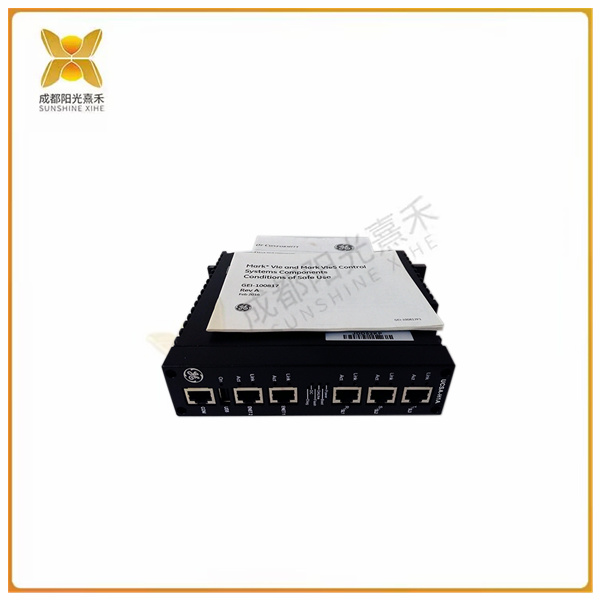

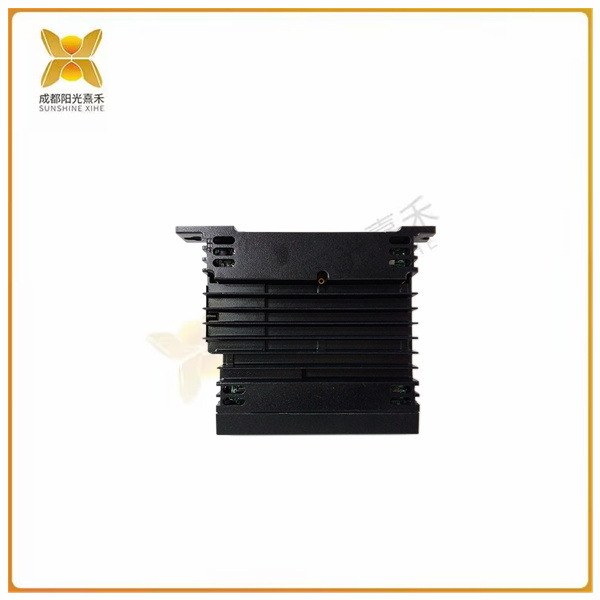

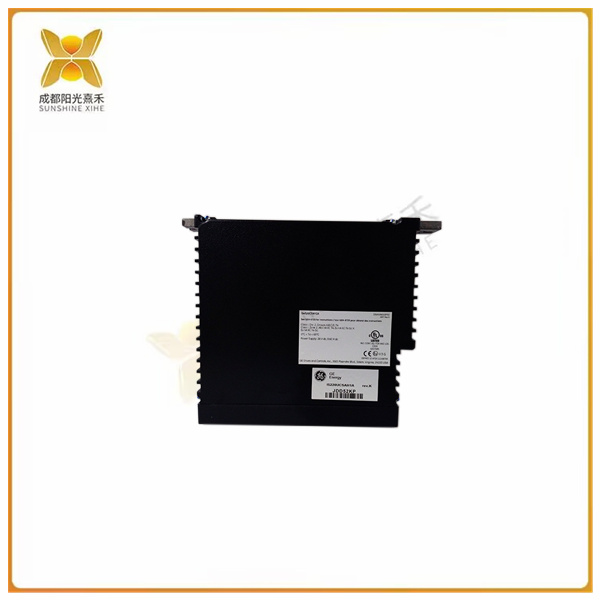

該IS220UCSAH1A由單個盒裝組件構成，帶有一個前面板，用于連接通信，后邊緣有兩個螺釘安裝座，三個側面有格柵開口，以允許空氣流動。該控制器設計用于安裝在機柜內的底座。最多可以安裝三個彼此相鄰的組件，以實現緊湊的布置，輕松為三重冗余系統提供服務。

該IS220UCSAH1A可在 QNX 操作系統上運行。它有一個飛思卡爾 8349,667 MHz 處理器。該板使用額定功率為 18-36 V dc、12 W 的電源。該板可在 0 至 65 攝氏度的溫度下使用，即使在最高額定溫度下也不需要風扇進行冷卻。該板可用于 NFPA 1 類 2 類應用。

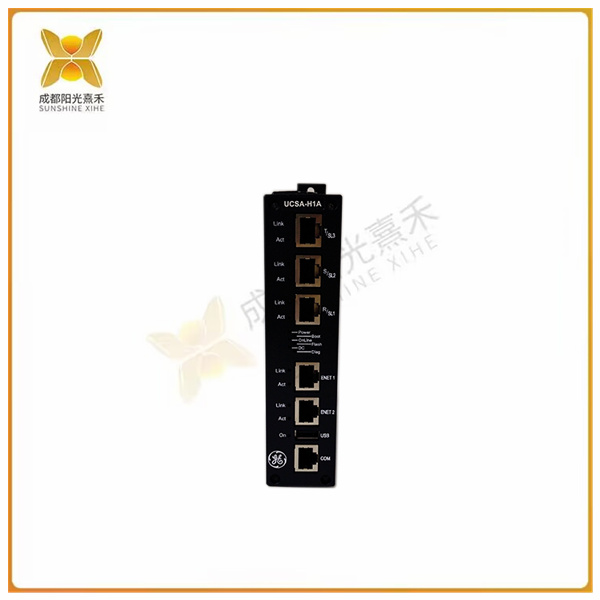

IS220UCSAH1A 的前面板有六個母插孔連接器、一個 USB 端口和多個 LED 指示燈。 這包括前面板左側標有 Link/Act 的 LED 指示燈，以及放置在面板中間的一排指示燈，分別標記為 Power、Boot、Online、Flash、DC 和 Diag。 插孔連接器用于以太網連接，允許主板與其他 MKVI、MKVIe 或 EX2100 激勵控件進行通信， 以及維護站和操作站。

 >>>>>型號:IS220UCSAH1A 處理器/控制器 用于連接通信

【英文介紹】

The IS220UCSAH1A is a processor/controller created by General Electric for the Mark VI system. The Mark VI platform is designed to manage gas or steam turbines and is released by GE as part of the Speedtronic family. It has an HMI (Human machine interface) and software designed for running heavy duty turbines, such as the CIMPLICITY graphical interface.

The IS220UCSAH1A is constructed of a single boxed assembly with a front panel for connecting communications, two screw mounting mounts on the back edge, and grille openings on three sides to allow air flow. The controller is designed for mounting on a base inside a cabinet. Up to three components can be installed next to each other for a compact arrangement that easily serves triple redundant systems.

The IS220UCSAH1A runs on the QNX operating system. It has a Freescale 8349,667 MHz processor. The board uses a power supply rated at 18-36 V dc and 12 W. The board can be used at temperatures from 0 to 65 degrees Celsius and does not require a fan for cooling even at the highest rated temperature. The board can be used for NFPA Class 1 Class 2 applications.

The front panel of the IS220UCSAH1A has six female jack connectors, a USB port, and multiple LED indicators. This includes LED indicators labeled Link/Act on the left side of the front panel, and a row of indicators placed in the middle of the panel labeled Power, Boot, Online, Flash, DC, and Diag. Jack connectors are used for Ethernet connectivity, allowing the motherboard to communicate with other MKVI, MKVIe, or EX2100 excitation controls, as well as maintenance and operation stations.
