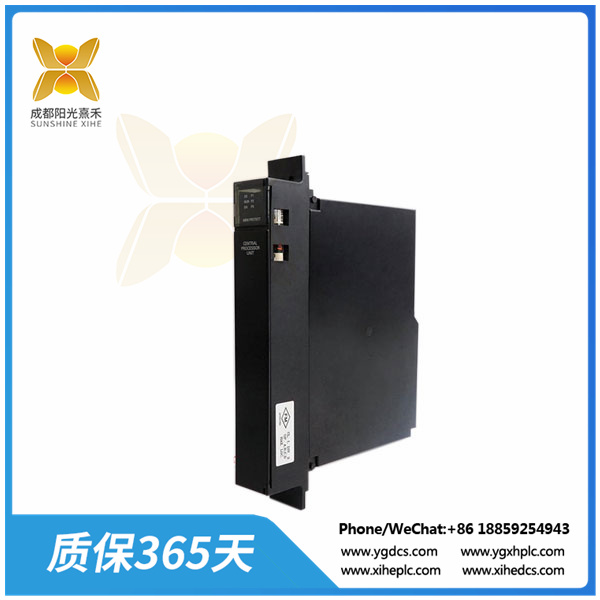

IC698CPE010 |  　中央處理器  | 負責讀取指令

　　型號:IC698CPE010

　　系列 ：PACSystem RX7i

　　描述： EX7i 中央處理器 (CPU)

　　通信端口 兩 (2) 個 LAN 端口;兩 (2) 個 RS232 / RJ45 串口

　　隨機存取存儲器 :(RAM) 10 兆字節

　　布爾執行速度 :每 1000 個布爾觸點/線圈 0.33 ms，其中

　　應用 :RX7i 系統

　　中央處理器(Central Processing Unit，簡稱CPU)是電子計算機的主要設備之一，電腦中的核心配件。其功能主要是解釋計算機指令以及處理計算機軟件中的數據。IC698CPE010 CPU是計算機中負責讀取指令，對指令譯碼并執行指令的核心部件。IC698CPE010 中央處理器主要包括兩個部分，即控制器、運算器，其中還包括高速緩沖存儲器及實現它們之間聯系的數據、控制的總線。電子計算機三大核心部件就是CPU、內部存儲器、輸入/輸出設備。中央處理器的功效主要為處理指令、執行操作、控制時間、處理數據。

　　以下是關于CPU的一些關鍵特性：

　　控制器：IC698CPE010 負責從內存中取出指令，并對指令進行譯碼;根據指令的要求，按時間的先后順序，負責向其它各部件發出控制信號，保證各部件協調一致地工作，一步一步地完成各種操作。

　　運算器：又稱算術邏輯單元(ALU)，是進行算術、邏輯運算的部件。

　　寄存器：CPU內部臨時存儲數據的部件，其重要性僅次于CPU的“大腦”核心運算部件——ALU(Arithmetic and Logic Unit，算術邏輯運算單元)。寄存器的大小是CPU性能的一個重要指標，它不僅關系到CPU內部的執行效率，也影響到整個微機系統的性能。

　　IC693APU300 GE 高速計數器

　　IC693CBL301 GE 總線擴展電纜

　　IC695CHS016 GE 接線板

　　IC694PWR330 GE 擴展電源模塊

　　IC695PSA040 GE 控制器

　　IC697CGR935 GE 處理器

　　IC698CHS017 GE 可編程邏輯控制器

　　IS200ECTBG1ADE GE 渦輪控制模塊

　　Model :IC698CPE010

　　Series: PACSystem RX7i

　　Description: EX7i Central Processing Unit (CPU)

　　Communication ports Two (2) LAN ports; Two (2) RS232 / RJ45 serial ports

　　Random access memory (RAM) 10 megabytes

　　Boolean execution speed: 0.33ms per 1000 Boolean contacts/coils, where

　　Application :RX7i system

　　Central Processing Unit (CPU) is one of the main devices of the electronic computer, the core accessories in the computer. Its main function is to interpret computer instructions and process data in computer software. IC698CPE010 CPU is the core part of the computer responsible for reading instructions, decoding instructions and executing instructions. IC698CPE010 central processing unit mainly includes two parts, that is, the controller, the arithmetic device, which also includes the cache memory and the data and control bus that realize the connection between them. The three core components of an electronic computer are CPU, internal memory, and input/output devices. The main functions of the central processor are to process instructions, perform operations, control time, and process data.

　　Here are some key features about the CPU:

　　Controller: IC698CPE010 is responsible for retrieving instructions from memory and decoding the instructions; According to the requirements of the instructions, in order of time, responsible for sending control signals to other components to ensure that the components work in harmony and complete various operations step by step.

　　Arithmetic unit: Also known as arithmetic logic unit (ALU), is a component for arithmetic and logic operations.

　　Register: A part of the CPU that temporarily stores data, second only to the CPU's "brain" core Arithmetic Unit, the ALU (Arithmetic and Logic Unit). The size of register is an important indicator of CPU performance, which is not only related to the execution efficiency of CPU, but also affects the performance of the whole microcomputer system.
