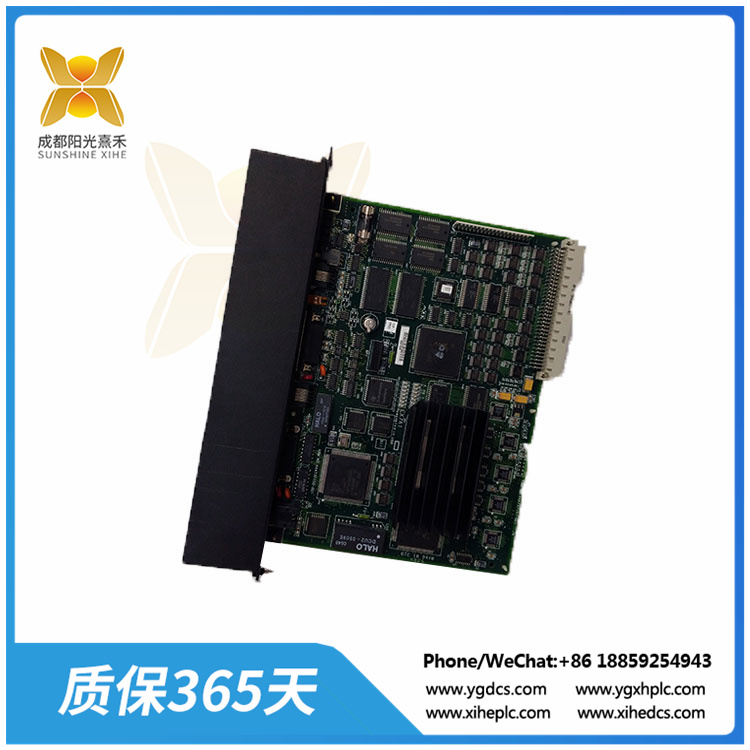

IC697CPU771 |可擴展可編程邏輯控制器CPU | 能夠?qū)崟r(shí)控制工業機械和過程

零件編號 ：IC697CPU771

　　系列 :90-70系列

　　產品類型: CPU模塊

　　兼容性 :GE Fanuc 90-70 PLC

　　產品描述 :單插槽 CPU

　　處理器類型: 80C816DX微處理器

　　產品描述

　　該IC697CPU771由GE自動化與控制公司制造，是一款單插槽、可擴展可編程邏輯控制器CPU，能夠?qū)崟r(shí)控制工業機械和過程。 為了與 I/O 和“智能選件”模塊通信，使用機架安裝背板。

　　該IC697CPU771具有 12MHz 80C186 微處理器，每個布爾函數能夠?qū)崿F(xiàn) 0.4 微秒。該器件支持高達 8K 模擬 I/O 和 2K I/O 的任意混合。該器件還支持多種智能選件模塊，包括 IC697 LAN 接口模塊、協處理器模塊、通信模塊、IC660 和 IC661 總線控制器 I/O 模塊，以及分立和模擬 IC697 I/O 模塊。

　　IC697CPU771由 MS-DOS 或從 Windows 95 或 Windows NT 操作系統運行的軟件程序配置。DIP 開關和跳線均不用于器件編程。通過串行、并行或以太網接口將設備連接到運行上述軟件的計算機。為了安全起見，設備配置受密碼保護。

　　IC697CPU771需要內存擴展板來存儲用戶和程序數據。此擴展板最多可容納 512 KB 的內存。存儲器由板載CMOS電池維持。安裝內存擴展板時，需要由連接的編程計算機初始化 CPU。

　　Part number: IC697CPU771

　　Series :90-70 series

　　Product type: CPU module

　　Compatibility :GE Fanuc 90-70 PLC

　　Product Description: Single socket CPU

　　Processor type: 80C816DX microprocessor

　　Product description

　　The IC697CPU771, manufactured by GE Automation & Controls, is a single-socket, scalable programmable logic controller CPU capable of controlling industrial machinery and processes in real time. To communicate with the I/O and Smart Options modules, a rack-mounted backplane is used.

　　The IC697CPU771 has a 12MHz 80C186 microprocessor capable of achieving 0.4 microseconds per Boolean function. The device supports any mixture of up to 8K analog I/O and 2K I/O. The device also supports a variety of intelligent option modules, including IC697 LAN interface modules, coprocessor modules, communication modules, IC660 and IC661 bus controller I/O modules, and discrete and analog IC697 I/O modules.

　　IC697CPU771 is configured by MS-DOS or a software program running from Windows 95 or Windows NT operating systems. Neither DIP switches nor jumpers are used for device programming. Connect the device to the computer running the above software through a serial, parallel, or Ethernet interface. For security reasons, the device configuration is password protected.

　　The IC697CPU771 requires a memory expansion board to store user and program data. This expansion board can hold up to 512 KB of memory. The memory is maintained by an onboard CMOS battery. When installing the memory expansion board, the CPU needs to be initialized by the connected programming computer.
