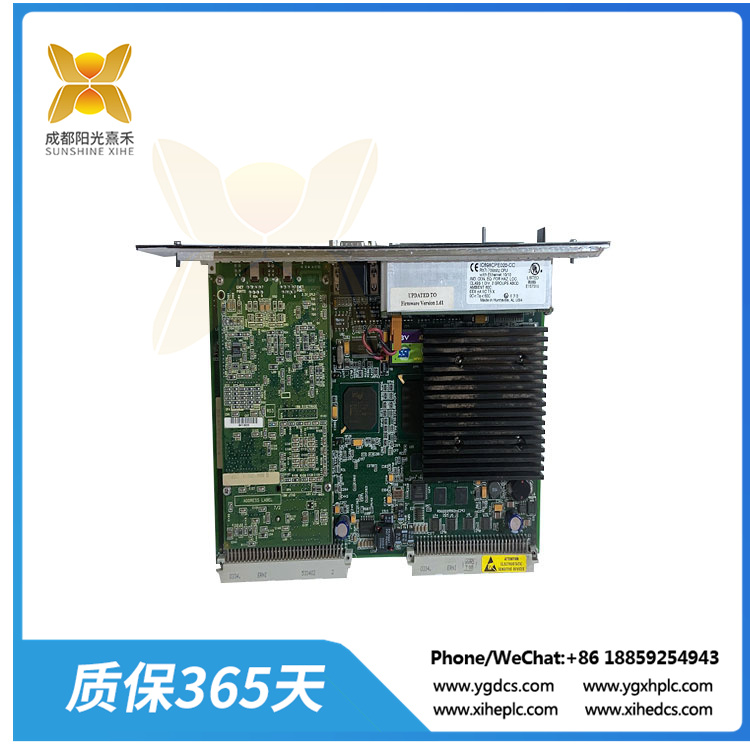

IC697CPU781 | 90-70系列 可編程邏輯控制器CPU
系列 ：90-70系列
零件編號： IC697CPU781
產品類型 ：CPU模塊
兼容性 ：GE Fanuc 90-70 PLC
當前消耗： 1.6 安培
產品描述
IC697CPU781是一個可編程邏輯控制器CPU，可安裝在單個機架插槽中。 為了與各種“智能選項”模塊進行通信，使用了帶有多個連接器的機架式背板。使用具有三個位置的撥動控制開關或帶有特定軟件的連接計算機來操作此設備。
IC697CPU781有一個16MHz的微處理器。布爾函數每 0.4 微秒計算一次。該器件支持高達 8K 的模擬 I/O，以及 12K 輸入和輸出的任意混合。支持多種“智能選項”模塊，例如 IC697 系列分立和模擬模塊。還支持 IC697 LAN 模塊以及用于 IC660 和 IC661 模塊的總線控制器。
要存儲用戶和配置信息，需要擴展板。該板提供高達 512 KB 的易失性存儲器(由 CMOS 電池提供)和高達 256 KB 的非易失性閃存 (NVRAM)。該設備的日歷和時鐘也由CMOS電池維持。
IC697CPU781是用連接的計算機上的軟件編程的，而不是DIP開關或跳線。在某些操作系統(如 MS-DOS、Windows 95 和 Windows NT)上運行的特殊程序用于對此設備進行編程。與此連接的計算機的并行串行連接是可能的，以太網連接也是如此。以太網連接需要安裝以太網控制器或 2 類以太網接口。用于保護配置數據和設置的選項包括內存保護開關或編程軟件中的密碼。
IC200ALG262J 差分電流模塊
IC200ALG322 模塊 驅動換能器
IC200MDL240B 離散輸入模塊
IC200MDL240B 分布式輸入/輸出
IC200MDL741 離散輸出模塊
IC200MDL930 IC200MDL240B 輸出模塊 網絡接口單元
IC220PBI002 IC200ALG262J 網絡接口單元
IC609TCU1100B 可編程邏輯控制器
Series: 90-70 series
Part number: IC697CPU781
Product type: CPU module
Compatibility: GE Fanuc 90-70 PLC
Current consumption: 1.6 amps
Product description
The IC697CPU781 is a programmable logic controller CPU that can be installed in a single rack slot. In order to communicate with the various "smart options" modules, a rack-mounted backplane with multiple connectors is used. Operate this device using a toggle control switch with three positions or a connected computer with specific software.
The IC697CPU781 has a 16MHz microprocessor. The Boolean function is calculated every 0.4 microseconds. The device supports analog I/O up to 8K, as well as any mixture of 12K inputs and outputs. Support for a variety of "smart options" modules, such as the IC697 series discrete and analog modules. The IC697 LAN module and bus controllers for the IC660 and IC661 modules are also supported.
To store user and configuration information, you need an expansion board. The board offers up to 512 KB of volatile memory (supplied by a CMOS battery) and up to 256 KB of non-volatile flash memory (NVRAM). The device's calendar and clock are also maintained by a CMOS battery.
The IC697CPU781 is programmed with software on a connected computer, not a DIP switch or jumper. Special programs running on some operating systems, such as MS-DOS, Windows 95, and Windows NT, are used to program this device. Parallel serial connections to this connected computer are possible, as are Ethernet connections. An Ethernet controller or Class 2 Ethernet interface is required for Ethernet connection. Options for protecting configuration data and Settings include memory protection switches or passwords in programming software.
