>>>>>型號:IS200DTAIH1ABB 具有以太網通信功能 包括板載診斷

【功能描述】

IS200DTAIH1ABB是為Mark VI系統創建的GE組件。Mark VI是以Speedtronic系列名稱發布的燃?xì)?蒸汽輪機管理系統。自1960年代以來，該系列一直用于渦輪機管理的各種迭代。Mark VI具有以太網通信功能，并在硬件和軟件中包括板載診斷（限制檢查）。

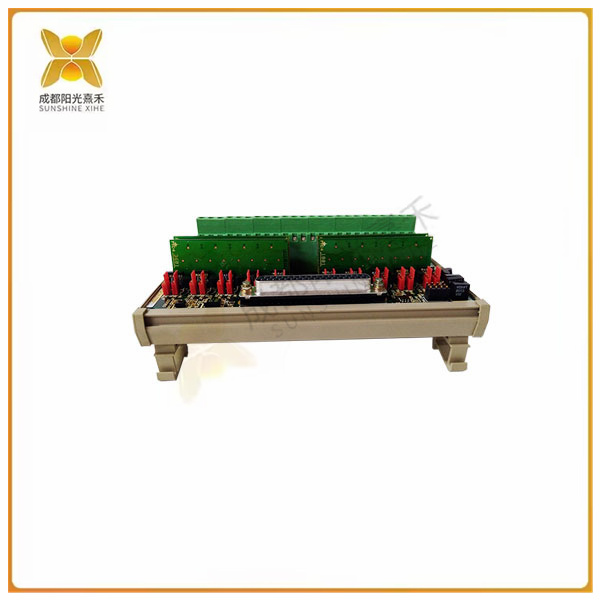

IS200DTAIH1ABB是單工模擬輸入/輸出端子板。它是一款用于模擬信號的緊湊型輸入板。該板安裝在塑料支架中，允許將PCB安裝在DIN導軌上。該板有10個模擬輸入和2個模擬輸出。輸出為0-20mA，但可以通過重新配置跳線來配置為0-200mA電流。

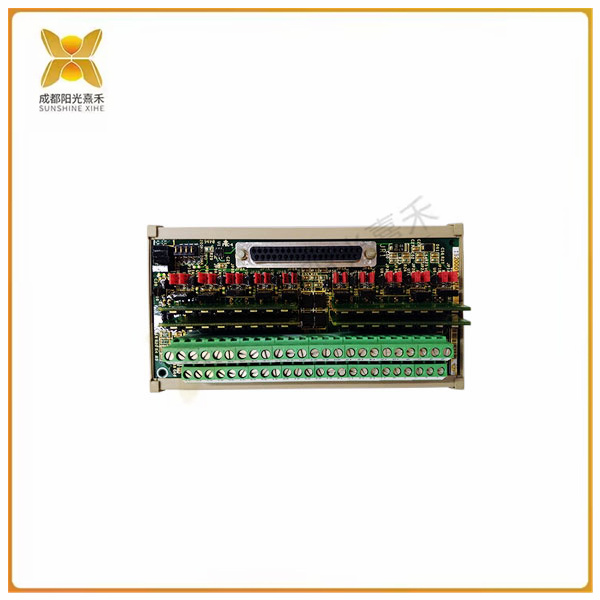

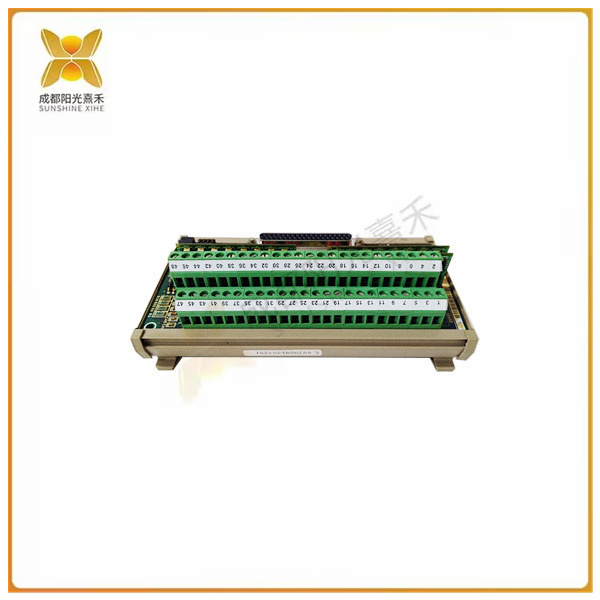

IS200DTAIH1ABB有一個帶閂鎖緊固件的37針連接器。這被標記為JR1。該板有一個帶有48個螺釘連接的端子板（TB1）。該端子排永久安裝在電路板上。接線端子上通常使用#18 AWG電線的屏蔽雙絞線。請注意，螺釘43/44被指定為接地（SCOM）連接。地線應盡可能短。該板有21個跳線開關;這些標記為JP1A/B-JP10A/B（20）加JP0。該板還包括各種電容器、電阻器和集成電路，以及四個小型子面板。電路板上的跳線用于配置電流和電壓。

 >>>>>型號:IS200DTAIH1ABB 具有以太網通信功能 包括板載診斷

【英文介紹】

The IS200DTAIH1ABB is a GE component created for the Mark VI system. The Mark VI is a gas/steam turbine management system released under the Speedtronic family name. The series has been used in various iterations of turbine management since the 1960s. The Mark VI has Ethernet communication capabilities and includes onboard diagnostics (limit checks) in both hardware and software.

The IS200DTAIH1ABB is a simplex analog input/output terminal board. It is a compact input board for analog signals. The board is mounted in a plastic bracket, allowing the PCB to be mounted on a DIN rail. The board has 10 analog inputs and 2 analog outputs. The output is 0-20mA, but can be configured for 0-200mA current by reconfiguring the jumper.

The IS200DTAIH1ABB has a 37-pin connector with latch fasteners. This is labeled JR1. The board has a terminal board (TB1) with 48 screw connections. The terminal block is permanently installed on the circuit board. Shielded twisted pair of #18 AWG wire is usually used on the terminal. Note that screws 43/44 are designated for ground (SCOM) connections. Ground cables should be as short as possible. The board has 21 jumper switches; These are labeled JP1A/B-JP10A/B (20) plus JP0. The board also includes a variety of capacitors, resistors and integrated circuits, as well as four small sub-panels. Jumpers on the board are used to configure current and voltage.
