IS200TBCIH1CBC | 觸點輸入端子板 | 用于控制和自動化蒸汽
模型:IS200TBCIH1CBC
功能描述:觸點輸入端子板
—輸入電壓:24VDC
—工作溫度:-40℃~85℃
—通信協議:Modbus TCP/IP
產品描述
IS200TBCIH1CBC觸點輸入端子板是由通用電氣或GE公司開發的Mark VI系列的一個組成部分。 Mark VI用于控制和自動化蒸汽和燃?xì)廨啓C(jī)的運行。 IS200TBCIH1C是PCB或印刷電路板。

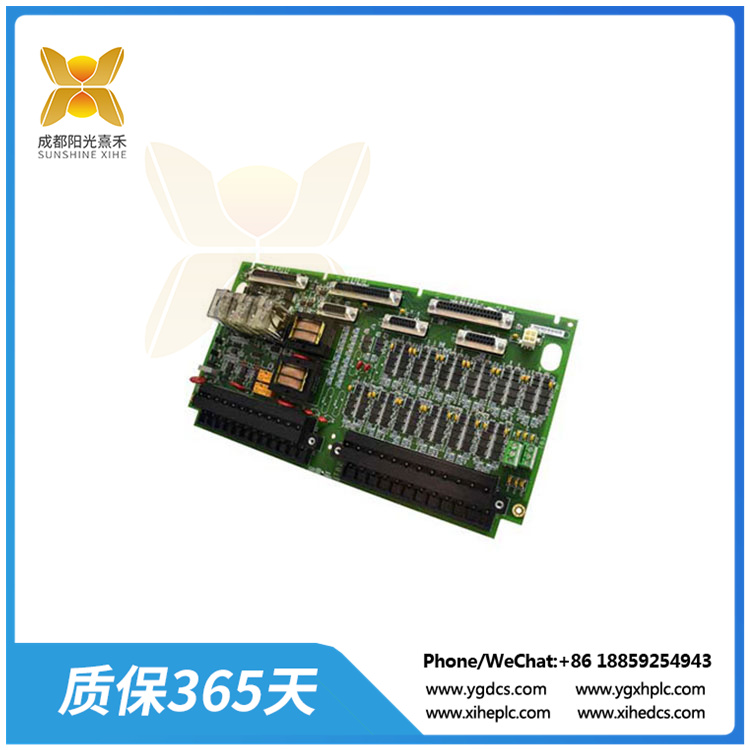

IS200TBCIH1CBC表面包含許多電子元件。 這些組件中最引人注目的是兩個大型黑色端子，每個端子包含24個端子。 每個終端都用白色字體標記數字1(1)到48(48)。 在這兩個(2)端子的右邊是一長串固體紅色MOV或金屬氧化物壓敏電阻。 金屬氧化物壓敏電阻是圓形的。 兩個(2)純白色連接器位于中間IS200TBCIH1C的頂部。 沿著IS200TBCIH1C的右邊緣是一排三(3)黑色和銀色插孔連接器端口垂直對齊。 IS200TBCIH1C的中心充滿了許多銀色金屬制成的小部件，看起來像非常小的矩形。 這許多元件被稱為二極管。 所述二極管以每行四(4)個二極管的平行行排列。 在這些二極管的左側，在白色連接器和黑色和銀色連接器端口之間對齊，是一條小的垂直電阻線。 這些電阻器有藍、黑、白三種條紋。 兩(2)個額外的垂直行也可以在這個頂部行下面找到。
Model: IS200TBCIH1CBC
Function Description: Contact input terminal board
– Input voltage :24VDC
– Operating temperature :-40 ° C ~85 ° C
– Communication protocol :Modbus TCP/IP
Product description
The IS200TBCIH1CBC Contact input terminal board was developed by General Electric or GE as a component of the Mark VI series. The Mark VI is used to control and automate the operation of steam and gas turbines. IS200TBCIH1C is a PCB or printed circuit board.
The IS200TBCIH1CBC surface contains many electronic components. The most striking of these components are two large black terminal blocks, each containing 24 terminals. Each terminal is marked with the numbers one (1) through forty-eight (48) in white font. To the right of these two (2) terminals is a long string of solid red MOV or metal oxide varistors. Metal oxide varistors are circular. Two (2) pure white connectors are located on top of the middle IS200TBCIH1C. Along the right edge of the IS200TBCIH1C is a row of three (3) black and silver jack connector ports aligned vertically. The center of the IS200TBCIH1C is filled with many small parts made of silver metal that look like very small rectangles. These many components are called diodes. The diodes are arranged in parallel rows of four (4) diodes per row. On the left side of these diodes, aligned between the white connector and the black and silver connector ports, is a small vertical resistance line. These resistors come in blue, black and white stripes. Two (2) additional vertical rows can also be found below this top row.
