IS200TBCIH1CBC  |  觸點端子板 |  用于控制工業環境中蒸汽輪機的所有操作

　　模型:IS200TBCIH1CBC

　　輸入電阻(負載)30 MΩ(DC)，最小值

　　斷電電阻30kq (DC)，典型

　　共模抑制- 80db (DC-100Hz)

　　模型

　　常用型號范圍-12V至+12V峰值

　　引腳對引腳隔離200KQ，典型

　　產品描述

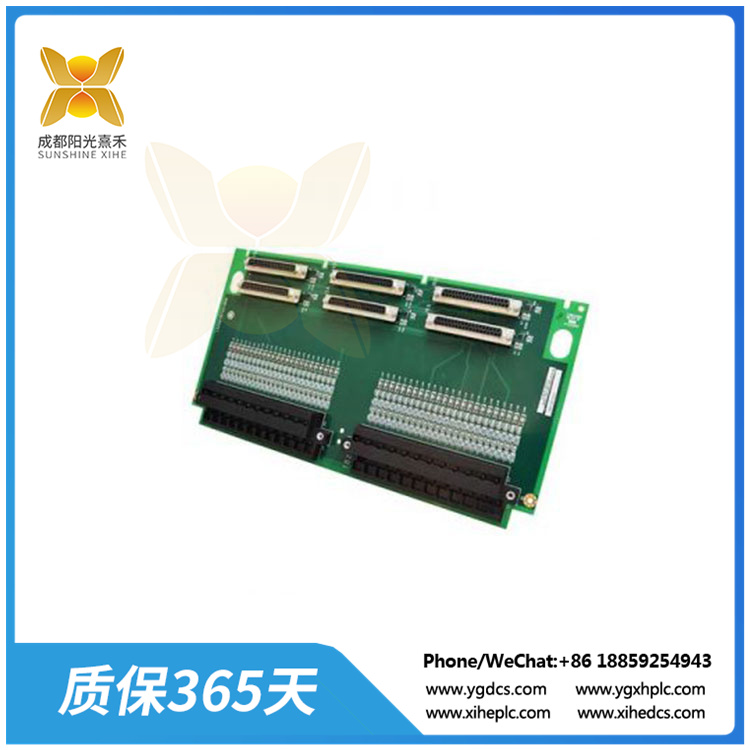

　　IS200TBCIH1CBC是一種稱為觸點端子板的設備。這是為Mark VI系列創建的PCB。Mark VI系列是通用電氣(GE)制造的Mark系列的幾個系列之一。這些系統已被開發用于控制工業環境中燃氣和蒸汽輪機的所有操作。

　　IS200TBCIH1CBC是一個長電路板，有各種不同的電子元件。兩個非常大的黑色純終端占據了IS200TBCIH1BBC的左半部分。這些端子有48個銀金屬端子。這些終端由一系列從1到48的數字標識，每個終端塊中有24(24)個。IS200TBCIH1CBC的右邊是一長串圓形電容器。這些電容器是穩定的紅色。在這些端子旁邊布置有二十五(25)個電容器。位于IS200TBCIH1BBC的右邊緣是三個插孔連接器端口，一個是銀色的，一個是黑色的。每個連接器端口的右側是一個非常小的集成電路，標有字母u。另外兩個白色連接器位于IS200TBCIH1CBC頂部的中心。兩個連接器都包含三(3)個端口，可用于將其他組件連接到IS200TBCIH1CBC。在PCB中心的右側是一長排微小的電阻。這條線幾乎跨越了IS200TBCIH1CBC的整個長度。

　　Model: IS200TBCIH1CBC

　　Input resistance (load)30 MΩ(DC), minimum value

　　Power off resistance 30 KQ (DC), typical

　　Common mode rejection -80 dB(DC-100Hz)

　　model

　　Common model range -12V to +12V peak

　　Pin to pin isolation 200KQ, typical

　　Product description

　　The IS200TBCIH1CBC is a device called a contact terminal board. This is a PCB created for the Mark VI series. The Mark VI series is one of several series that make up the Mark Series by General Electric or GE. These systems have been developed to control all operations of gas and steam turbines in industrial environments.

　　The IS200TBCIH1CBC is a long circuit board with a variety of different electronic components. Two (2) very large black pure terminals occupy the left half of the IS200TBCIH1BBC. These terminals have forty-eight (48) silver metal terminals. These terminals are identified by a series of numbers from one to forty-eight, with twenty-four (24) in each terminal block. To the right of the IS200TBCIH1CBC is a long string of circular capacitors. These capacitors are steady red. Twenty-five (25) capacitors are arranged next to these terminals. Located on the right edge of the IS200TBCIH1BBC are three jack connector ports, one in silver and one in black. To the right of each connector port is a very small integrated circuit labeled with the letter U. The other two (2) white connectors are located in the center of the top of the IS200TBCIH1CBC. Both connectors contain three (3) ports that can be used to connect other components to the IS200TBCIH1CBC. On the right side of the PCB center is a long row of tiny resistors. This line spans almost the entire length of IS200TBCIH1CBC.
