【功能描述】

IS200TBCIH2CAA是GE公司生產的單板元器件。

IS200TBCIH2CAA是一個小板設計為馬克六系統的終端板。Mark

VI是Speedtronic Mark系列中用于控制可編程邏輯控制器（PLC）或分布式控制系統（DCS）的微處理器。

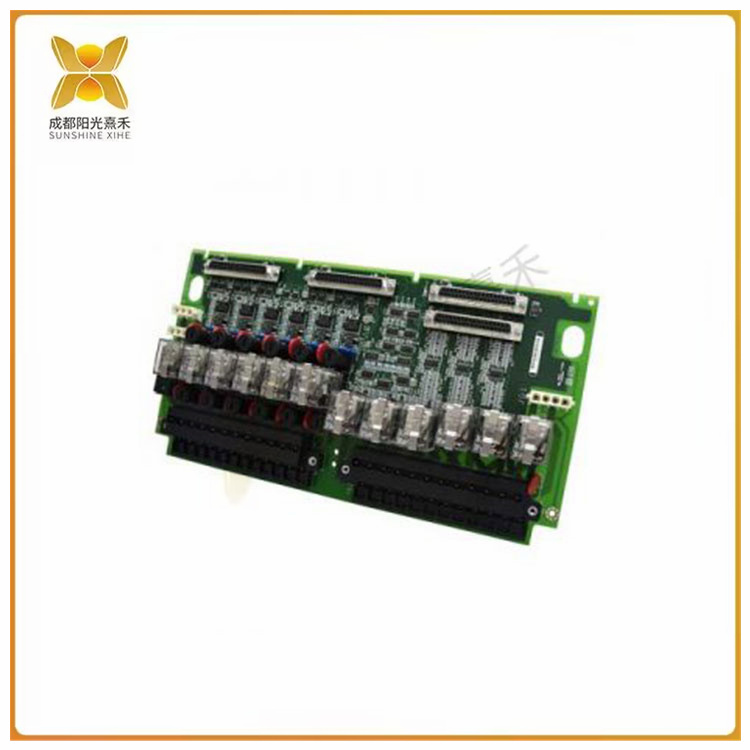

IS200TBCIH2CAAAA是一款TBCI(Contact Input Group Isolation)端子板。該板由兩個端子塊和三個電纜連接器組成。端子排(TB1/TB2)各有24個螺釘連接，或12個觸點。連接到這些觸點使用多達12根AWG線。這些板是屏障型端子塊，可以從板上拔出進行維護。線纜連接器為DC-37(母頭)連接器，帶鎖扣。這些標為JT1/JS1/JR1。電路板有兩個插頭連接器用于電源輸入。這些標簽是JE1/JE2。電路板由金屬框架包圍，金屬框架包括屏蔽端子帶/排。

IS200TBCIH2CAAAA具有降低高頻噪聲和抑制每個輸入浪涌的濾波器。一對端子用于每個輸入，其中一個螺釘提供正直流電源，第二個點提供返回到電路板。前21個輸入的電流負載為每點2.5 mA。最后三個有10毫安的負載。主板沒有硬件設置或跳線。診斷信息可以使用GE出版物GEH-6421找到。本出版物也有更多關于電路板安裝和操作的信息。

單板元器件是印制電路板組裝中的元器件。

單板元器件是構成電路的基礎，是電子設備中不可或缺的一部分。單板元器件的種類繁多，包括電阻、電容、電感、二極管、三極管、場效應管、集成電路等。

單板元器件的選用和設計需要考慮電路的性能、功耗、尺寸、成本等多個因素。同時，單板元器件的制造和測試也需要嚴格的質量控制，以確保其質量和可靠性。
