>>>>>型號:IS210AEBIH1BED PCB元件 監測渦輪機的振動
【功能描述】
IS210AEBIH1BED是GE為Mark VI系統設計的PCB元件。該系統專為燃?xì)廨啓C(jī)或蒸汽輪機管理而設計，是GE在“Speedtronic”系列下發布的最后系統之一，這是GE從1960年代到世紀之交最成功的渦輪機管理系列。Mark VI包括以太網通信功能。它定期監測渦輪機的振動、軸電壓積聚、火焰檢測和溫度問題等問題。它使用通用輸入/輸出以及特定于應用的I/O來實現這一點。

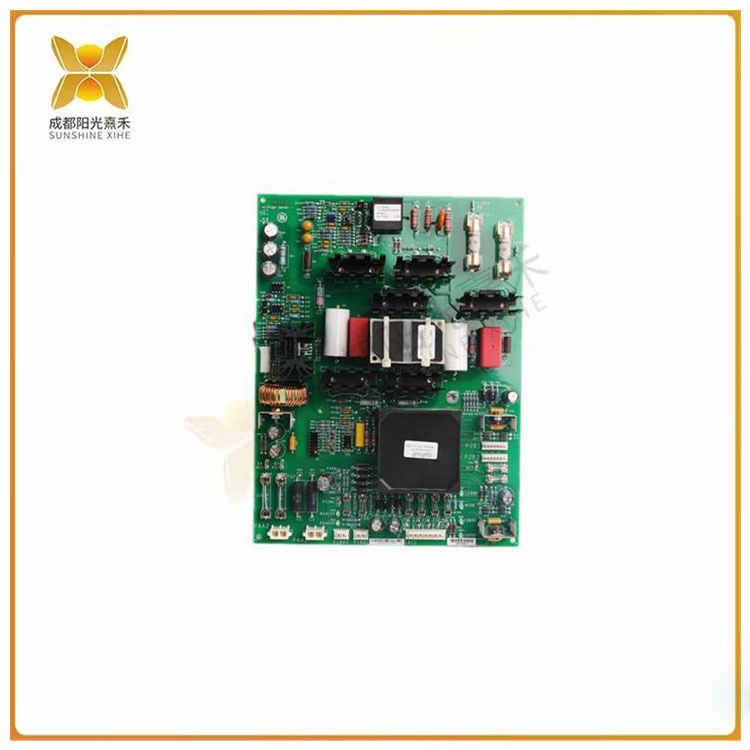

IS210AEBIH1BED是電源板組件。這是一個組件密集的小矩形板。該板的所有四個角都經過鉆孔，并且在板體內的幾個地方也有工廠制造的鉆孔痕跡。該板由變壓器、電源和電感線圈組成。該板還有四對不同尺寸的保險絲，以及位于左邊緣附近的一條單獨的四根保險絲線。
IS210AEBIH1BED具有由金屬膜制成的電阻器。它使用壓敏電阻元件，以及由陶瓷材料和聚酯乙烯基制成的電容器。該板的表面上有幾個高壓電解電容器，可以單獨放置，也可以成對放置。該板還具有11個散熱器、多個刺接連接器、插頭連接器和從3針到8針的接頭連接器，以及LED指示燈。該板具有多個集成電路，并使用TP測試點和晶體管。
>>>>>型號:IS210AEBIH1BED PCB元件 監測渦輪機的振動
【英文介紹】
The IS210AEBIH1BED is a PCB component designed by GE for Mark VI systems. Designed specifically for gas turbine or steam turbine management, the system was one of the last systems released by GE under the "Speedtronic" family, GE's most successful family of turbine management from the 1960s to the turn of the century. The Mark VI includes Ethernet communication. It regularly monitors the turbine for issues such as vibration, shaft voltage build-up, flame detection and temperature issues. It does this using generic input/output as well as application-specific I/O.
The IS210AEBIH1BED is a power module. This is a small rectangular plate with dense components. All four corners of the board have been drilled, and there are also factory-made bore marks in several places inside the board. The board consists of a transformer, a power supply and an inductor. The board also has four pairs of fuses of different sizes, as well as a separate four fuse wires located near the left edge.
The IS210AEBIH1BED has a resistor made of a metal film. It uses varistor elements, as well as capacitors made of ceramic materials and polyester vinyl. There are several high-voltage electrolytic capacitors on the surface of the plate, which can be placed individually or in pairs. The board also features 11 heat sinks, multiple spline connectors, plug connectors, and splice connectors from 3 to 8 pins, as well as LED indicators. The board has multiple integrated circuits and uses TP test points and transistors.
