【功能描述】
IS210AEPSG1AFC是GE為Mark VI系統制造的電路板組件。 作為通用電氣長期流行的 Speedtronic 系列的一部分，MKVI 是重型蒸汽輪機或燃?xì)廨啓C(jī)的管理系統。該系列由 GE 從 1969 年（隨著 Mark I 的發布）到 1990 年代（隨著 Mark VI 和 Mark VIe 的發布）生產。Mark VI使用特定應用和通用輸入/輸出定期監測渦輪機，以解決軸電壓升高、溫度問題、火焰檢測和振動等問題。

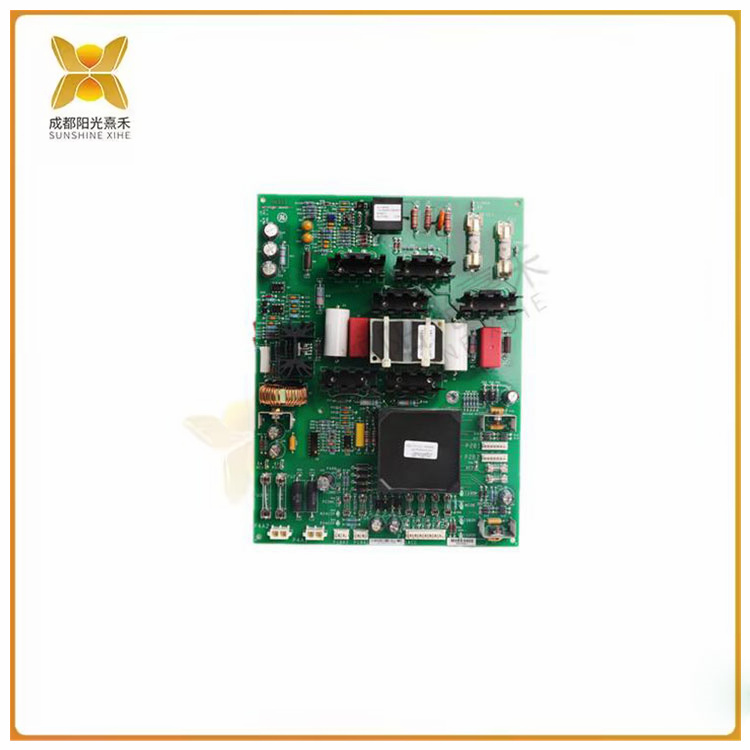

IS210AEPSG1AFC是一個具有大量組件的小型矩形板。該板用作電源板。該板在每個角上都鉆孔，并在板體內的多個位置鉆孔。 IS210AEPSG1AFC具有變壓器、電感線圈和電源等組件。該板還有十二個保險絲。它們以四對和四對兩行的形式放置在板上。大多數保險絲都放置在快速連接保險絲座中。
該IS210AEPSG1AFC具有壓敏電阻元件。壓敏電阻是可變電阻器。該板有幾個金屬膜電阻器。電路板上的電容器包括由聚酯乙烯基、陶瓷以及高壓電解電容器制成的電容器。該板包括刺接式連接器、散熱器、插頭連接器、接頭連接器和 LED 指示燈。晶體管通常位于散熱器附近。該板還使用 TP 測試點和集成電路。有關安裝過程的詳細信息，請參閱制造商出版物。
>>>>>型號:IS210AEPSG1AFC 電路板組件 解決軸電壓升高
【英文介紹】
The IS210AEPSG1AFC is a circuit board component manufactured by GE for the Mark VI system. Part of GE's long-popular Speedtronic series, the MKVI is a management system for heavy-duty steam or gas turbines. The series was produced by GE from 1969 (with the release of the Mark I) through the 1990s (with the release of the Mark VI and the Mark VIe). Mark VI regularly monitors turbines using application-specific and general-purpose inputs/outputs to address issues such as increased shaft voltage, temperature issues, flame detection, and vibration.
The IS210AEPSG1AFC is a small rectangular board with a large number of components. The board is used as a power supply board. The plate is drilled at each corner and drilled at multiple locations inside the plate. The IS210AEPSG1AFC has components such as transformer, inductor and power supply. The board also has twelve fuses. They are placed on the board in the form of four pairs and four pairs of two rows. Most fuses are placed in a quick-connect fuse holder.
The IS210AEPSG1AFC has a varistor element. Varistors are variable resistors. The plate has several metal film resistors. Capacitors on the circuit board include capacitors made of polyester vinyl, ceramics, and high voltage electrolytic capacitors. The board includes a splice connector, heat sink, plug connector, splice connector, and LED indicator. Transistors are usually located near heat sinks. The board also uses TP test points and integrated circuits. For more information about the installation process, see manufacturer publications.
