>>>>>型號:IS210SAMBH2AA 印刷電路板或PCB 聲學監測模塊

【功能描述】

IS210SAMBH2AA是一種印刷電路板或PCB，最初由通用電氣公司為該公司的Mark VI和Mark VIe渦輪機控制系統生產。這兩個系統均采用GE的三重模塊化冗余（TMR）架構設計，該架構為渦輪機關鍵控制和保護參數提供備份，以提高系統的整體可靠性。

該IS210SAMBH2AA用作聲學監測模塊。使用時，該電路板通過位于一個長板邊緣的端子排向Mark VI（Mark VIe）聲學監測系統添加額外的18個輸入。這些燈帶提供用于兩線輸入的附件。該板還具有用于類似輸出的附件。輸出監控電壓信號。

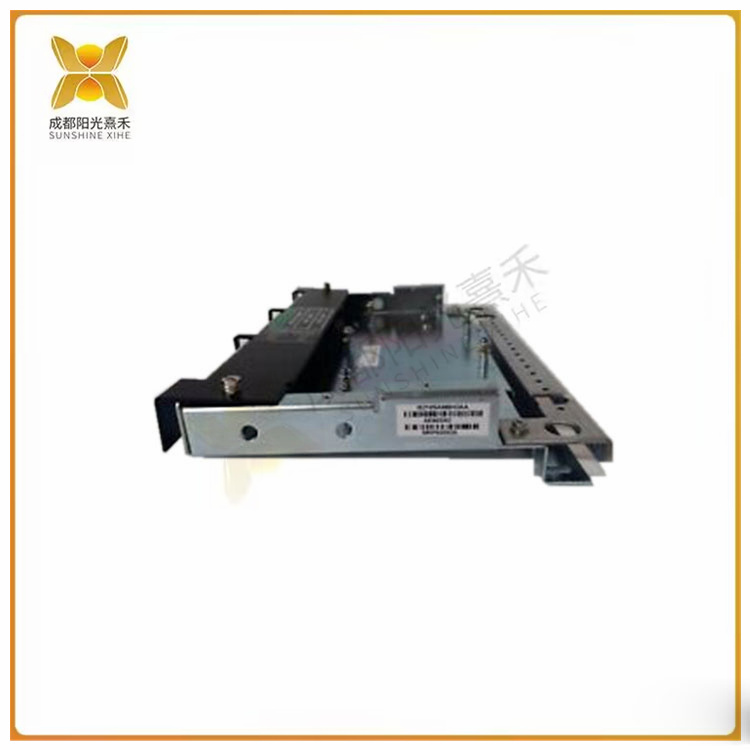

該IS210SAMBH2AA內置于DIN導軌內。這圍繞著電路板的所有四個邊緣;但是，法蘭在三個邊上向上移動，在一條邊上向下移動。一些法蘭上鉆有槽口或安裝孔。電路板本身標有許多代碼，還包括母連接器。該板還標有通用電氣標志。

有關IS210SAMBH2AA電路板的更多信息可以通過通用電氣的原始文檔獲取。這包括GE手冊、數據表和產品指南。在開始任何類型的安裝、維護或其他過程之前，使用此信息可以更深入地了解本產品和整個系統。

 >>>>>型號:IS210SAMBH2AA 印刷電路板或PCB 聲學監測模塊

【英文介紹】

The IS210BPPBH2BMD is a Mark VI board assembly manufactured by General Electric. Designed for steam or gas turbine management, the MKVI is the fifth Speedtronic system released by GE. From the 1960s until the turn of the century, the Speedtronic series was GE's main management product line. The system includes a central control module that is connected to the terminal board as well as an operator interface that allows access to turbine data, programmable maintenance tools and alarm status.

The IS210BPPBH2BMD is a small auxiliary board that can be connected to a larger WETA board. The IS210BPPBH2BMD is attached to its motherboard using screws threaded through four drill holes. They are located near each corner of the board. Screw into the bracket and then into the motherboard below. There are small incisions on all three edges of the plate.

The IS210BPPBH2BMD is filled with two female plugs. One of them is three plugs. The other plug is a long, narrow plug. The board also has two female jack connectors. The board consists of a transformer, a transistor, an inductor coil, and two crystals/oscillators. It also features two LED components that are placed side by side along one edge of the board.

The IS210BPPBH2BMD is marked with the GE logo. It also comes with codes such as Type 6, FA/00, and E99006. For more information on board components, installation procedures, and safety recommendations, please refer to the manufacturer's publications.
