【功能描述】
IS200JPDDG1AAA是通用電氣作為Mark VI系統的一部分創建的PCB組件。Mark VI由GE發布，作為其用于燃?xì)廨啓C(jī)和蒸汽輪機管理的Speedtronic系列的一部分，該系列始于1960年代Mark I的發布。Mark VI通常由125Vdc電池系統供電。但是，它可以由120/240VAC電源供電，使用帶有隔離變壓器的電源轉換器將功率整流至125Vdc。對于燃?xì)廨啓C(jī)，點火變壓器需要單獨的電源，短路保護為20A或更低。

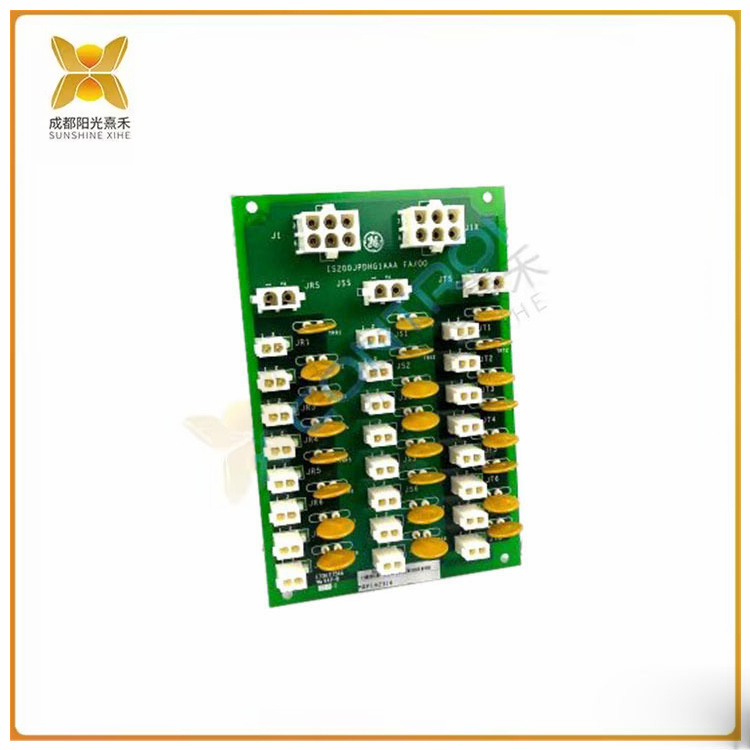

IS200JPDDG1AAA是高密度配電卡。該板為每個I/O包提供單獨的受保護控制電源?？梢允褂肑1和J1X連接器將多個IS200JPDDG1AAA板菊花鏈連接在一起;但是，完成此操作后，輸入電流不能超過第一個JPDH J1插頭的額定值。該IS200JPDDG1AAA可用于一些危險場所，包括1類2區、1類2區和ATEX。用戶必須遵守UL/ATEX HazLoc的接線和維護要求。
IS200JPDDG1AAA有24個壓敏電阻，分成三排，每排8個。它有24個2位插頭，分為三排，每排8個（JR1-JR8、JS1-JS8、JT1-JT8）。該板還具有另外三個2位插頭，分別標記為JR5、JS5和JT5。它有兩個標有J1和J1X的6位插頭。有關該板及其組件的更多信息，請參見GE出版物GEI-100861。
>>>>>型號:IS200JPDDG1AAA 創建的PCB組件 電池系統供電
【英文介紹】
The IS200JPDDG1AAA is a PCB component created by General Electric as part of the Mark VI system. The Mark VI was released by GE as part of its Speedtronic line for gas turbine and steam turbine management, which began with the release of the Mark I in the 1960s. The Mark VI is typically powered by a 125Vdc battery system. However, it can be powered from a 120/240VAC supply, using a power converter with an isolation transformer to rectifying the power to 125Vdc. For gas turbines, the ignition transformer requires a separate power supply with short circuit protection of 20A or less.
The IS200JPDDG1AAA is a high-density power distribution card. The board provides a separate protected control power supply for each I/O packet. Multiple IS200JPDDG1AAA boards can be Daisy chained together using J1 and J1X connectors; However, after this is done, the input current cannot exceed the rating of the first JPDH J1 plug. The IS200JPDDG1AAA can be used in a number of hazardous locations, including Class 1 Zone 2, Class 1 Zone 2 and ATEX. Users must comply with UL/ATEX HazLoc wiring and maintenance requirements.
The IS200JPDDG1AAA has 24 varistors divided into three rows of 8 each. It has 24 2-position plugs, divided into three rows of 8 each (JR1-JR8, JS1-JS8, JT1-JT8). The board also has three additional 2-position plugs, labeled JR5, JS5, and JT5. It has two 6-digit plugs labeled J1 and J1X. For more information about the board and its components, see the GE publication GEI-100861.
