>>>>>型號:IS200TBCIH2CAA 電路板組件 觸點輸入組隔離 端子板

【功能描述】

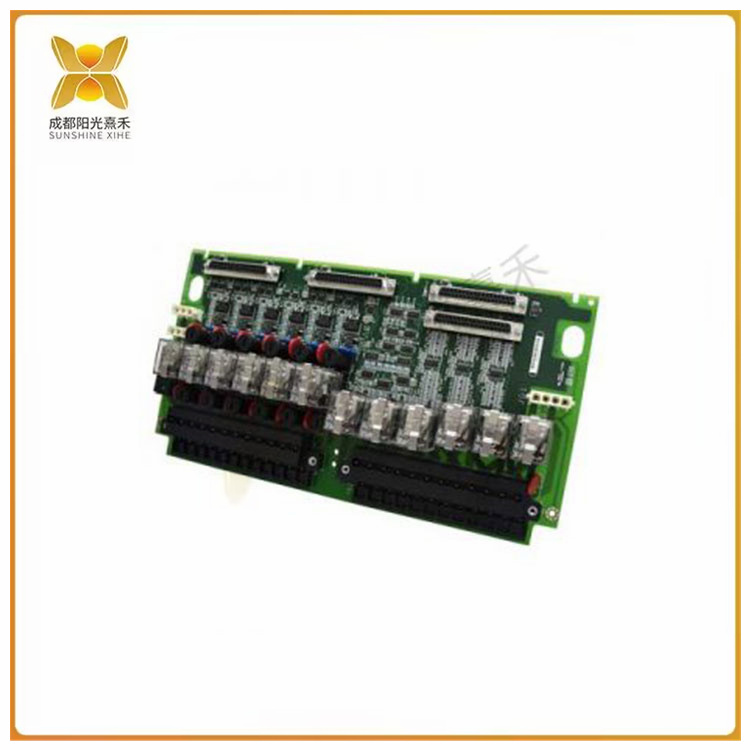

IS200TBCIH2C是GE制造的電路板組件。這是一款設計為Mark VI系統的端子板的小型板。Mark VI 是 GE 發布的燃?xì)?蒸汽輪機管理系統，作為“Speedtronic”系列的一部分，該系列始于 1960 年代的 MKI，一直持續到 1990 年代的 MKVI 和 MKVIe。

IS200TBCIH2C是觸點輸入組隔離 （TBCI） 端子板。該板由兩個接線端子和三個電纜連接器組成。每個接線端子 （TB1/TB2） 有 24 個螺釘連接，或每個 12 個觸點。連接到這些觸點最多使用#12 AWG 電線。這些板是屏障型接線端子，可以從板上拔下以進行維護。電纜連接器是帶閂鎖緊固件的 DC-37（母）連接器。它們被標記為 JT1/JS1/JR1。該板有兩個用于電源輸入的插頭連接器。它們被標記為 JE1/JE2。該板被一個金屬框架包圍，該框架包括一個屏蔽端子條/條。

該IS200TBCIH2C具有濾波器，可降低高頻噪聲并抑制每個輸入端的浪涌。 每個輸入使用一對接線點，一個螺釘提供正直流電源，第二個點提供電路板的回路。前 21 個輸入的電流負載為每點 2.5 mA。最后三個具有10 mA負載。該板沒有硬件設置或跳線。診斷信息可使用 GE 出版物 GEH-6421 找到。該出版物還提供了有關該板安裝和操作的更多信息。

 >>>>>型號:IS200TBCIH2CAA 電路板組件 觸點輸入組隔離 端子板

【英文介紹】

The IS200TBCIH2C is a GE manufactured circuit board component. This is a small board designed as a terminal board for the Mark VI system. The Mark VI is a gas/steam turbine management system released by GE as part of the "Speedtronic" series, which began with the MKI in the 1960s and continued through the MKVI and MKVIe in the 1990s.

The IS200TBCIH2C is a contact Input Group Isolation (TBCI) terminal board. The board consists of two terminal blocks and three cable connectors. Each terminal (TB1/TB2) has 24 screw connections, or 12 contacts each. Connect to these contacts using a maximum #12 AWG wire. These boards are barrier type terminal blocks that can be unplugged from the boards for maintenance. The cable connector is a DC-37 (female) connector with latch fasteners. They are labeled JT1/JS1/JR1. The board has two plug connectors for power input. They are labeled JE1/JE2. The board is surrounded by a metal frame that includes a shielded terminal strip/bar.

The IS200TBCIH2C has a filter that reduces high-frequency noise and suppresses surges at each input. Each input uses a pair of wiring points, with one screw providing a straight stream power supply and the second point providing the circuit board. The current load for the first 21 inputs is 2.5 mA per point. The last three have a 10 mA load. The board has no hardware Settings or jumpers. Diagnostic information can be found using GE publication GEH-6421. The publication also provides more information about the installation and operation of the board.
