>>>>>型號:IS200TDBTH6ACD 分立式單工板組件 兩個固定螺釘
【功能描述】
該IS200TDBTH6ACD是Mark VI分立式單工板組件。這種類型的PCB（印刷電路板）由通用電氣制造，用于該公司的Mark VI Speedtronic系列。Speedtronic控制系列用于管理各種復雜程度和尺寸的蒸汽輪機、燃氣輪機和水輪機。
IS200TDBTH6ACD只是我們庫存中可用的幾個不同版本的TDBT板之一。請務必檢查您當前的電路板，以確保您訂購的TDBT電路板版本適合您的特定應用。
IS200TDBTH6ACD包括一個前面板，就像許多其他Mark VI組件一樣。該面板包括兩個固定螺釘，用于在安裝后將電路板組件固定在機架中。前面板還包括兩個連接器和三個LED指示燈。面板上標有GE徽標和主板ID。

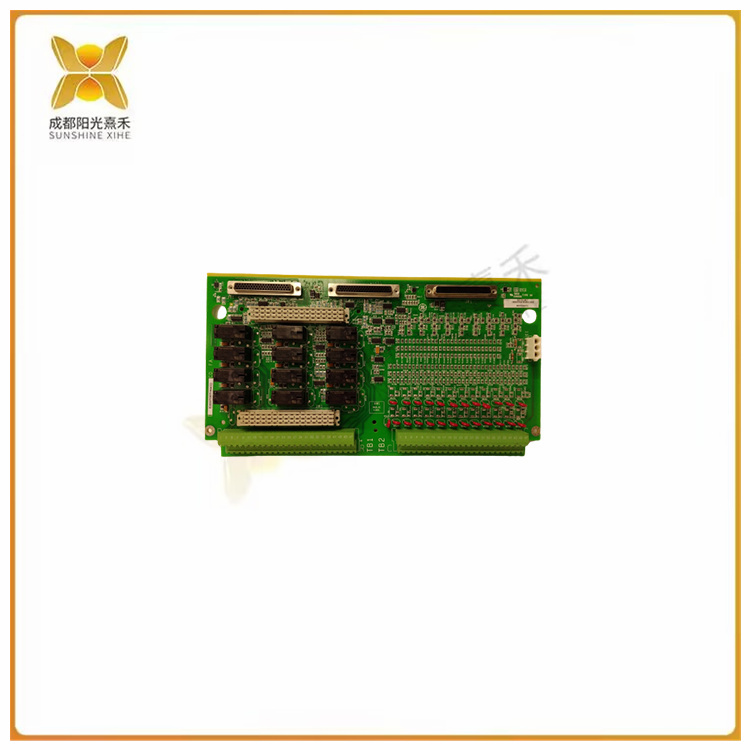

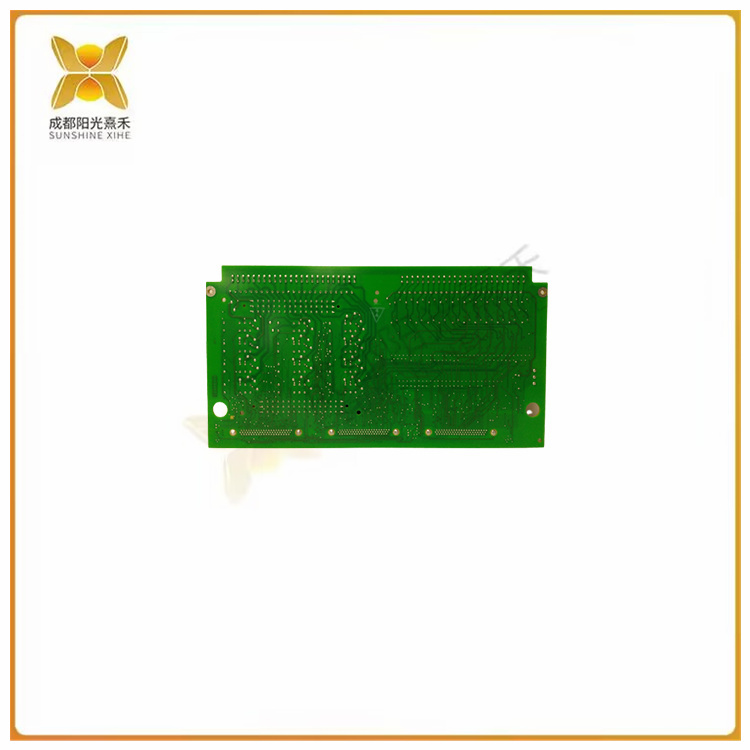

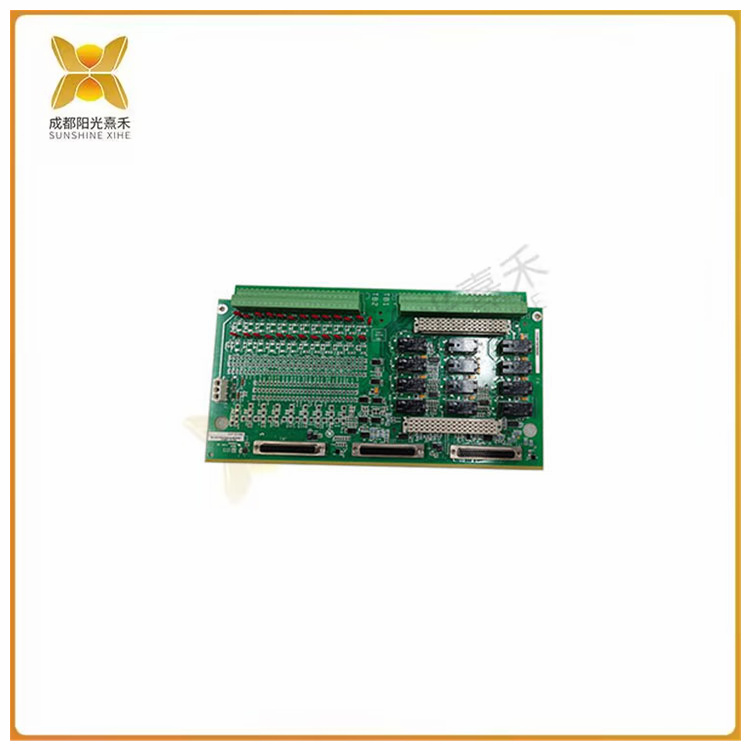

該板本身帶有多個集成電路、兩個背板連接器、測試點、繼電器和電阻器。還有許多各種設計的電容器。組件位于電路板的兩側(cè)。電路板邊緣包含有助于您放置和正確接線的代碼，但您還應該查閱該組件的原始文檔。這包括手冊和用戶指南。
>>>>>型號:IS200TDBTH6ACD 分立式單工板組件 兩個固定螺釘
【英文介紹】
The IS200TDBTH6ACD is a Mark VI separate simplex assembly. This type of PCB (printed circuit board) is manufactured by General Electric for use in the company's Mark VI Speedtronic series. The Speedtronic control series is used to manage steam, gas and water turbines of all complexity and sizes.
The IS200TDBTH6ACD is just one of several different versions of TDBT boards available in our inventory. Be sure to check your current board to ensure that the version of TDBT board you order is appropriate for your specific application.
The IS200TDBTH6ACD includes a front panel, just like many other Mark VI components. The panel includes two setting screws for securing the board assembly in the rack after installation. The front panel also includes two connectors and three LED indicators. The panel is marked with the GE logo and the mainboard ID.
The board itself comes with multiple integrated circuits, two backplane connectors, test points, relays, and resistors. There are also many capacitors of various designs. The components are located on both sides of the board. The edge of the board contains code to help you place and wire correctly, but you should also consult the original documentation for the component. This includes manuals and user guides.
>>>>>型號:IS200TDBTH6ACD 分立式單工板組件 兩個固定螺釘
