>>>>>型號:IS200TPROS1CBB 保護性終端卡 負責工業燃氣輪機
【功能描述】

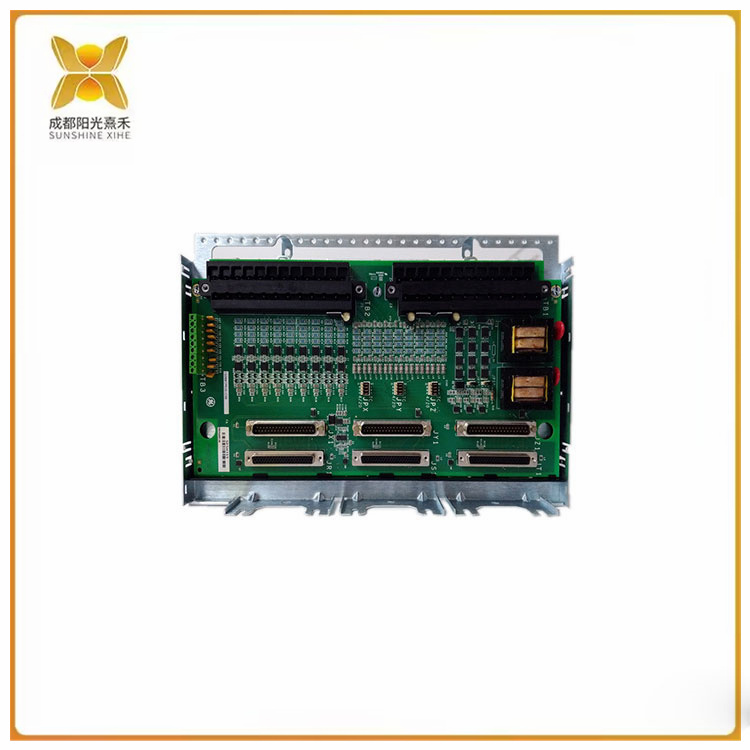

IS200TPROH1B是一種稱為保護性終端卡的設備。這是一種長方形且較大的印刷電路板或PCB。IS200TPROH1B是通用電氣或GE的Mark VI系列中的一個組件。這些系統負責工業燃氣輪機和蒸汽輪機的管理和自動化。
IS200TPROH1B的左邊緣被兩（2）個黑色的大接線端子占據。這兩款接線端子均具有24個立方體形狀的銀色金屬端子，總共有48個端子。位于IS200TPROH1B頂部的是一對垂直配對的變壓器。這些變壓器大多是紅色的，頂部有黃色部分。每個變壓器旁邊都有一個圓形的紅色組件，稱為MOV或金屬氧化物壓敏電阻。IS200TPROH1B的右邊緣被一組黑色和銀色的連接器端口占據。右側的三個連接器端口比其他端口大。它們從上到下被標識為JZ1、JY1和JX1。在這些較大連接器端口的左側是三（3）個小型連接器端口，從上到下分別標識為JZ5、JY5和JX5。與每個組件下方的每個小連接器端口配對的是一個非常小的黃色電容器。一長排由字母L標識的銀色組件位于IS200TPROH1B的左半部分。
>>>>>型號:IS200TPROS1CBB 保護性終端卡 負責工業燃氣輪機
【英文介紹】
The IS200TPROH1B is a device called a protective terminal card. This is a rectangular and large printed circuit board or PCB. The IS200TPROH1B is a component in the General Electric or GE Mark VI series. These systems are responsible for management and automation of industrial gas and steam turbines.
The left edge of the IS200TPROH1B is occupied by two (2) large black terminals. Both terminals feature 24 cube-shaped silver metal terminals for a total of 48 terminals. Located on top of the IS200TPROH1B is a pair of vertically paired transformers. Most of these transformers are red with a yellow section on top. Next to each transformer is a round red component called MOV or metal oxide varistor. The right edge of the IS200TPROH1B is occupied by a set of black and silver connector ports. The three connector ports on the right are larger than the other ports. They are identified from top to bottom as JZ1, JY1, and JX1. To the left of these larger connector ports are three (3) smaller connector ports, identified from top to bottom as JZ5, JY5, and JX5. Paired with each small connector port below each component is a very small yellow capacitor. A long row of silver components identified by the letter L is located on the left half of the IS200TPROH1B.
>>>>>型號:IS200TPROS1CBB 保護性終端卡 負責工業燃氣輪機
