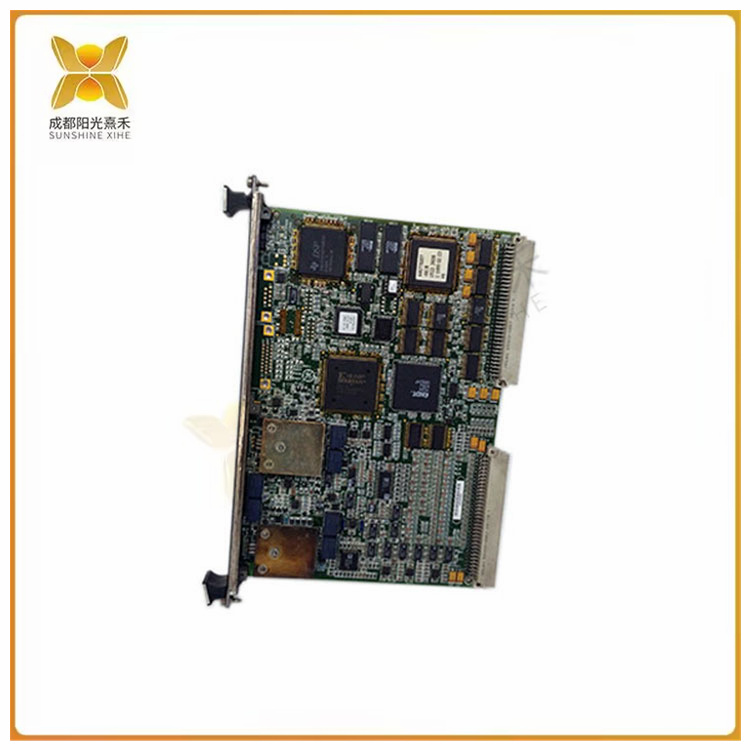

>>>>>型號:IS200VAICH1DAB 模擬輸入/輸出板 用于TMR或單工應用
【功能描述】
關于IS200VAICH1DAB的常見問題
IS200VAICH1DAB型號有換能器/變送器;它們做什么，或者它們由什么提供動力？
IS200VAICH1DAB上的變送器/變送器可以由24 VDC的控制系統電源供電，也可以獨立供電。它們用于監控VAIC板上的每個輸出;如果Mark VI處理器的命令無法立即清除故障，模型上的自殺繼電器將斷開相應的輸出。
什么是IS200VAICH1DAB模型？
IS200VAICH1DAB型號是模擬輸入/輸出板。它用于接受多達20個輸入并控制多達4個輸出，具有兩個轉換器（A/D和D/A）、信號調理和一個模擬多路復用器。
產品描述
IS200VAICH1DAB型號由通用電氣制造，用作模擬輸入/輸出板，用于TMR或單工應用中的Mark V系統。當用于TMR系統配置時，連接的端子板（TBAIH1C或STAI板）上的輸入信號將扇出到三個VME機架T、R和S，每個機架都包含一個VAIC板。VAIC板上的輸出信號將由專有電路驅動，使用所有可用的VAIC板產生所需的電流。如果VME機架上的任何IS200VAICH1DAB型號發生故障，則故障的VAIC型號將從輸出中刪除，其余的VAIC板可以繼續提供正確的電流。當該模型用于單工配置時，連接的端子板將為其中一個VAIC型號提供輸入，為輸出提供所有電流。
在IS200VAICH1DAB型號運行期間，它將控制四個模擬輸出，并接受多達二十個模擬輸入。該模型具有模擬多路復用器、A/D轉換器、D/A轉換器和信號調理。該模型中有兩個模擬輸入，±1 mA或4-20 mA，由連接的端子板上的跳線選擇。模擬輸出電路是分開的;兩個輸出可以配置為0-200 mA或4-20 mA，其他輸出僅為4-20 mA。IS200VAICH1DAB型號的輸入和輸出都包含高抑制電路，可防止高頻噪聲和浪涌。
>>>>>型號:IS200VAICH1DAB 模擬輸入/輸出板 用于TMR或單工應用
【英文介紹】
FAQ about IS200VAICH1DAB
IS200VAICH1DAB model has transducer/transmitter; What do they do, or are they powered by?
The transmitter/transmitter on the IS200VAICH1DAB can be powered by a 24 VDC control system power supply or can be powered independently. They are used to monitor each output on the VAIC board; If the command of the Mark VI processor does not clear the fault immediately, the suicide relay on the model will disconnect the corresponding output.
What is the IS200VAICH1DAB model?
The IS200VAICH1DAB model is an analog input/output board. It is used to accept up to 20 inputs and control up to 4 outputs, with two converters (A/D and D/A), signal conditioning, and an analog multiplexer.
Product description
The IS200VAICH1DAB model is manufactured by General Electric and is used as an analog input/output board for Mark V systems in TMR or simplex applications. When used in a TMR system configuration, the input signals on the connected terminal boards (TBAIH1C or STAI boards) are fanned out to three VME racks T, R, and S, each containing a VAIC board. The output signal on the VAIC board will be driven by a proprietary circuit, using all available VAIC boards to generate the required current. If any IS200VAICH1DAB model on the VME rack fails, the faulty VAIC model will be removed from the output and the remaining VAIC boards can continue to provide the correct current. When this model is used in a simplex configuration, the connected terminal boards will provide the input to one of the VAIC models, providing all the current to the output.
During the operation of the IS200VAICH1DAB model, it will control four analog outputs and accept up to twenty analog inputs. The model has an analog multiplexer, A/D converter, D/A converter, and signal conditioning. There are two analog inputs in this model, ±1 mA or 4-20 mA, selected by jumpers on the connected terminal board. The analog output circuit is separate; Two outputs can be configured to be 0-200 mA or 4-20 mA, and the other outputs are only 4-20 mA. Both the input and output of the IS200VAICH1DAB model contain high suppression circuits that protect against high-frequency noise and surges.
