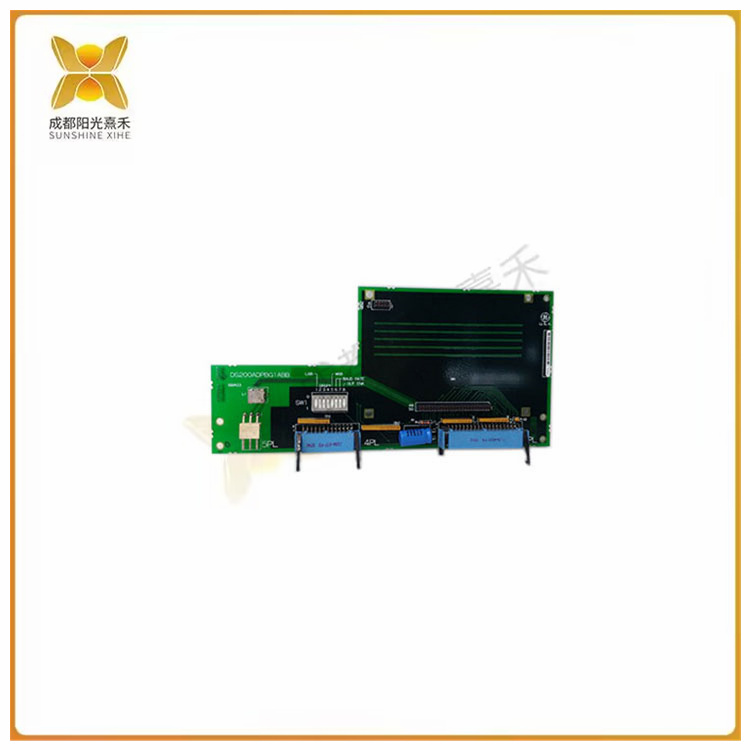

>>>>>型號:DS200ADPBG1ABB 配置板 具有一個8個開關塊

【功能描述】

Genius I/O適配器板DS200ADPBG1ABBBB具有一個8個開關塊，用于配置板。Genius I/O適配器板DS200ADPBG1ABBBB還裝有1個40針連接器和一個26針連接器。Genius I/O適配器板DS200ADPBG1ABBBB在40針連接器和26針連接器上具有固定夾。它們旨在將電纜固定到位，以免發(fā)生意外斷開。在斷開電纜之前，請用手指將固定夾從電纜上滑開。要安裝電纜，首先確保夾子不礙事，然后輕輕地將電纜插入連接器。按下連接器以確保其完全就位。用一根手指將夾子滑過電纜，直至其卡入到位。

40針連接器和26針連接器連接到帶狀電纜，需要您考慮一些信息。帶狀電纜由連接到塑料連接器的多根小電線組成。小電線很容易損壞，因此如果將電纜從連接器中拉出，電線可能會與塑料連接器斷開。

要斷開帶狀電纜，請握住帶狀電纜的連接器部分，然后將其從電路板中拉出。這減輕了電纜的壓力，并有助于電線保持連接。用空閑的手穩(wěn)定電路板，以防止其彎曲或從電路板架上脫落。

 >>>>>型號:DS200ADPBG1ABB 配置板 具有一個8個開關塊

【英文介紹】

The Genius I/O adapter board DS200ADPBG1ABBBB has an 8-switch block for configuring the board. The Genius I/O adapter board DS200ADPBG1ABBBB also comes with a 40-pin connector and a 26-pin connector. The Genius I/O adapter board DS200ADPBG1ABBBB has retainer clips on 40-pin connectors and 26-pin connectors. They are designed to hold the cable in place to avoid accidental disconnection. Before disconnecting the cable, slide the retaining clip away from the cable with your finger. To install the cable, first make sure the clamps are out of the way and then gently insert the cable into the connector. Press the connector to ensure it is fully in place. Use one finger to slide the clip over the cable until it snaps into place.

The 40-pin connector and the 26-pin connector are connected to the ribbon cable and require you to consider some information. A ribbon cable consists of multiple small wires connected to a plastic connector. Small wires are easily damaged, so if you pull the cable out of the connector, the wire may disconnect from the plastic connector.

To disconnect the ribbon cable, hold the connector portion of the ribbon cable and pull it out of the circuit board. This relieves the strain on the cable and helps the wires stay connected. Stabilize the board with your free hand to prevent it from bending or falling off the board holder.
