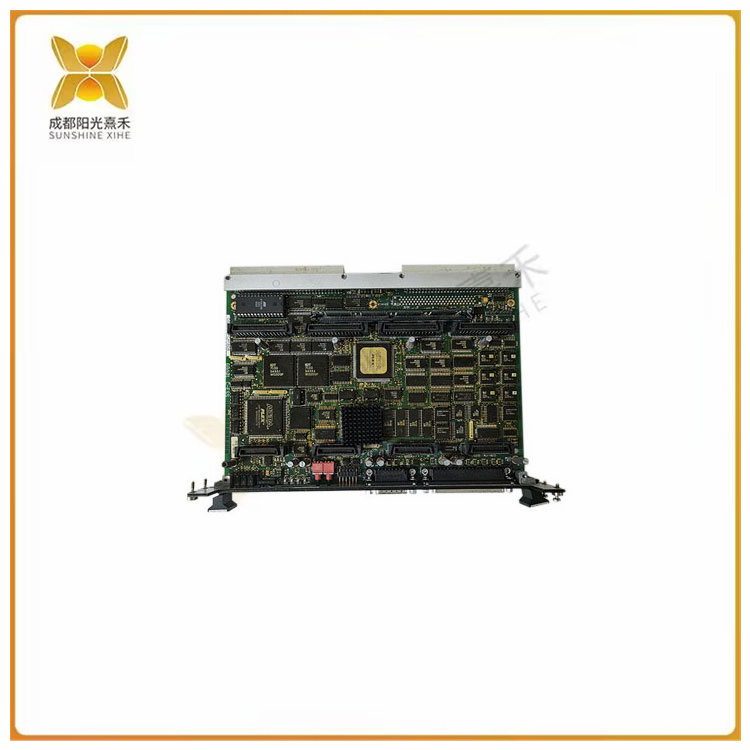

>>>>>型號:DS200DSPCH1ADA 數字信號處理器控制板 控制系統兼容

【功能描述】

該DS200DSPCH1ADA是GE數字信號處理器控制板，與GE的Mark V Speedtronic控制系統兼容，用于蒸汽和燃?xì)夤I(yè)渦輪機。該DS200DSPCH1ADA提供通信帶寬和處理能力，可直接控制系統的電源轉換器應用和高性能驅動器。該板內置可擴展的輸入和輸出。

DS200DSPCH1ADA是一個具有多個子板的復雜電路板。一塊板使用支架平行于板表面安裝，另一塊板垂直安裝。其中一個子板用于提供信號的縮放、緩沖、隔離和調理，以便DS200DSPCH1ADA的數字信號處理器能夠訪問和使用這些信號。

DS200DSPCH1ADA的后邊緣有兩個背板連接器。該板內置一個帶有多種I/O和LED指示燈的附加前面板。面板還有一個復位按鈕和兩個固定螺釘

 >>>>>型號:DS200DSPCH1ADA 數字信號處理器控制板 控制系統兼容

【英文介紹】

The DS200DSPCH1ADA is a GE digital signal processor control board compatible with GE's Mark V Speedtronic control system for steam and gas industrial turbines. The DS200DSPCH1ADA provides communication bandwidth and processing power for direct control of the system's power converter applications and high-performance drivers. The board has built-in expandable inputs and outputs.

The DS200DSPCH1ADA is a complex circuit board with multiple subboards. One board is mounted parallel to the board surface using a bracket and the other board is mounted vertically. One of the subboards is used to provide scaling, buffering, isolation, and conditioning of the signals so that they can be accessed and used by the DS200DSPCH1ADA digital signal processor.

The DS200DSPCH1ADA has two backplane connectors on the back edge. An additional front panel with multiple I/O and LED indicators is built into the board. The panel also has a reset button and two setting screws
