【功能描述】

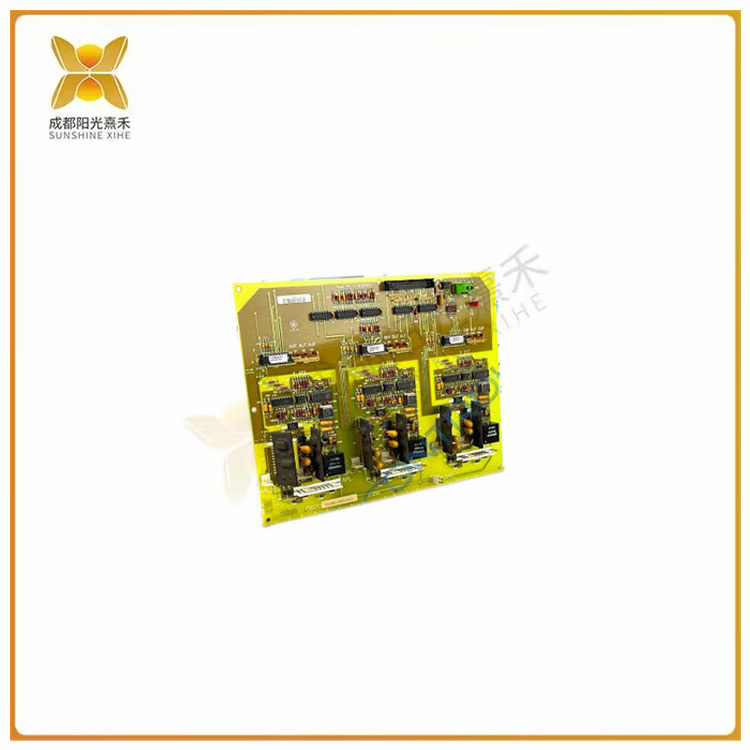

GE絕緣柵雙極晶體管（IGBT）板DS200IIBDG1A包含9個LED指示燈，用于提供電路板的處理狀態。LED從電路板機柜內部可見，點亮?xí)r呈紅色。

GE絕緣柵雙極晶體管（IGBT）板DS200IIBDG1A具有多個連接器，在安裝替換板時，必須確保將電纜連接到完全相同的連接器中。為確保將它們重新連接到相同的連接器，請檢查有缺陷的主板并記下指示已連接電纜的連接器的連接器標識符的記下。然后制作標簽并將它們貼在電纜上，以顯示將能力連接到新板上的位置。

此外，該板還包含一個或多個跳線，用于配置板以特定方式處理驅動器的信息。其他跳線在出廠時設置，在出廠時僅用于測試目的。電路板附帶的信息可識別跳線，并描述跳線設置以及它們?nèi)绾胃碾娐钒逍袨椤?/p>

當電路板通電且驅動器處于運行狀態時，LED指示電路板的運行情況。由于LED僅在電路板通電時可見，因此打開機柜時必須格外小心。查看LED時不要觸摸驅動器中的任何組件，并確保驅動器中沒有掉落任何金屬、污垢或其他碎屑。

 >>>>>型號:DS200IIBDG1A 絕緣柵雙極晶體管 提供電路板的處理狀態

【英文介紹】

The GE insulated gate bipolar transistor (IGBT) board DS200IIBDG1A contains nine LED indicators to provide the processing status of the board. The LED is visible from inside the circuit board cabinet and appears red when lit.

The GE insulated gate bipolar transistor (IGBT) board DS200IIBDG1A has multiple connectors, and when installing the replacement board, you must ensure that the cable is connected to the exact same connector. To ensure that they are reconnected to the same connector, check the defective motherboard and make a note of the connector identifier indicating the connector to which the cable has been connected. Labels are then made and attached to the cable to show where the capability is connected to the new board.

In addition, the board contains one or more jumpers that configure the board to handle the drive's information in a particular way. Other jumpers are set at the factory and are only used for testing purposes at the factory. The information that comes with the board identifies the jumper and describes the jumper Settings and how they change the board behavior.

When the board is powered and the driver is in operation, the LED indicates the operation of the board. Since the LED is only visible when the board is powered on, extra care must be taken when opening the cabinet. Do not touch any components in the drive while viewing the LED, and ensure that no metal, dirt, or other debris has fallen from the drive.
