>>>>>型號:DS200KLDBG1ABC 顯示板 基于微處理器的控制系統

【功能描述】

DS200KLDBG1ABC通用電氣顯示板

DS200KLDBG1ABC是Mark V Speedtronic系統中使用的GE組件。Mark V是Speedtronic中最后一款用于控制燃氣輪機或蒸汽輪機的系統之一。它是一個靈活的基于微處理器的控制系統，采用TMR架構，設計有內置診斷和在線維護功能。GE不再出售該DS200KLDBG1ABC，但可以通過AX控制作為翻新裝置和清算剩余（新使用）庫存找到。請注意，DS200系列主板是較舊的設備，沒有更新固件或組件;如果您的系統需要這些更新，請查看DS215系列中的類似主板。

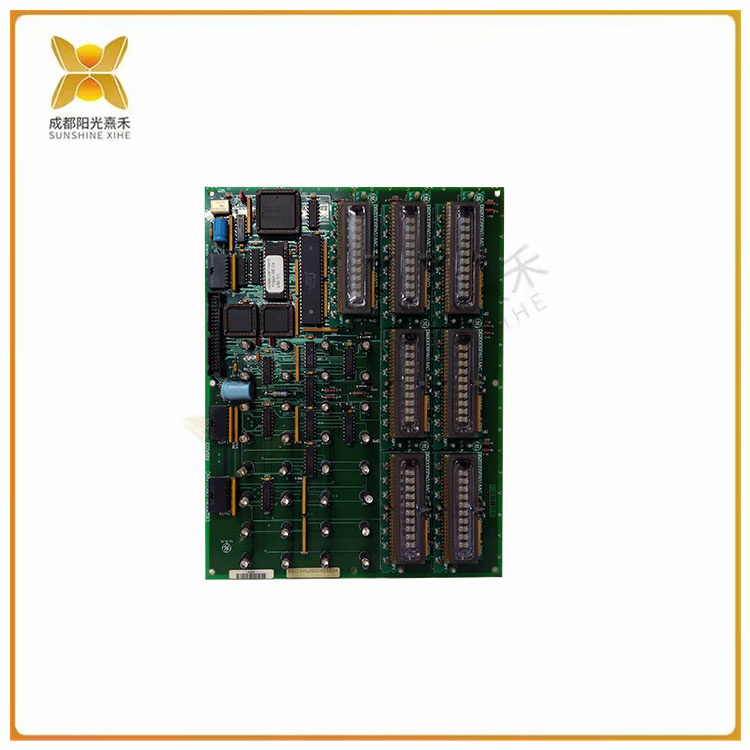

DS200KLDBG1ABC用作顯示板。它是一個大的矩形板，只有幾個間隔良好的組件。這包括32個垂直照明組件，這些組件位于電路板右下象限的四行中，每行8個。集成電路和電阻網絡陣列放置在這些燈之間。更多的集成電路聚集在左下角，包括現場可編程門陣列和至少一個振蕩芯片。該板具有多個板連接器，包括兩個垂直引腳組件。該板具有兩個跳線開關、電容器、二極管和電阻器。電路板頂部有七個LED顯示屏。這些顯示器設計用于數字顯示，使用16段數字。該板標有C-ESS和6BA01等代碼。電路板的角和邊緣經過鉆孔，以便安裝。

 >>>>>型號:DS200KLDBG1ABC 顯示板 基于微處理器的控制系統

【英文介紹】

DS200KLDBG1ABC General Electric display board

The DS200KLDBG1ABC is a GE component used in the Mark V Speedtronic system. The Mark V was one of the last Speedtronic systems to control a gas or steam turbine. It is a flexible microprocessor-based control system that uses the TMR architecture and is designed with built-in diagnostic and online maintenance functions. GE no longer sells the DS200KLDBG1ABC, but can be found through AX control as a refurbished unit and liquidation of surplus (newly used) inventory. Please note that DS200 series motherboards are older devices with no updated firmware or components; If your system needs these updates, check out similar motherboards in the DS215 family.

DS200KLDBG1ABC is used as the display board. It is a large rectangular plate with only a few well-spaced components. This includes 32 vertical lighting components, which are located in four rows of eight per row in the lower right quadrant of the board. An integrated circuit and resistor network array are placed between these lights. More integrated circuits are clustered in the lower left corner, including a field-programmable gate array and at least one oscillating chip. The board has multiple board connectors, including two vertical pin assemblies. The board has two jumper switches, capacitors, diodes and resistors. There are seven LED displays on the top of the board. These displays are designed for digital display, using 16 segments of numbers. The board is marked with codes such as C-ESS and 6BA01. The corners and edges of the circuit board are drilled for installation.
