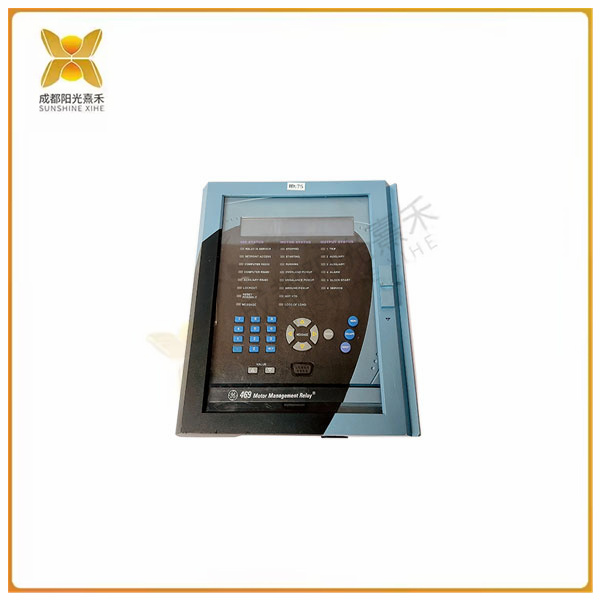

>>>>>型號:469-P1-HI-A20-E  控制電源型號 大型電機系統

【功能描述】

GE Multilin 469 系列的這種增強型號能夠保護和控制中型到大型電機系統。469-P1-HI-A20-E-H 與大多數型號不同，它帶有可選的保形涂層;這種薄的聚合物層有助于保護設備免受灰塵、高溫等的影響。因此，保形涂層延長了電機壽命，尤其是在危險的操作環境中。

469-P1-HI-A20-E-H 的增強型面板可分為大約四個部分：包括用于直接連接到運行 EnerVista 469 的筆記本電腦的 RS232 端口、用于輸入和編輯設定值的重新設計的鍵盤、擴展的 40 字符液晶顯示屏以及表示系統內各種狀態的 LED。

1-P1-HI-A469-E-H 型號中的“P20”表示繼電器與 1 A 相 CT 次級兼容。與以“P5”型號表示的 5 A 相 CT 次級相比，用戶應確保標稱相電流額定值與所有連接的 CT 的連接和次級額定值相對應。 不匹配的 CT 會隨著時間的推移對系統造成損壞，并且即使這種損壞不會立即變得明顯，也無疑會導致保護減弱。

該繼電器還能夠進行自我評估，評估電機健康狀況，并提供可配置的警報，以便在出現轉子問題時提醒用戶。 這種早期檢測系統除了減少停機時間外，還縮短了故障排除時間。與電機健康相關的指標也可以在通用電氣 Multilin 的 EnerVista 469 程序中查看，這比使用鍵盤手動瀏覽繼電器的菜單更有效。

 >>>>>型號:469-P1-HI-A20-E  控制電源型號 大型電機系統

【英文介紹】

This enhanced version of the GE Multilin 469 series protects and controls medium to large motor systems. 469-P1-HI-A20-E-H Unlike most models, it comes with an optional conformal coating; This thin polymer layer helps protect the device from dust, heat, and more. As a result, conformal coatings extend motor life, especially in hazardous operating environments.

The 469-P1-HI-A20-E-H enhanced panel can be divided into approximately four parts: Includes an RS232 port for connecting directly to a laptop running EnerVista 469, a redesigned keyboard for entering and editing Settings, an expanded 40-character LCD display, and leds for indicating various states within the system.

The "P20" in the 1-P1-HI-A469-E-H model indicates that the relay is compatible with the 1 A-phase CT secondary. In contrast to the 5 A phase CT secondary indicated by the "P5" model, the user should ensure that the nominal phase current rating corresponds to the connection and secondary ratings of all connected CTS. Mismatched CT can cause damage to the system over time, and even if this damage does not become immediately apparent, it will undoubtedly lead to weakened protection.

The relay is also capable of self-assessment, assessing motor health and providing configurable alarms to alert the user if there is a rotor problem. In addition to reducing downtime, this early detection system also reduces troubleshooting time. Indicators related to motor health can also be viewed in GE Multilin's EnerVista 469 program, which is more efficient than manually navigating the relays' menus using a keyboard.
