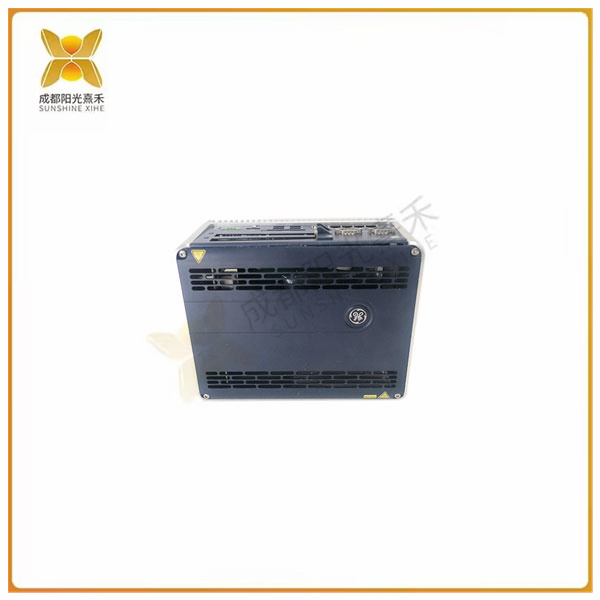

>>>>>型號:04220FL11232A 控制器 多個以太網端口
【功能描述】
- 04220FL11232A
- 制造商已停產
- RXI控制器
- 多個以太網端口
- 3.4安培
- 24伏直流電
伺服驅動器是現代運動控制的重要組成部分，被廣泛應用于工業機器人及數控加工中心等自動化設備中。尤其是應用于控制交流永磁同步電機的伺服驅動器已經成為國內外研究熱點。當前交流伺服驅動器設計中普遍采用基于矢量控制的電流、速度、位置三閉環控制算法。該算法中速度閉環設計合理與否，對于整個伺服控制系統，特別是速度控制性能的發揮起到關鍵作用 。
在伺服驅動器速度閉環中，電機轉子實時速度測量精度對于改善速度環的轉速控制動靜態特性至關重要。為尋求測量精度與系統成本的平衡，一般采用增量式光電編碼器作為測速傳感器，與其對應的常用測速方法為M/T測速法。
>>>>>型號:04220FL11232A 控制器 多個以太網端口
【英文介紹】
04220FL11232A
The manufacturer has discontinued production
RXI controller
Multiple Ethernet ports
3.4 Amps
24 volts direct current
Servo drive is an important part of modern motion control, which is widely used in industrial robots and CNC machining centers and other automation equipment. In particular, the servo drive used to control AC permanent magnet synchronous motor has become a research hotspot at home and abroad. The current, speed and position three closed-loop control algorithms based on vector control are widely used in the design of AC servo drivers. Whether the speed closed-loop design in this algorithm is reasonable or not plays a key role in the whole servo control system, especially in the performance of speed control.
In the speed closed loop of servo drive, the real-time speed measurement accuracy of motor rotor is very important to improve the dynamic and static characteristics of speed control of speed ring. In order to find the balance between measurement accuracy and system cost, incremental photoelectric encoder is generally used as the speed measurement sensor, and its corresponding common speed measurement method is M/T speed measurement.
