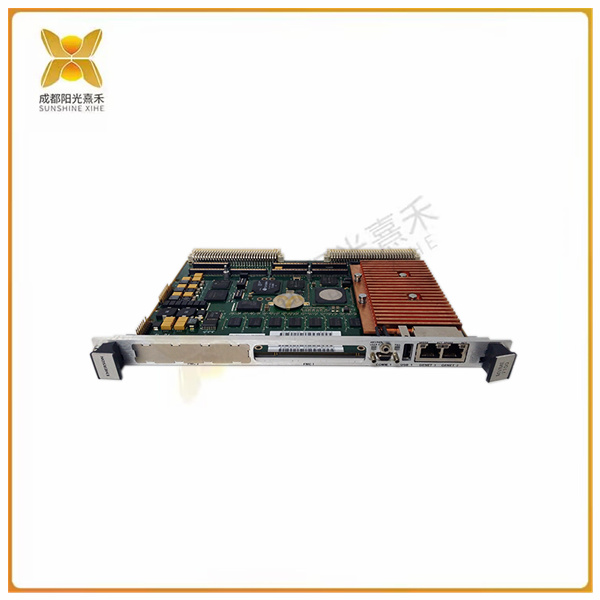

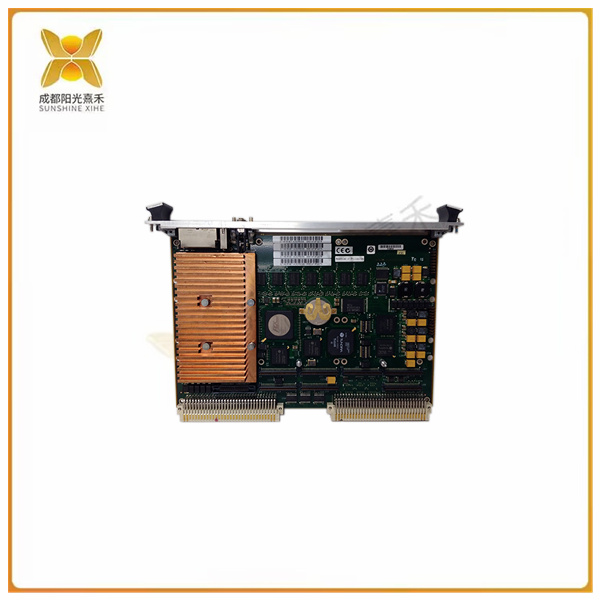

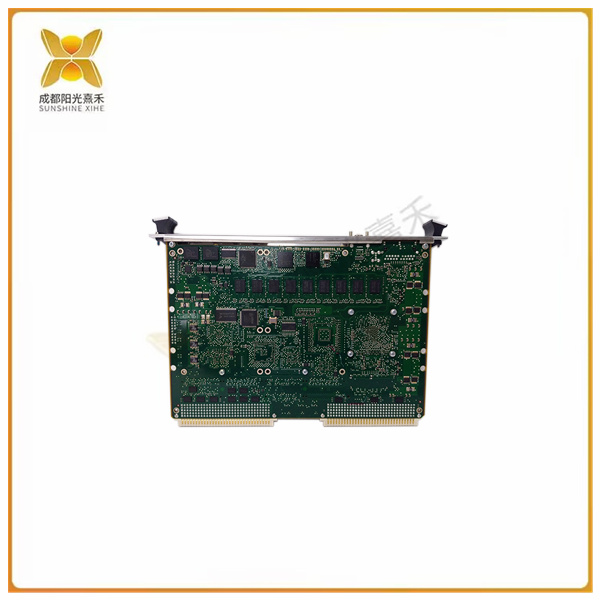

>>>>>型號:MVME7100 VME單板計算機 千兆以太網端口
【功能描述】
該MVME7100采用MPC864xD處理器，為使用前幾代VME（特別是MPC74xx）的VME客戶提供了一條增長路徑。與其他架構相比，它具有出色的功率/散熱、可靠性和生命周期優勢。
產品特點
高達 1.3 GHz 的片上系統 NXP? MPC864xD，具有雙 PowerPC? e600 處理器內核、雙集成內存控制器、DMA 引擎、PCI Express 接口、以太網和本地 I/O
適用于 VxWorks、LynxOS 和 Linux 的板級支持包
2eSST VMEbus 協議，跨 VMEbus 的傳輸速率為 320MB/s
高達 2GB 的 DDR2 ECC 內存、128MB NOR 閃存和 2、4 或 8GB NAND 閃存
4 個千兆以太網端口
USB 2.0 控制器，用于集成高性價比的外設（僅限商用溫度）
雙 33/66/100MHz PMC-X 站點，可通過支持處理器 PMC 的行業標準模塊進行擴展
8 個 PCI Express 擴展連接器，用于使用 SMART EC XMCspan 進行 PMC-X 和 XMC 擴展
MVME7216E直接連接后部轉換模塊 （RTM），用于通過 VMEbus 機箱后部進行 I/O 路由
>>>>>型號:MVME7100 VME單板計算機 千兆以太網端口
【英文介紹】
The MVME7100 uses the MPC864xD processor and provides a growth path for VME customers using previous generations of VME, particularly the MPC74xx. It offers excellent power/heat dissipation, reliability and life cycle advantages over other architectures.
Product characteristics
Up to 1.3GHz, system-on-chip NXP? MPC864xD features dual PowerPC? e600 processor cores, dual integrated memory controllers, DMA engine, PCI Express interface, Ethernet and local I/O
Board-level support packages for VxWorks, LynxOS, and Linux
2eSST VMEbus protocol, the transmission rate across VMEbus is 320MB/s
Up to 2GB DDR2 ECC memory, 128MB NOR flash and 2, 4 or 8GB NAND flash
Four Gigabit Ethernet ports
USB 2.0 controller for integration of cost-effective peripherals (commercial temperature only)
Dual 33/66/100MHz PMC-X sites that can be expanded with industry-standard modules that support processor PMCS
Eight PCI Express extension connectors for PMC-X and XMC extensions using SMART EC XMCspan
The MVME7216E connects directly to the Rear Conversion Module (RTM) for I/O routing through the rear of the VMEbus chassis
