>>>>>型號:VMIVME-3122 64 個差分或單端輸入 可選低通濾波器
【功能描述】
特征：
64 個差分或單端輸入
16 位 A/D 轉換
軟件可選轉換速率（最大 100 kHz）
程序可選掃描 1、8、16、32、48 或 64 通道
持續數字化選定的輸入通道并存儲結果
三種觸發模式
三種掃描模式
可選低通濾波器

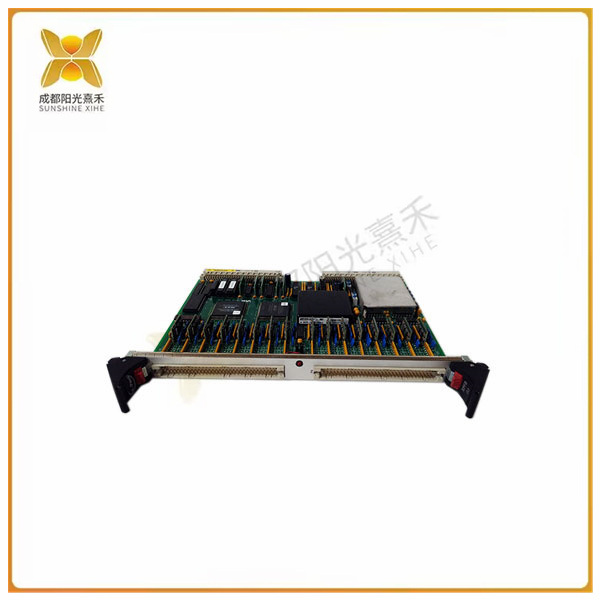

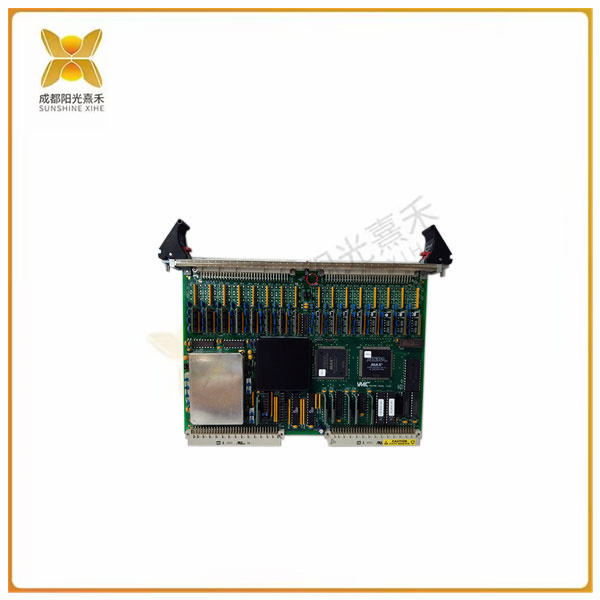

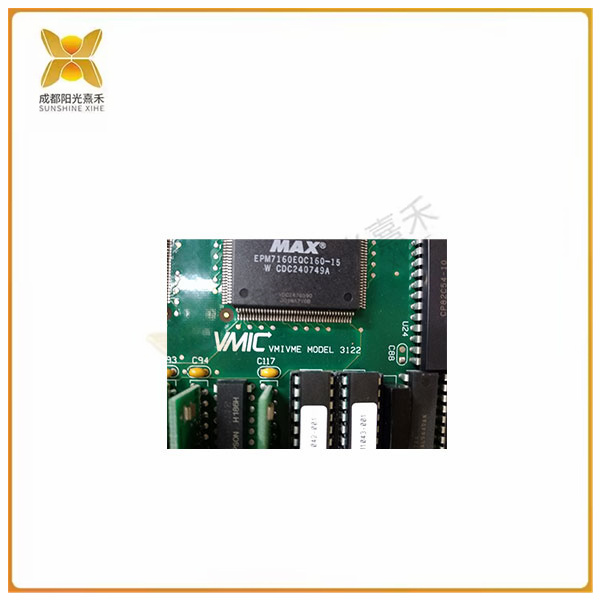

Abaco Systems / VMIC VMIVME-3122 / VMIVME-3122A 是一款高分辨率、16 位、64 通道模擬掃描和數字化輸入板，適用于 VMEbus 系統應用。VMIVME-3122 具有雙端口數據存儲器、板載定時器、自動控制增益和可編程總線中斷器，能夠支持廣泛的模擬輸入流量，同時將主機處理器的參與降至最低。
VMIVME-3122 是 VMIC 廣泛的 VMEbus 模擬輸入/輸出產品系列的成員。VMIVME-3122 具有 16 位數字化分辨率、程控增益、可選轉換速率以及 64 個差分或單端模擬輸入的自動掃描功能，可提供出色的動態范圍和模擬輸入通道密度。支持多種操作模式，包括自動掃描、數據突發和外部同步。該板設計用于直接與VMIC的信號調理板系列連接，用于對熱電偶、RTD和應變計的輸出進行數字化處理。
>>>>>型號:VMIVME-3122 64 個差分或單端輸入 可選低通濾波器
【英文介紹】
Features:
64 differential or single-ended inputs
16-bit A/D conversion
Software optional conversion rate (up to 100 kHz)
The program can optionally scan 1, 8, 16, 32, 48, or 64 channels
Continuously digitize the selected input channels and store the results
Three trigger modes
Three scanning modes
Optional low-pass filter
Abaco Systems/VMIC VMIVME-3122 / VMIVME-3122A is a high-resolution, 16-bit, 64-channel analog scanning and digital input board for VMEbus system applications. The VMIVME-3122 features a dual-port data memory, onboard timer, automatic control gain, and programmable bus interrupter to support a wide range of analog input traffic while minimizing host processor involvement.
The VMIVME-3122 is a member of VMIC's extensive VMEbus analog input/output product family. The VMIVME-3122 features a 16-bit digital resolution, programmed gain, optional conversion rate, and automatic scanning of 64 differential or single-ended analog inputs, providing excellent dynamic range and analog input channel density. Supports multiple modes of operation, including automatic scanning, data burst, and external synchronization. The board is designed to connect directly to VMIC's signal conditioning board family for digitizing the output of thermocouples, RTDS and strain gauges.
