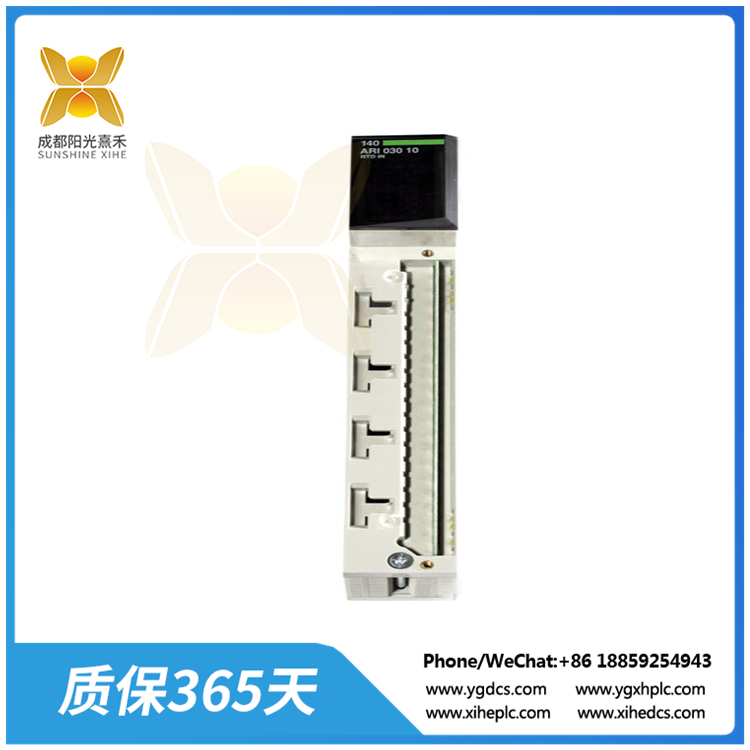

140ARI03010 | 配備 8 個模擬輸入通道 | I/O 模塊
產品型號：140ARI03010
模塊格式：標準
模擬輸入數：8
輸入類型：微分
模擬輸入分辨率：13 位
絕對精度誤差：0.1°C
線性誤差：+/- 0.5°C，+/- 0.01% 滿量程
隔離：1780 V AC(通道和總線)、2500 V DC(通道)、300 Vrms AC(通道)
更新時間：640 ms(2 線/4 線)、1200 ms(3 線)
故障類型：超車秤，斷線
功耗：1 W
通用模塊格式：標準設計
140ARI03010 采用標準模塊格式，確保與各種工業控制系統兼容。其多功能設計允許無縫集成到現有設置中，從而簡化安裝和配置過程。
擴展輸入容量：8 個模擬輸入
140ARI03010 配備 8 個模擬輸入通道，為監控各種過程參數提供了充足的容量。無論是測量溫度、壓力還是電壓，該模塊都能靈活地適應各種輸入信號。
精確輸入處理：溫度探頭兼容性
140ARI03010 支持一系列溫度探頭，包括 Pt 100、Pt 200、Ni 100 和 Ni 200 類型，確保在不同溫度范圍內進行精確的溫度測量。憑借其高分辨率模擬輸入(13 位)和低輸入阻抗 (>= 10 MOhm)，該模塊可提供準確可靠的數據采集。
強大的隔離和信號完整性
140ARI03010 在通道和總線之間具有內置隔離功能，可確保信號完整性并防止電氣干擾。其強大的隔離能力(1780 V AC、2500 V DC)可在苛刻的工業環境中讓您高枕無憂，從而最大限度地降低信號失真或設備損壞的風險。
高效的故障檢測和信號傳遞
140ARI03010 具有本地信號指示燈，包括 8 個用于通道狀態的 LED(紅色/綠色)、1 個用于外部故障檢測的 LED(紅色)和 1 個用于總線通信狀態的 LED(綠色)，可實現快速高效的故障檢測和故障排除。這提高了運營效率，并通過促進及時的糾正措施將停機時間降至最低。
Product model: 140ARI03010
Module format: Standard
Number of analog inputs: 8
Input type: differential
Analog input resolution: 13 bits
Absolute accuracy error: 0.1°C
Linear error: +/ -0.5 °C, +/ -0.01% full scale
Isolation: 1780 V AC (channels and buses), 2500 V DC (channels), 300 Vrms AC (channels)
Update time: 640 ms (2-wire / 4-wire), 1200 ms (3-wire)
Fault type: overtaking scale, broken line
Power consumption: 1 W
Common module format: Standard design
The 140ARI03010 uses a standard module format to ensure compatibility with various industrial control systems. Its versatile design allows seamless integration into existing setups, simplifying the installation and configuration process.
Expanded input capacity: 8 analog inputs
The 140ARI03010 is equipped with eight analog input channels, providing ample capacity for monitoring various process parameters. Whether measuring temperature, pressure or voltage, the module can be flexibly adapted to various input signals.
Precise input handling: Temperature probe compatibility
The 140ARI03010 supports a range of temperature probes, including Pt 100, Pt 200, Ni 100 and Ni 200 types, ensuring accurate temperature measurements in different temperature ranges. With its high-resolution analog input (13 bits) and low input impedance (>= 10 MOhm), the module provides accurate and reliable data acquisition.
Strong isolation and signal integrity
The 140ARI03010 has built-in isolation between the channel and the bus to ensure signal integrity and prevent electrical interference. Its powerful isolation capability (1780 V AC, 2500 V DC) gives you peace of mind in demanding industrial environments, minimizing the risk of signal distortion or equipment damage.
Efficient fault detection and signal transmission
The 140ARI03010 features local signal indicators including 8 leds for channel status (red/green), 1 LED for external fault detection (red) and 1 LED for bus communication status (green) for fast and efficient fault detection and troubleshooting. This improves operational efficiency and minimizes downtime by facilitating timely corrective actions.
