>>>>>型號:531X305NTBANG1 電源和編碼器 提供了許多接口系統功能

【功能描述】

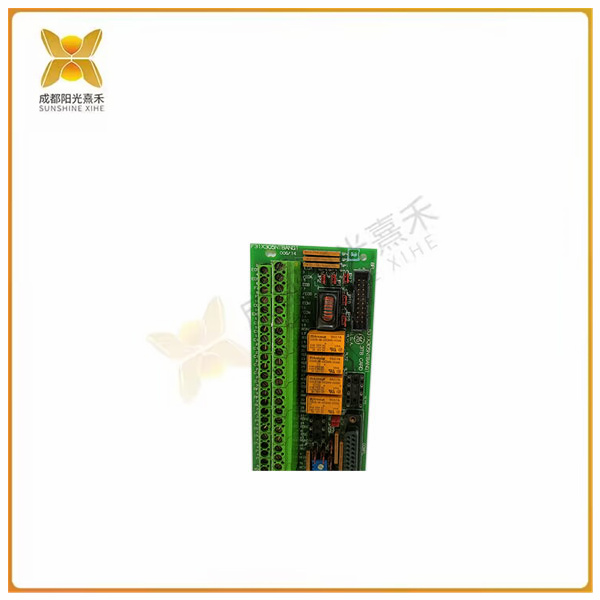

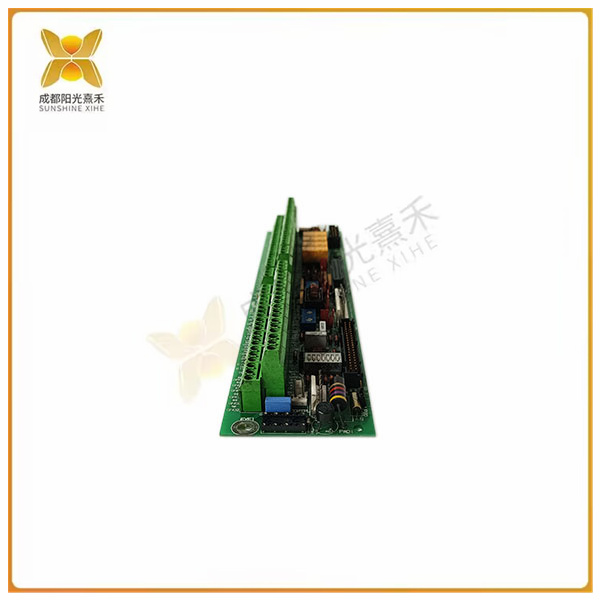

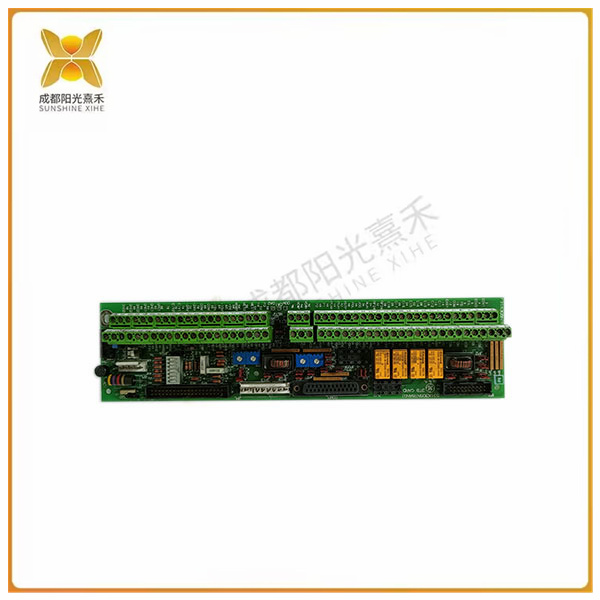

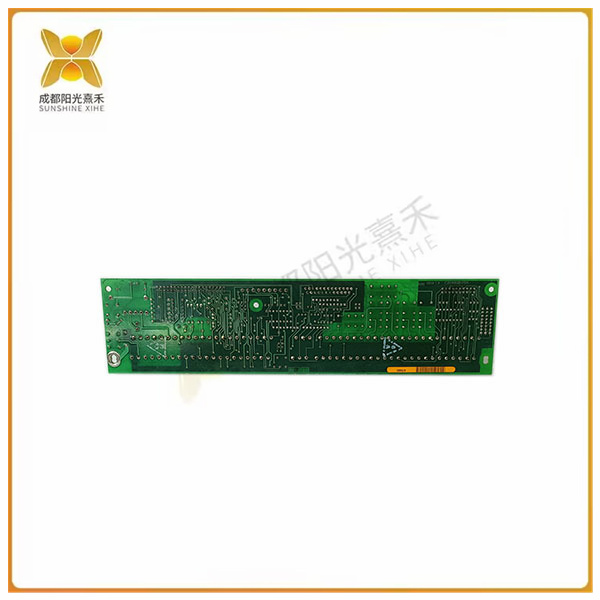

通用電氣制造了 531X305NTBANG1 卡，用作 NTB/3TB 終端板。該端子板是作為 531X 系列替換驅動和勵磁板的成員而開發的。 該板提供了許多接口系統功能。 該卡的功能包括繼電器和串行輸出、模擬 I/O、電源和編碼器。

安裝此 NTB/3TB 終端板后，它為驅動器提供一系列功能。安裝后，531X305NTBANG1 能夠生產穩壓和非穩壓電源。穩壓電源的額定電壓為 5 VDC 和 15 VDC，而非穩壓電源的額定電壓為 24 VDC 或 125 VAC。額定電壓為 5 V 和 15 V 的編碼器可以使用板載跳線進行配置。該板還包括 7 個繼電器輸出，由 A 型或 C 型輸出組成。每個繼電器內的觸點額定值為 120 VAC。低電平模擬 I/O 也可以使用板載的四個電位計進行縮放。

 >>>>>型號:531X305NTBANG1 電源和編碼器 提供了許多接口系統功能

【英文介紹】

Ge manufactured 531X305NTBANG1 cards for use as NTB/3TB terminal boards. The terminal board was developed as a member of the 531X series replacement drive and exciter board. The board provides many interface system functions. The card's features include relays and serial outputs, analog I/O, power supply, and encoder.

Once this NTB/3TB terminal board is installed, it provides a range of functions for the drive. After installation, the 531X305NTBANG1 is capable of producing both regulated and unregulated power supplies. Regulated power supplies are rated at 5 VDC and 15 VDC, while non-regulated power supplies are rated at 24 VDC or 125 VAC. Encoders rated at 5 V and 15 V can be configured using onboard jumpers. The board also includes seven relay outputs, consisting of type A or Type C outputs. The contacts in each relay are rated 120 VAC. Low-level analog I/O can also be scaled using four on-board potentiometers.
