>>>>>型號:140CPU67160 無算術協處理器 具有多模以太網的 Unity 熱備用處理器

【功能描述】

品牌 ： Modicon

產品編號： 140CPU67160

產品類型 ： Unity 熱備用處理器與多模以太網

傳輸方式 ： 多模

時鐘頻率 ： 266 MHz

插槽數量 ： 10， 16， 2， 4， 6

機架數量 ： 2 - 本地機架

分布式 I/O 站數量 ： 63 站 - 1 機架 - 3 Modbus Plus 網絡

遠程 I/O 站數量 ： 31 - 2 個 S908 遠程 I/O 機架、31 - 2 個以太網 Quantum 遠程 I/O 機架、16 - 2 個以太網 X80 遠程 I/O 機架

可選模塊數量 ： 6 （ Ethernet， Modbus， Modbus Plus， Profibus DP， Sy/Max）

裝運重量 ： 5 Kg

Modicon 140CPU67160是施耐德電氣制造的量子熱待機CPU (HSBY)。這款unity熱備處理器來自Modicon Quantum automation平臺系列。它配備了多模式以太網連接。它的時鐘頻率為266 MHz，有兩個本地機架。專用I/O包括計數器、精確的時間戳、高速中斷輸出和串行鏈路。

特征

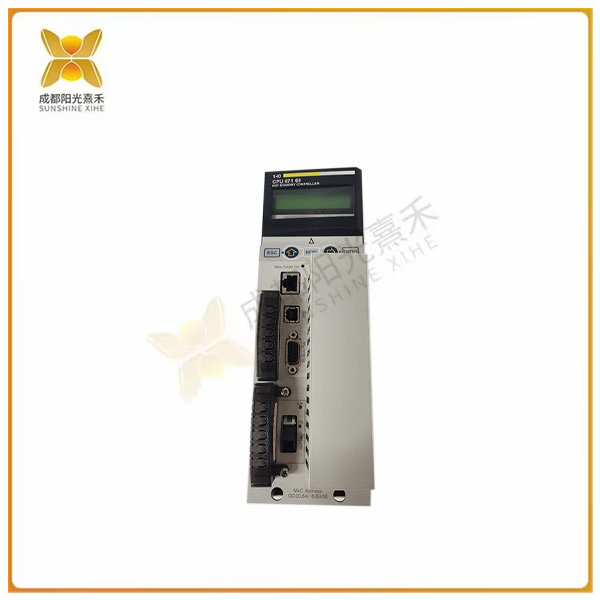

Modicon 140CPU67160有幾個特點。它有一個被鏡頭蓋蓋住的液晶顯示器。鏡頭蓋后面是按鍵開關、電池和復位按鈕。該CPU的標準配置是2行16字符的LCD。它還具有可變的背光狀態和對比度。鍵盤有五個鍵映射到硬件地址。有兩個箭頭鍵，每個都包括一個LED。該模塊的一個救命功能是自動背光處理。鍵盤驅動程序檢測到按鍵將自動打開背光。它將在5分鐘后自動關閉。如果檢測到錯誤，背光燈會一直亮著。這個單元有一個Modbus端口和一個USB端口，以及PCMCIA插槽。有以太網通信指示燈和一個以太網端口，用于HSBY CPUs的光纖通信)。它有一個電池和一個重置按鈕。

施耐德電氣140CPU67160是為安裝在背板上而制造的。

優勢

140CPU67160具有多種連接選項，包括一個USB端口、兩個分布式as接口、四個遠程AS接口、六個本地Modbus Plus連接、六個本地Profibus DP連接、一個Modbus連接器和六個本地以太網TCP/IP連接。它具有六個可選模塊，包括以太網、Modbus、Modbus Plus、Profibus、DP和Sy/Max。通過一系列模塊，該處理器具有高度的適應性和靈活性，能夠用于滿足您的要求和規格。

這種處理器的另一個組成部分是它的內存容量。它有1024 kB和512 kB專門用于數據的內部RAM。此外，140CPU67160通過PCMCIA卡具有8 MB的可擴展文件存儲容量。它還具有7168 kB的可擴展程序存儲容量，帶有PCMCIA卡。當您需要存儲多個文件和程序時，這款處理器可以保護您的數據和信息安全。該處理器有一個方便的按鍵開關，允許您輕松地打開和關閉存儲功能。

>>>>>型號:140CPU67160 無算術協處理器 具有多模以太網的 Unity 熱備用處理器

【英文介紹】

Brand: Modicon

Product ID: 140CPU67160

Product Type: Unity Hot Standby processor with multimode Ethernet

Transmission mode: multi-mode

Clock frequency: 266 MHz

Number of slots: 10, 16, 2, 4, 6

Number of racks: 2 - Local racks

Number of distributed I/O stations: 63 stations-1 rack-3 Modbus Plus network

Number of remote I/O stations: 31-2 S908 remote I/O racks, 31-2 Ethernet Quantum remote I/O racks, 16-2 Ethernet X80 remote I/O racks

Number of modules available: 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)

Shipping weight: 5 Kg

The Modicon 140CPU67160 is a quantum hot Standby CPU (HSBY) manufactured by Schneider Electric. The unity hot spare processor is from the Modicon Quantum automation platform family. It is equipped with multi-mode Ethernet connectivity. It has a clock rate of 266 MHz and two local racks. Dedicated I/O includes counters, accurate timestamps, high-speed interrupt outputs, and serial links.

trait

The Modicon 140CPU67160 has several features. It has an LCD monitor covered by a lens cap. Behind the lens cover are key switches, batteries, and reset buttons. The standard configuration of this CPU is a 2-line 16-character LCD. It also has variable backlight status and contrast. The keyboard has five keys that map to hardware addresses. There are two arrow keys, each including an LED. One of the module's lifesaving features is automatic backlighting. The keyboard driver automatically turns on the backlight when it detects a key. It will turn off automatically after 5 minutes. If an error is detected, the backlight stays on. This unit has a Modbus port and a USB port, as well as a PCMCIA slot. There are Ethernet communication indicators and an Ethernet port for HSBY CPUs fiber communication). It has a battery and a reset button.

The Schneider Electric 140CPU67160 is manufactured for mounting on a backplane.

advantage

The 140CPU67160 features a variety of connectivity options, including one USB port, two distributed as interfaces, four remote AS interfaces, six local Modbus Plus connections, six local Profibus DP connections, one Modbus connector, and six local Ethernet TCP/IP connections. It has six optional modules including Ethernet, Modbus, Modbus Plus, Profibus, DP and Sy/Max. With a range of modules, the processor is highly adaptable and flexible and can be used to meet your requirements and specifications.

Another component of such a processor is its memory capacity. It has 1024 kB and 512 kB of internal RAM dedicated to data. In addition, the 140CPU67160 has a scalable file storage capacity of 8 MB via the PCMCIA card. It also has 7168 kB of expand program storage capacity with a PCMCIA card. When you need to store multiple files and programs, this processor can protect your data and information. The processor has a convenient key switch that allows you to turn the storage function on and off easily.

>>>>>型號:140CPU67160 無算術協處理器 具有多模以太網的 Unity 熱備用處理器
