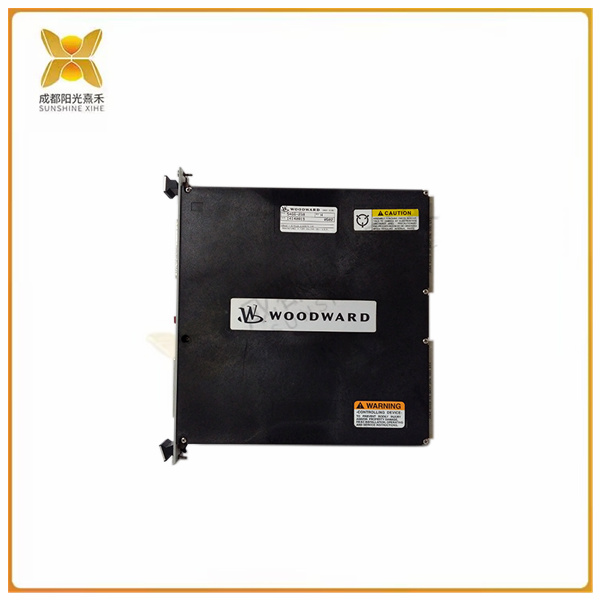

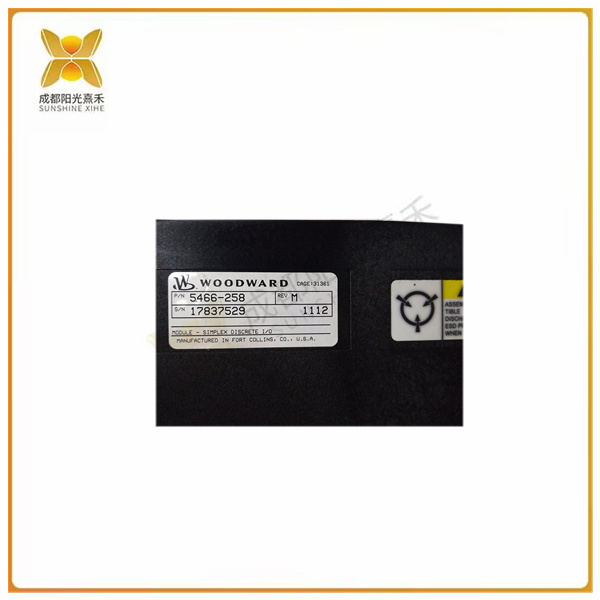

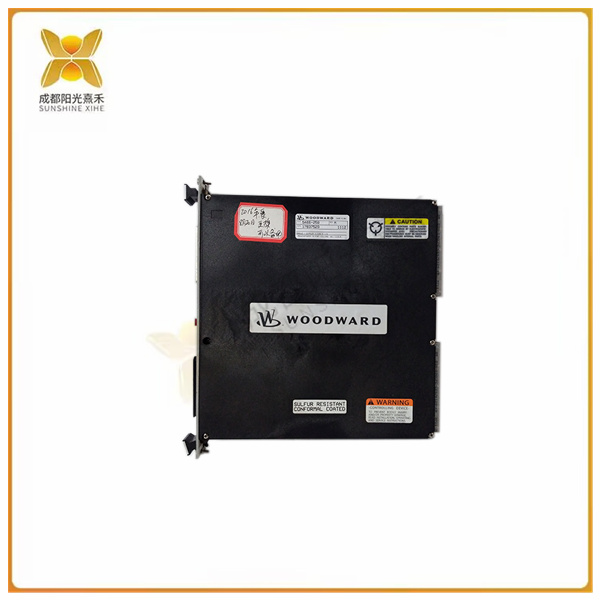

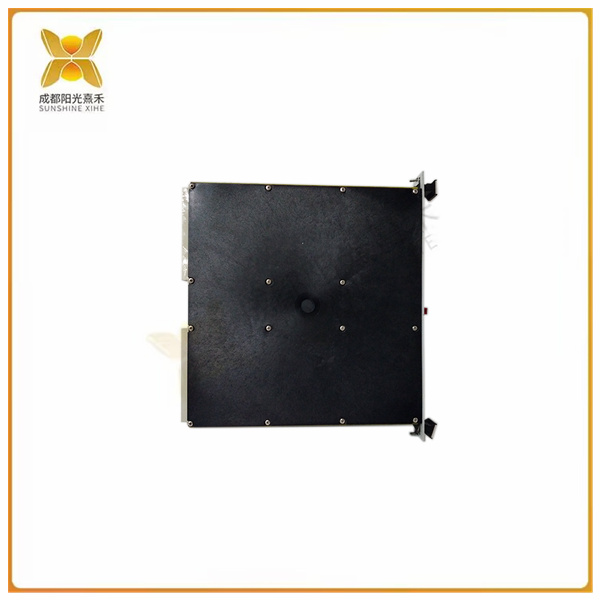

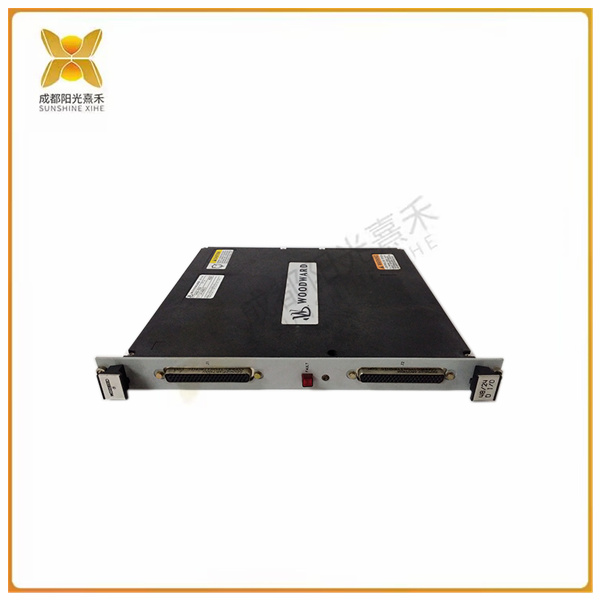

>>>>>型號:5466-258 單工離散輸入/輸出單元 可用于任何機箱模塊

【功能描述】

5466-258 模塊是單工離散輸入/輸出單元。該裝置由伍德沃德生產，是 MicroNet 數字控制系列的一部分，該系列也可與 Vertex-Pro 機箱一起使用。本機使用的典型硬件是 MicroNet Plus 硬件。該模塊可用于單工和冗余系統。該模塊可用于任何機箱模塊，無論是 8 個插槽還是 14 個插槽。請注意，該裝置的位置必須是非危險的或在 I 類 2 區 A、B、C 和 D 組內。

5466-258 模塊是一個 48/24 離散組合模塊，這表明有 48 個輸入和 24 個輸出。該模塊有兩種配置可供使用。其中一個將由兩個 24/12 個離散 FTM 組成，它們將通過兩根高密度離散/模擬電纜連接到該模塊。該模塊上的離散輸入將采用光學隔離，在第二種配置中時，可以通過 24/12 個 FTM 訪問。

 >>>>>型號:5466-258 單工離散輸入/輸出單元 可用于任何機箱模塊

【英文介紹】

The 5466-258 module is a simplex discrete input/output unit. The unit is manufactured by Woodward and is part of the MicroNet digital control family, which is also available with Vertical-Pro cases. The typical hardware used on this unit is MicroNet Plus hardware. The module can be used in simplex and redundant systems. The module can be used with any chassis module, whether it is 8 slots or 14 slots. Please note that the location of the device must be non-hazardous or within groups A, B, C, and D of Class I 2 zones.

The 5466-258 module is a 48/24 discrete combination module, which means that there are 48 inputs and 24 outputs. The module is available in two configurations. One of these will consist of two 24/12 discrete FTMS that will be connected to the module via two high-density discrete/analog cables. The discrete inputs on this module will be optically isolated and, in the second configuration, accessible through 24/12 FTMS.

>>>>>型號:5466-258 單工離散輸入/輸出單元 可用于任何機箱模塊
