>>>>>型號:1797-IE8 檢測警報情況

【功能描述】

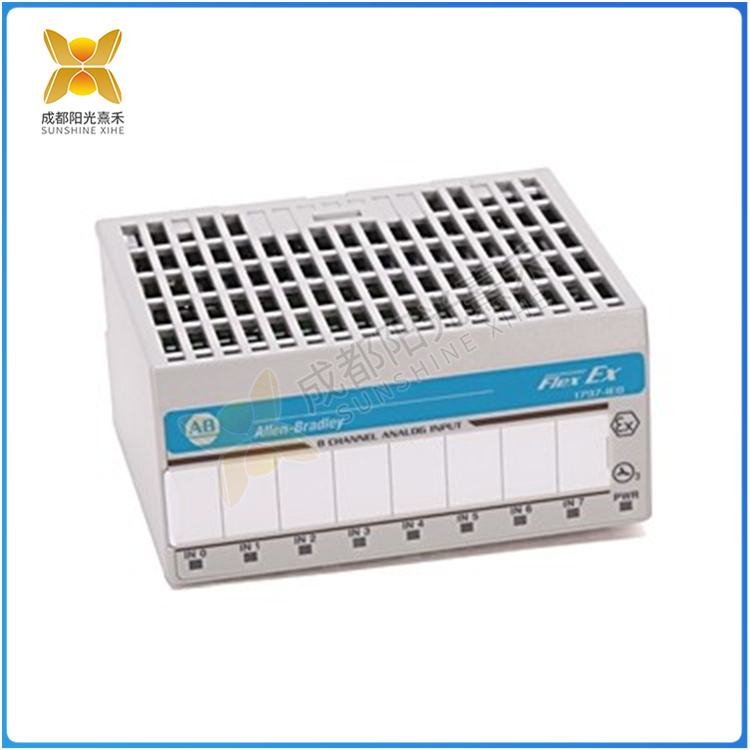

1797-IE8是一款模擬量輸入模塊

具有八（8）個非隔離的模擬輸入通道，能夠接收分辨率為16位的0-20mA和4-20mA信號。它能夠?qū)⒛M數據轉換為具有可配置數據格式的數字?jǐn)?shù)據，并在內部進行更新。該模塊在20°C（68°F）時的精度為輸出信號范圍的0.1％，溫度漂移為輸出信號范圍的0.05％/℃。該模塊的更新速度約為200毫秒，最壞的更新時間約為1600μs，實際更新速率取決于模塊與通訊適配器的距離。
此外，1797-IE8具有內部診斷功能，能夠檢測警報情況，例如引線斷裂檢測、超量程/欠量程警報和遠程變送器警報。該模塊需要相等額定值的端子座，并兼容的終端基座包括1797-TB3或1797-TB3S。其建議的絕緣厚度為1.2毫米（3/64英寸）。

>>>>>型號:1797-IE8 檢測警報情況

【英文介紹】

The 1797-IE8 is an analog input module

 with eight (8) non-isolated analog input channels capable of receiving 0-20mA and 4-20mA signals with 16-bit resolution. It is capable of converting analog data into digital data with a configurable data format and updating it internally. The module has an accuracy of 0.1% of the output signal range at 20°C (68°F) and a temperature drift of 0.05% / °C of the output signal range. The module's update speed is about 200 milliseconds, with the worst update time being about 1600μs, and the actual update rate depends on the distance of the module from the communication adapter.
In addition, the 1797-IE8 has an internal diagnostic function capable of detecting alarm conditions such as lead break detection, over/under range alarms, and remote transmitter alarms. The module requires equal rated terminal blocks and compatible terminal bases including 1797-TB3 or 1797-TB3S. The recommended insulation thickness is 1.2 mm (3/64 inch).

>>>>>型號:1797-IE8 檢測警報情況
